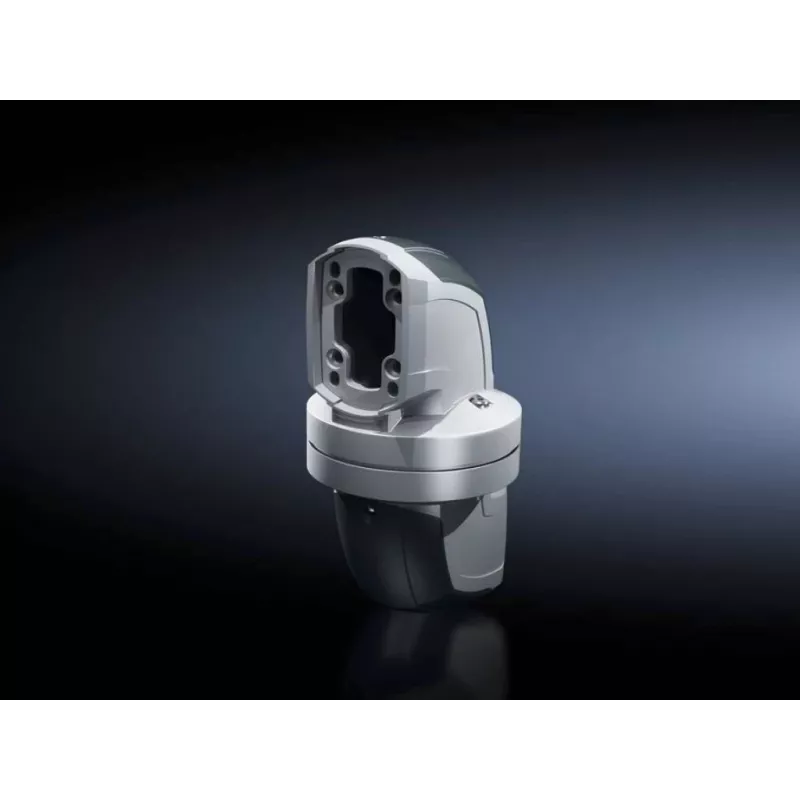

Rittal CP System 120 unión articulada, aluminio fundido a presión, gris claro (RAL 7035), para sistemas de brazo de soporte, 6212.620

In a busy control room, an operator adjusts the position of a suspended control panel to reduce glare and improve ergonomics. The Rittal CP System 120 articulated joint enables smooth, controlled rotation of the support arm, keeping cables neatly managed and the panel securely in place. This die-cast aluminium joint with plastic covers in light grey (RAL 7035) is engineered for reliable performance in industrial environments.

Key specifications

• Product type: Articulated joint / swivel joint
• System compatibility: Rittal CP System 120
• Housing material: Die-cast aluminium
• Cover/caps material: Plastic
• Colour: Light grey (RAL 7035)
• Protection category: IP 54 (to IEC 60 529)
• Rotation range: 330°
• Max. torque: 10 Nm
• Mounting type: For connection to CP System 120 support arm sections
• Adjustment: Adjustable friction
• Cable management: Integrated
• Design: With cable entry/exit points
• Environmental conditions: Indoor use

Why choose it

The Rittal CP System 120 articulated joint offers precise positioning with adjustable friction, allowing operators to set the desired resistance for smooth movement. Its die-cast aluminium construction ensures durability, while the integrated cable management keeps wiring protected and organized. The IP 54 rating guards against dust and water splashes, making it suitable for demanding industrial settings.

Ideal use cases

• Control panel support arm systems in manufacturing plants
• Machine tool operator stations requiring adjustable panel positioning
• Industrial enclosures where cable routing and protection are critical
• Ergonomic workspaces needing frequent panel repositioning

Good to know

This joint is designed exclusively for the Rittal CP System 120 and connects directly to support arm sections. It allows a 330° rotation range with a maximum torque of 10 Nm. The light grey RAL 7035 finish matches standard Rittal enclosures, providing a cohesive look. Installation is straightforward, and the adjustable friction mechanism can be tuned to user preference.
