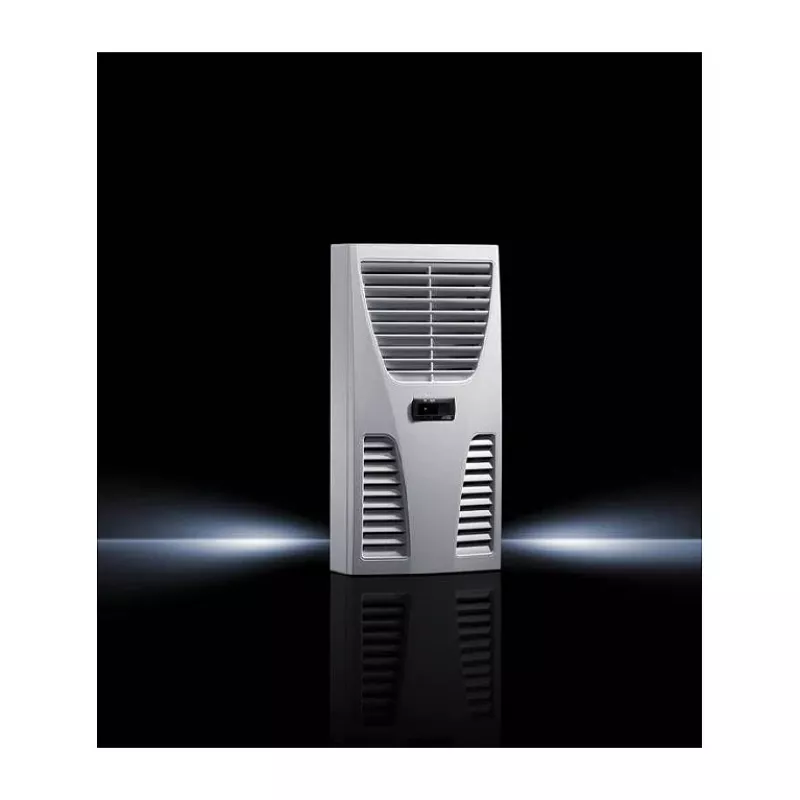

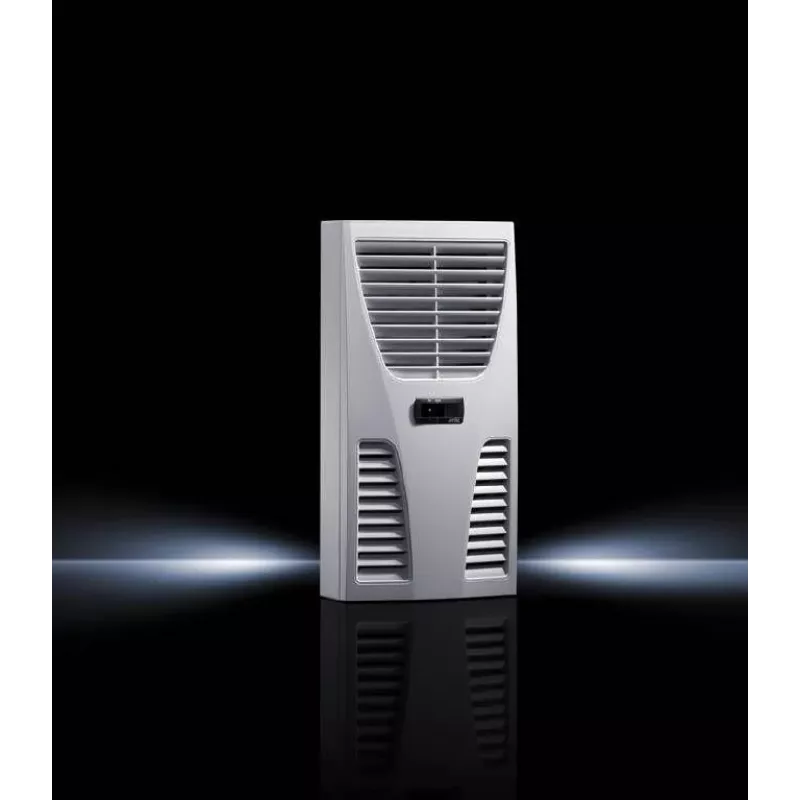

Rittal TopTherm refrigerador de pared 0,30 kW

Overheating inside enclosures can lead to premature component failure and costly downtime. The Rittal TopTherm wall-mounted cooling unit with 0.30 kW capacity actively removes heat from sealed enclosures, maintaining a stable internal climate even in demanding industrial environments. Its compact design and integrated condensate evaporation make it a reliable solution for protecting sensitive electronics.

Who is it for

This cooling unit is ideal for control cabinet builders, machine manufacturers, and facility managers who need efficient thermal management for small to medium enclosures. It suits applications in automation, packaging, and process industries where ambient temperatures reach up to +55 °C.

Main features

• Cooling capacity of 0.30 kW (L35/L35) for dependable heat dissipation.
• Wall-mounted design saves floor space and simplifies installation.
• Integrated condensate evaporation eliminates the need for drainage.
• Nano-coated condenser resists dirt and corrosion, extending service life.
• Protection ratings IP 34 (external) and IP 54 (internal) ensure durability.
• Operates on standard 230 V single-phase power.

Specifications

• Cooling capacity: 0.30 kW (300 W)
• Rated voltage: 230 V, 1~, 50 Hz
• Rated current: 1.9 A
• Starting current: 4.5 A
• Power consumption: 0.4 kW
• Refrigerant: R134a, 150 g
• Operating temperature range: +10 °C to +55 °C
• Sound pressure level: 62 dB(A)
• Material: Sheet steel, colour RAL 7035 (light grey)
• Dimensions (W x H x D): 280 x 550 x 135 mm

Tips

For optimal performance, ensure adequate clearance around the unit for airflow and regularly inspect the nano-coated condenser for dust accumulation. Mount the unit on a flat, vibration-free surface and verify that the enclosure is properly sealed to maintain the internal IP 54 protection.
