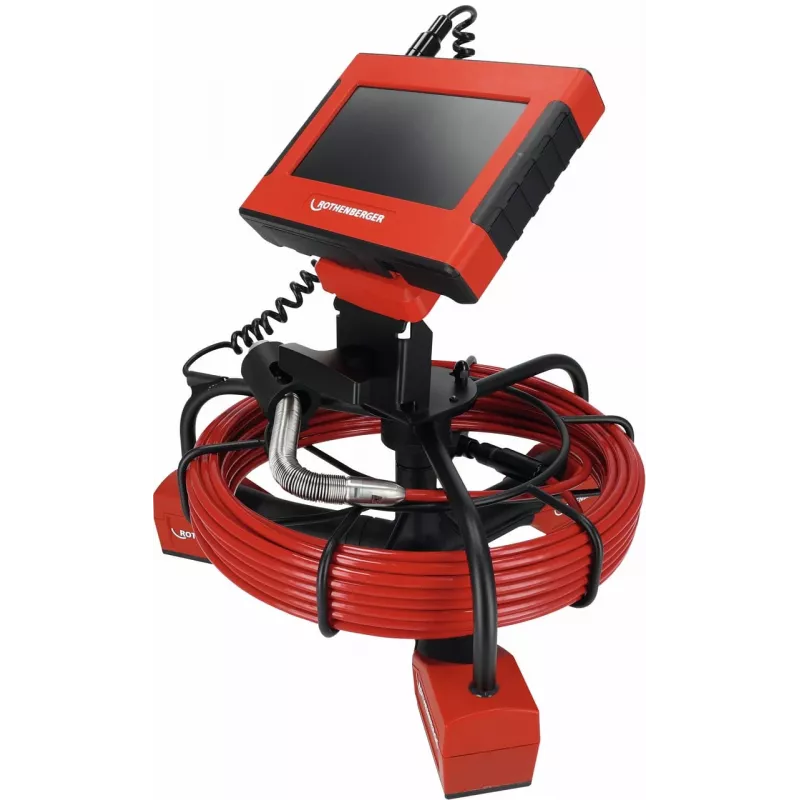

Rothenberger ROCAM mini HD Set de cámara de inspección con cabezal de cámara de 25 mm, cable de 22 m, monitor de 7 inch, grabación SD

Plumbing and drainage inspections often mean guessing what lies behind walls or deep inside pipes. The Rothenberger ROCAM mini HD Inspection Camera Set removes that guesswork with a professional-grade system built for clear visuals in tight, dark spaces. The 25 mm self-levelling camera head delivers upright HD images, while 12 adjustable LEDs illuminate the darkest pipe runs. A 22 m push cable with a 7 mm diameter navigates bends and traps with ease, and the 7-inch TFT colour monitor with digital meter counter lets you pinpoint exact locations. Record photos and videos to SD card, transfer via USB or HDMI, and carry everything in the included ROTHENBERGER system case.

Who is it for

This set is ideal for plumbers, drain technicians, building inspectors, and maintenance crews who need to inspect pipes, ducts, chimneys, and cavities from 50 mm to 200 mm in diameter. Whether you're locating blockages, verifying pipe integrity, or documenting findings for clients, the ROCAM mini HD provides reliable, high-resolution evidence.

Main features

• HD camera head (1280 x 720) with 25 mm diameter and IP68 waterproof rating
• Self-levelling image keeps the picture upright regardless of camera rotation
• 12 adjustable LEDs for optimal illumination in dark pipes
• 22 m push cable with 7 mm diameter for flexibility and long reach
• 7-inch TFT colour monitor with 800 x 480 resolution and digital meter counter
• Photo and video recording to SD card (up to 32 GB, not included)
• USB and HDMI outputs for easy transfer and viewing on external displays
• Integrated 512 Hz transmitter for location detection with compatible receivers
• Powered by Li-Ion battery (up to 6 hours) or mains adapter
• Supplied in a durable ROTHENBERGER system case for transport and storage

Specifications

• Camera head diameter: 25 mm
• Cable diameter: 7 mm
• Cable length: 22 m
• Image resolution: HD 1280 x 720 pixels
• Display: 7-inch TFT colour, 800 x 480 pixels
• Camera features: self-levelling, 12x adjustable LED illumination
• Waterproof rating (camera head): IP68
• Storage: SD card up to 32 GB
• Connectivity: USB, HDMI
• Power supply: Li-Ion battery / mains adapter
• Battery operating time: up to 6 hours
• Operating temperature: -10°C to 50°C
• Recording: photo and video
• Digital meter counter: yes
• Integrated transmitter: 512 Hz
• Suitable pipe diameter: Ø 50 - 200 mm
• Case: ROTHENBERGER system case

Tips

For best results, clean the camera head after each use and store the cable coiled loosely in the system case. Use the digital meter counter to mark points of interest for accurate reporting. When inspecting vertical pipes, feed the cable slowly to avoid kinking. The self-levelling feature works automatically, but you can adjust LED brightness to reduce glare in reflective pipes.
