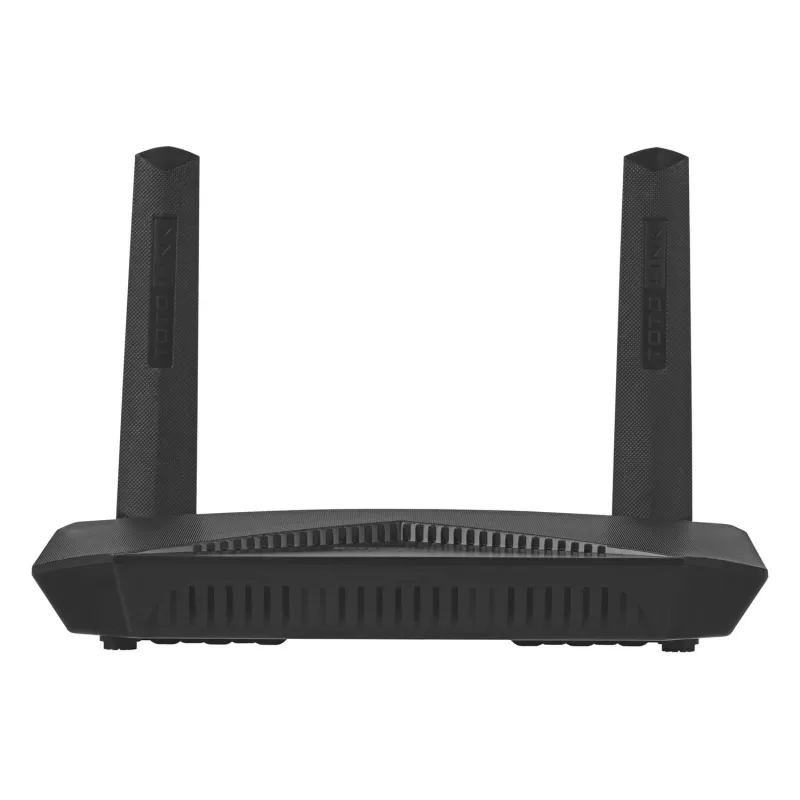

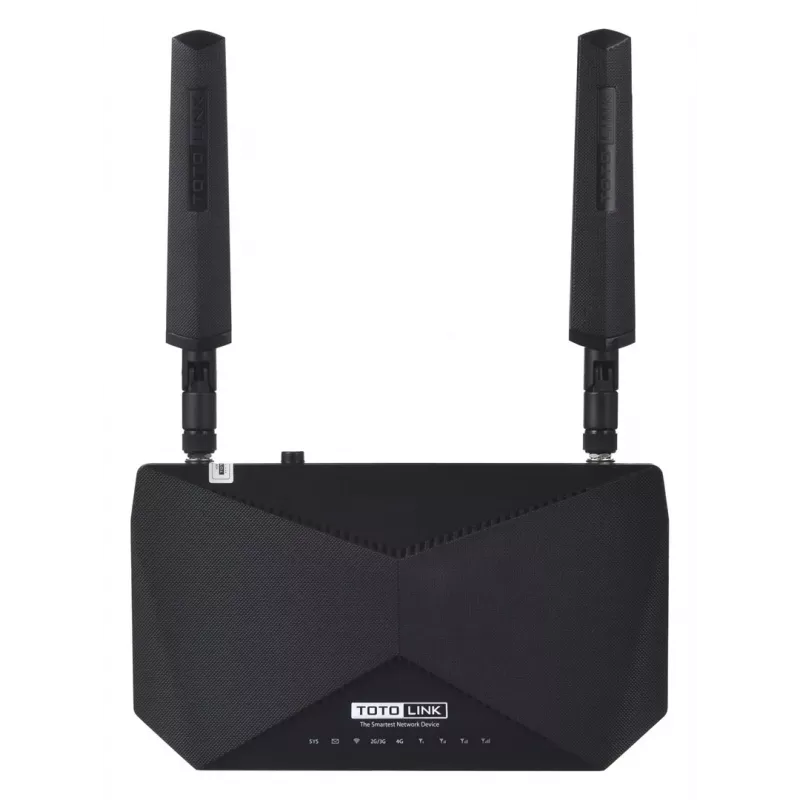

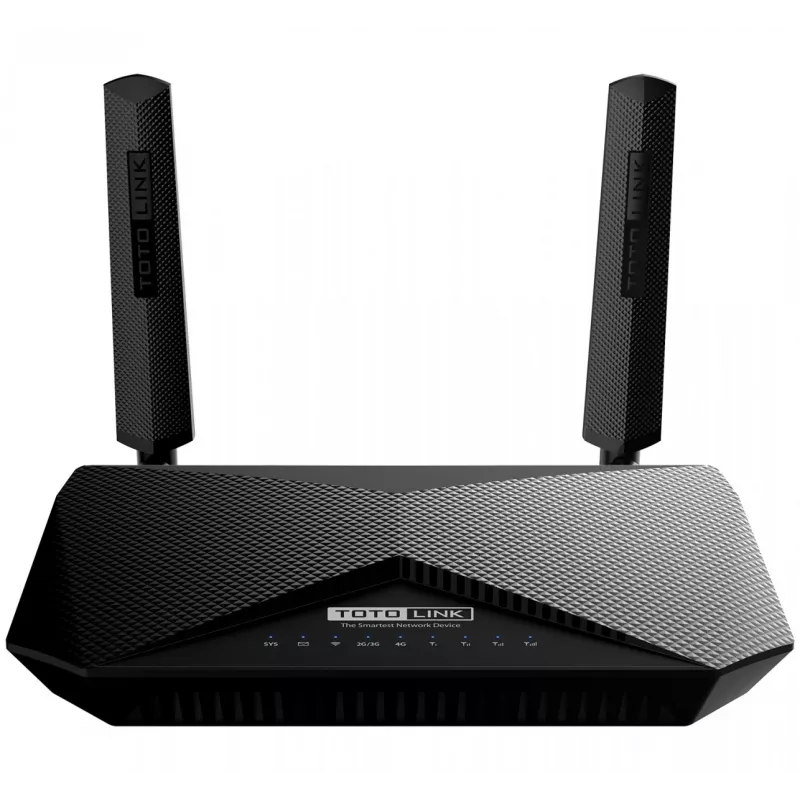

Router TOTOLINK LR1200

The TOTOLINK LR1200 is a dual-band Wi‑Fi 5 (802.11ac) router with integrated 4G support, designed to provide stable internet access at home or in a small office. It delivers combined wireless speeds up to 1167 Mbit/s and offers a WAN RJ‑45 interface plus four Fast Ethernet LAN ports. The LR1200 includes a built-in 4G modem for mobile network connectivity when fixed-line service is unavailable, and its black ABS housing provides a compact, durable form factor.

Advantages

The router combines dual-band Wi‑Fi performance and an integrated 4G modem, enabling internet access via mobile networks or through the WAN port from cable, fiber or DSL modems. Advanced LTE antennas and signal amplifiers improve sending and receiving sensitivity to extend Wi‑Fi coverage. Flexible network settings allow using 4G for wireless connections while providing wired internet over the RJ‑45 LAN ports. Four Fast Ethernet LAN ports support wired devices and local network stability.

Suitable for

• Homes without a fixed internet provider or with unreliable broadband
• Small offices requiring backup or alternative internet via 4G
• Users who need both wired Ethernet and dual-band Wi‑Fi connectivity
• Environments where wider Wi‑Fi coverage is needed

Key specifications

• Wireless standard: Wi‑Fi 5 (802.11ac), dual-band
• Maximum wireless speed: up to 1167 Mbit/s (combined)
• Built‑in 4G modem for mobile network connectivity

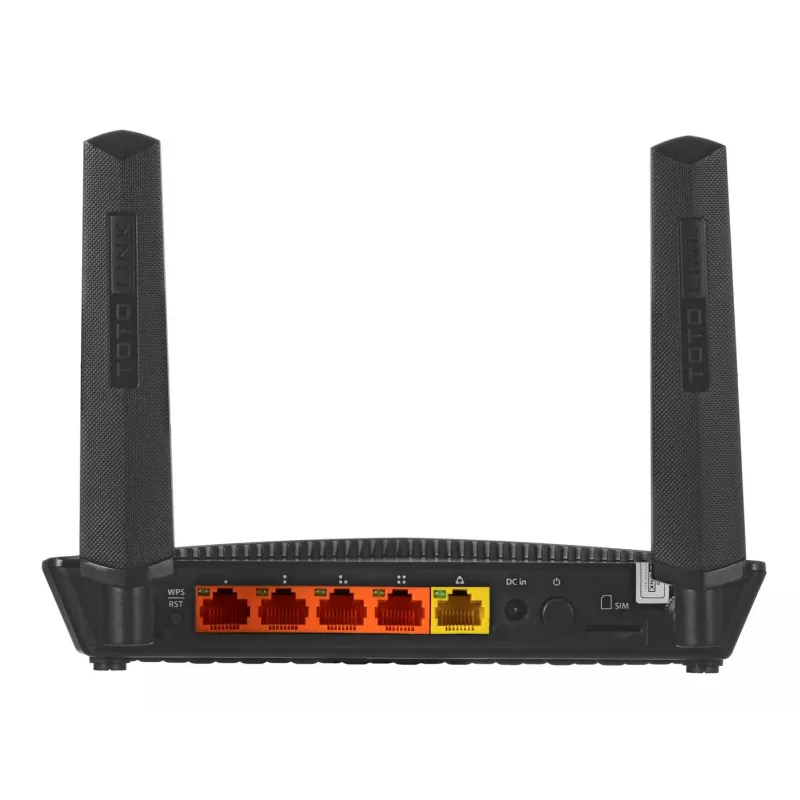

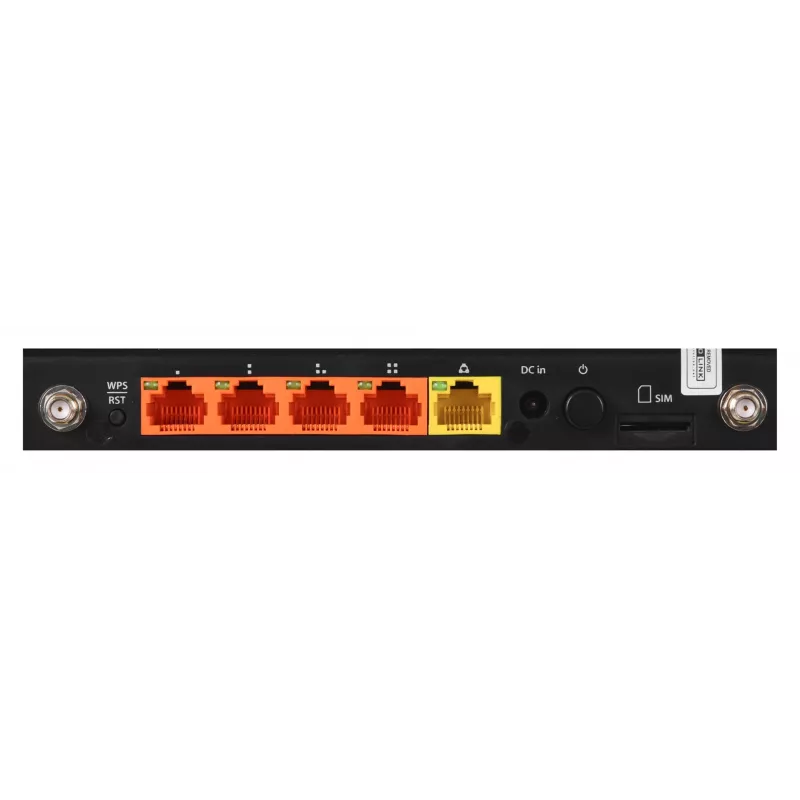

• WAN: RJ‑45 interface; LAN: 4 x Fast Ethernet (RJ‑45) ports
• Product colour: Black; housing: ABS

How to use

Install the router in a central location to maximise Wi‑Fi coverage and connect the power adapter. For mobile network access insert a compatible 4G SIM card into the router according to the user manual and allow the device to register on the mobile network. To use a fixed-line connection, connect the modem or internet source to the RJ‑45 WAN port and configure the WAN settings through the web-based setup page or mobile app. Connect wired devices to the four LAN ports. Adjust wireless SSID and security settings to complete the setup.

Recommendations

Place the router away from large metal objects and sources of interference (microwaves, cordless phones). For best 4G reception and maximum Wi‑Fi coverage, position antennas vertically and, if possible, near a window. Regularly update firmware and use WPA2/WPA3 security to protect the network.
