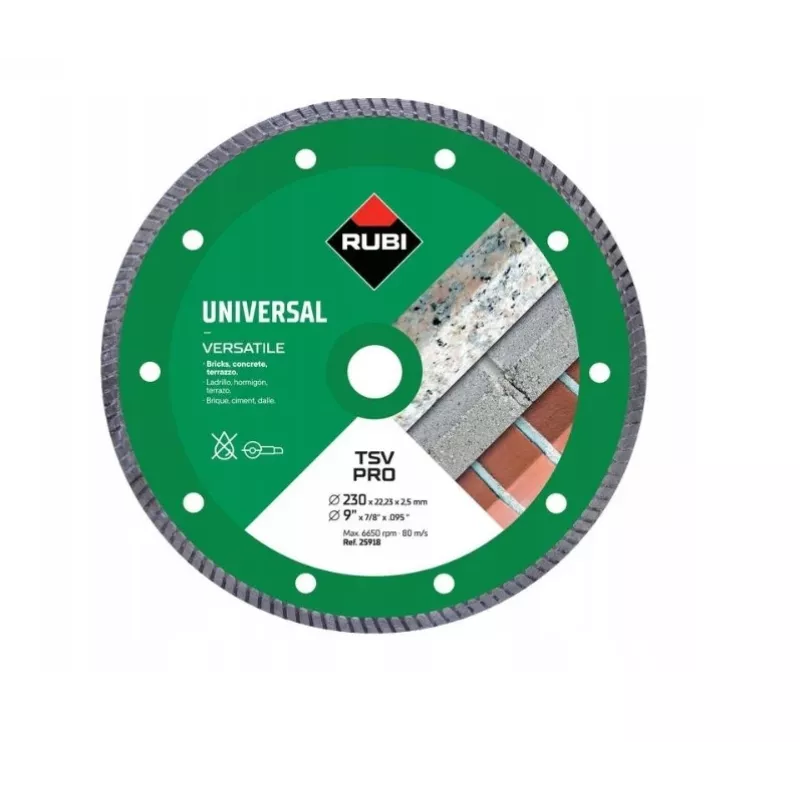

RUBI Disco de corte diamantado TSV 230 PRO 230mm

The RUBI TSV 230 PRO is a high-performance segmented diamond blade designed for fast, dry cutting of general building materials. With a 230 mm diameter and 22.23 mm bore, this sintered blade delivers excellent durability and cutting speed on concrete, brick, block, and stone. Ideal for use with angle grinders and electric cutters, it meets EN 13236 safety standards.

Advantages

High cutting speed, good durability, and medium-hard diamond bond for abrasive materials. The segmented design ensures efficient debris removal and reduced overheating during dry cutting.

Suitable for

• Concrete, brick, block, and stone
• General construction and renovation
• Angle grinders and electric cutters

Key specifications

• Blade Type: Segmented Diamond Blade
• Cutting Method: Dry Cutting
• Diameter: 230 mm
• Bore Diameter: 22.23 mm
• Segment Height: 7 mm
• Segment Thickness: 2.6 mm
• Max Rotational Speed: 6650 RPM
• Series: PRO
• Manufacturing Process: Sintered
• Safety Standard: EN 13236
• Core Material: Steel

Recommendations

For optimal performance, use with a suitable angle grinder rated for 230 mm blades. Always follow safety guidelines and wear appropriate personal protective equipment.
