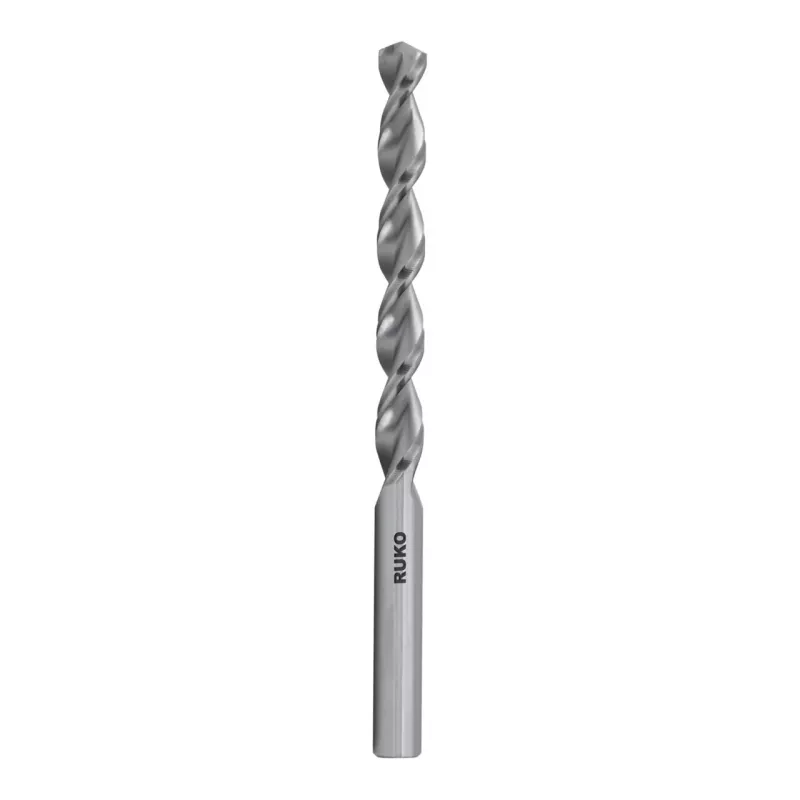

Broca helicoidal RUKO SPB-TL3000 9,0 mm DIN338 HSS-G

Precision ground from high-speed steel to DIN 338, this 9.0 mm twist drill bit delivers clean, accurate holes in steel up to 900 N/mm² tensile strength. The bright, uncoated surface reduces friction and heat build-up, while the 118° point angle and right-hand cutting geometry ensure fast chip evacuation and long tool life.

Overview

The RUKO SPB-TL3000 is a professional-grade twist drill bit engineered for reliable performance in a wide range of materials. Its cylindrical shank fits standard drill chucks, and the h8 tolerance guarantees consistent diameter for precise holes. The standard helix flute design provides excellent rigidity and efficient swarf removal, making it suitable for both hand-held and stationary drilling machines.

What stands out

• Ground from high-speed steel (HSS-G) for superior hardness and wear resistance.
• Conforms to DIN 338, ensuring compatibility with standard drilling equipment.
• Bright finish reduces friction and improves chip flow.
• 118° point angle optimised for general-purpose drilling in metal, wood, and plastics.
• Right-hand cutting direction for conventional clockwise rotation.

Technical details

• Diameter: 9.0 mm
• Overall length: 125 mm
• Working length: 81 mm
• Shank type: Cylindrical
• Shank diameter: 9.0 mm
• Point angle: 118°
• Cutting direction: Right-hand
• Surface finish: Bright / Uncoated
• Manufacturing process: Precision Ground (G)
• Tolerance: h8
• Recommended materials: Steel, cast iron, non-ferrous metals, plastics, wood
• Maximum tensile strength: 900 N/mm²

Our verdict

A dependable, precision-ground twist drill bit that meets DIN 338 standards. Ideal for workshops and demanding drilling tasks where accuracy and durability are essential.
