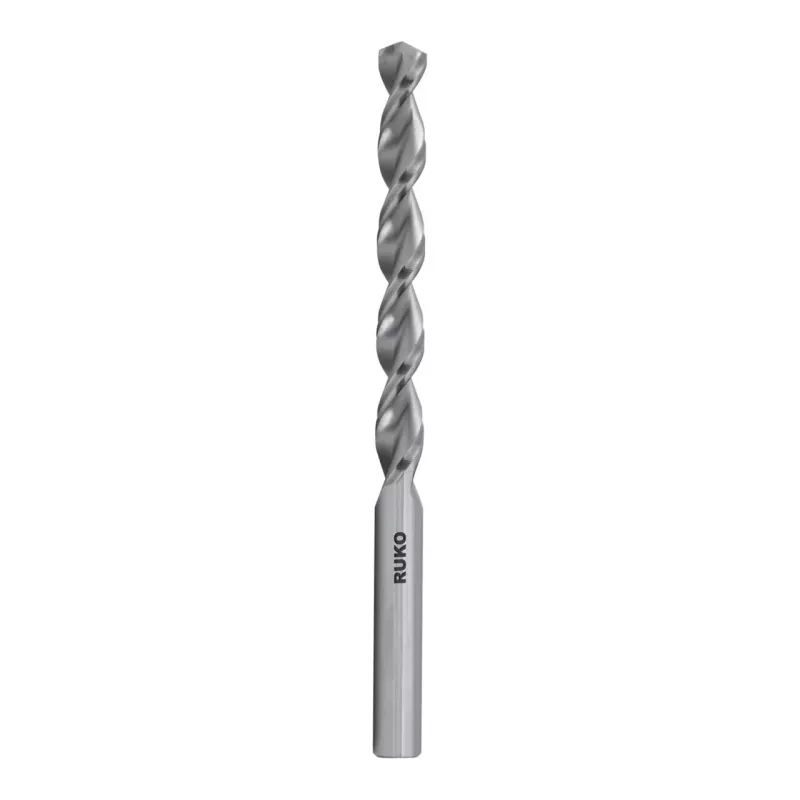

Broca helicoidal RUKO SPB-TL3000 HSS-G 14,0 mm DIN 338

Twist drill bit with a 14.0 mm diameter, ground from high-speed steel (HSS-G) for reliable drilling in metal and other materials. The DIN 338 standard ensures consistent geometry and a 118° point angle for efficient cutting.

Advantages

Ground flutes provide smooth chip evacuation and precise hole quality. The bright finish reduces friction and improves durability. Suitable for a wide range of materials including steel, cast iron, non-ferrous metals, plastics, and wood.

Suitable for

• Steel and cast iron
• Non-ferrous metals
• Plastics
• Wood

Key specifications

• Diameter: 14.0 mm
• Total length: 169 mm
• Working length: 114 mm
• Shank type: cylindrical
• Shank diameter: 14.0 mm
• Point angle: 118°
• Cutting direction: right-hand
• Tolerance: h8
• Material: HSS-G
• Standard: DIN 338

Recommendations

Use with appropriate cutting fluid for best results in metal. Ensure the drill is securely chucked and operate at recommended speeds for the material.
