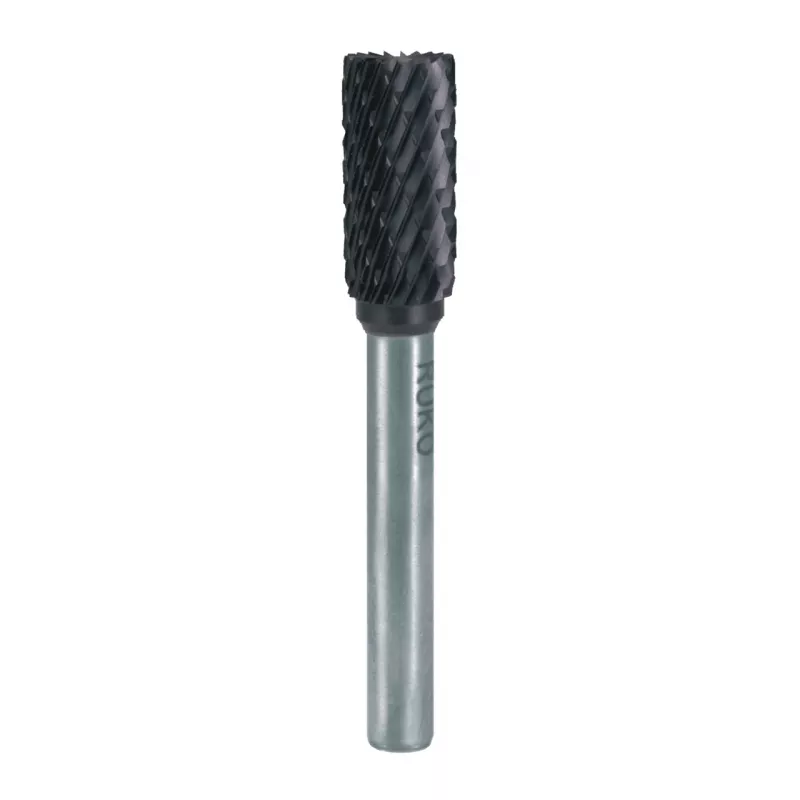

Fresa de mango de metal duro RUKO FRS-DIN8033-HM-TiAlN Ø10,0 mm

With a 10.0 mm cutting diameter and TiAlN coating, this solid carbide end mill delivers high-performance milling across steel, stainless steel, cast iron, and non-ferrous metals.

Overview

The RUKO GMBH FRS-DIN8033-HM-TiAlN Ø10.0mm is a solid carbide end mill engineered to DIN 8033 standards. Its TiAlN (Titanium Aluminum Nitride) coating provides excellent wear resistance and high heat resistance, enabling both wet and dry machining. The tool features a 30° helix angle and center cutting geometry, making it suitable for roughing and finishing operations in universal machining applications.

What stands out

• Solid carbide construction for rigidity and long tool life
• TiAlN coating for high heat and wear resistance
• 4 flutes with 30° helix angle for efficient chip evacuation
• Cylindrical shank with h6 tolerance for precise clamping

Technical details

• Cutting diameter: 10.0 mm
• Shank diameter: 10.0 mm
• Overall length: 72 mm
• Cutting length: 22 mm
• Number of flutes: 4
• Helix angle: 30°
• Shank type: Cylindrical (HA)
• Diameter tolerance: h6
• Standard: DIN 8033
• Coating: TiAlN
• Material: Solid Carbide (VHM)

Our verdict

A reliable high-performance end mill for demanding milling tasks in a wide range of materials.
