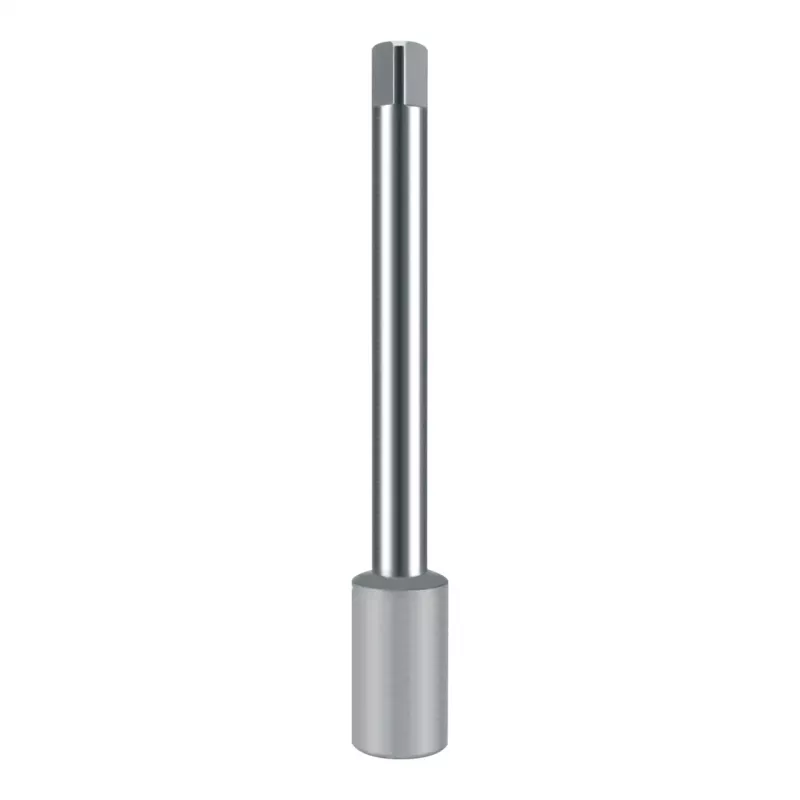

RUKO GmbH prolongador de brocas DIN 377, 9,0 mm, cono Morse 1

Extending the reach of your 9.0 mm DIN 377 drill bits can be a challenge when working in deep or confined spaces. The RUKO GmbH Verlängerung-DIN377-9,0mm solves this by providing a secure, precise connection that maintains concentricity and durability.

Who is it for

Professional machinists, metalworkers, and industrial users who need to extend their drilling capabilities without sacrificing accuracy or tool life.

Main features

• Compatible with 9.0 mm drill bits conforming to DIN 377
• Morse Taper 1 (MT1) connection on both ends for reliable taper fit
• Ground and polished high-grade tool steel for wear resistance and corrosion resistance
• Overall length of 150 mm for extended reach
• High concentricity ensures accurate drilling

Specifications

• Product type: Drill Bit Extension
• Compatible drill bit diameter: 9.0 mm
• Compatible drill bit standard: DIN 377
• Drill bit connection (socket): Morse Taper 1 (MT1)
• Machine connection (shank): Morse Taper 1 (MT1)
• Overall length: 150 mm
• Material: High-grade Tool Steel
• Finish: Ground and Polished
• Colour: Metallic Grey
• System: Metric
• Intended use: Professional and industrial

Tips

Ensure both tapers are clean and free of debris before assembly to maintain accuracy. Apply a light coat of machine oil to prevent corrosion during storage.
