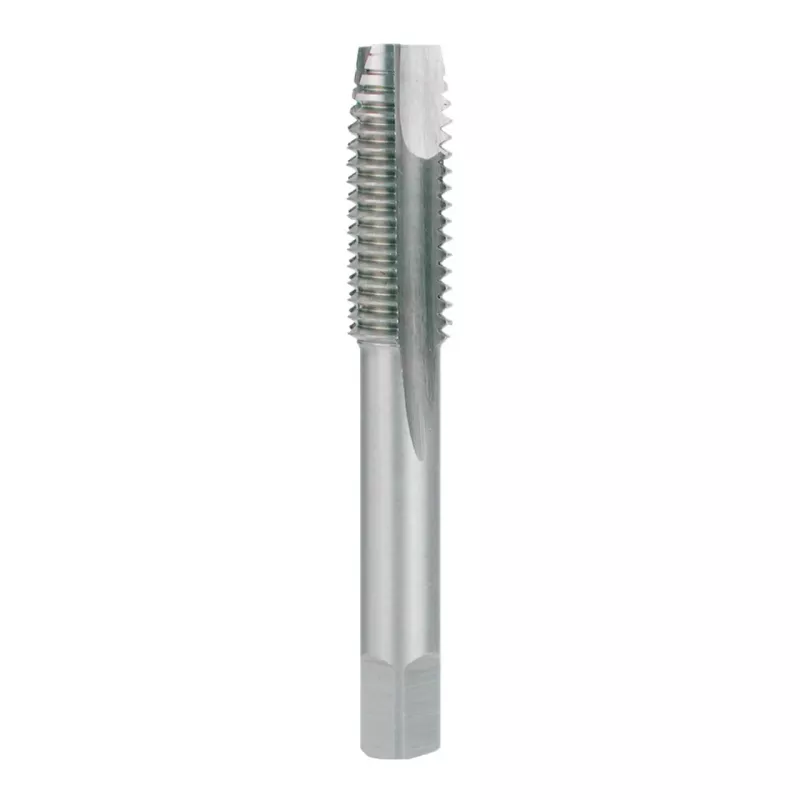

RUKO 231080E macho de roscar de una entrada M8

RUKO 231080E – Single-cut tap. For cutting internal threads.

• Product type: Single-cut tap
• Manufacturer article number: 231080E
• SAP article number: 1000024491
• Thread size: M8
• Thread angle: 60°
• Material: HSS-Co 5
• Coating: Uncoated
• Cutting direction: Right-hand
• Tolerance: ISO 2 6H
• DIN standard: 352
• Thread pitch: 1,25 mm
• Recommended core hole diameter: 6.8 mm
• Tool length: 56.0 mm
• Flute length: 18.0 mm
• Net weight of the product: 15 g

Dimensions and net weight above describe the product; they do not establish shipping dimensions or gross weight with packaging.
