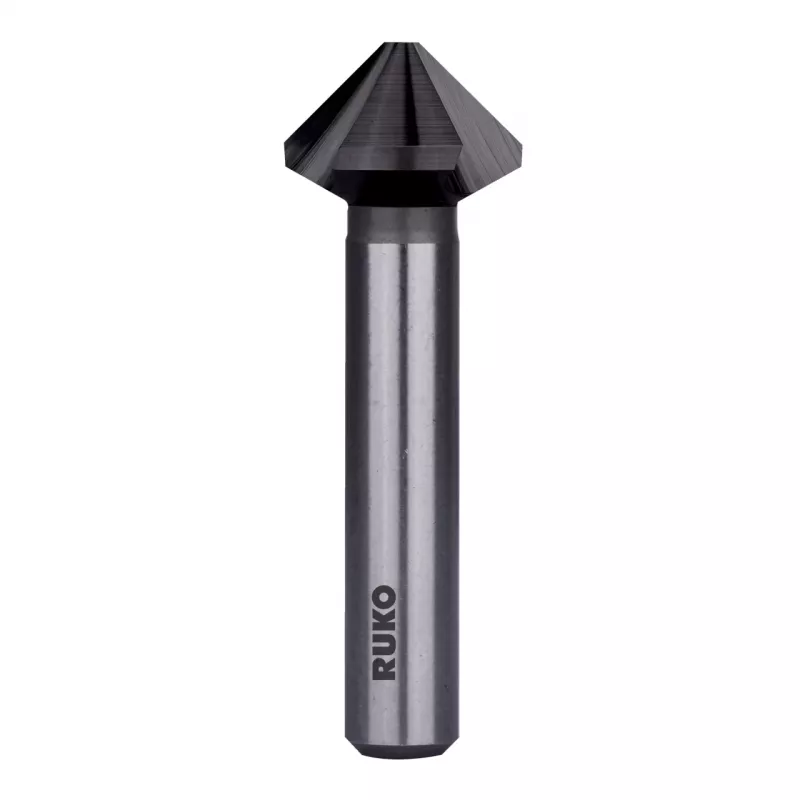

RUKO avellanador cónico DIN 335 C HSS TiAlN 90° Ø23,0 mm

Machinists and metalworkers use this RUKO countersink to create precise 90° chamfers and deburr holes in steel, cast iron, non-ferrous metals, and plastics. The TiAlN coating reduces friction and heat, extending tool life in demanding production environments.

Key specifications

• Type: Countersink
• Standard: DIN 335 C
• Cutting diameter: 23.0 mm
• Angle: 90°
• Material: High-Speed Steel (HSS)
• Coating: Titanium Aluminum Nitride (TiAlN)
• Shank type: Cylindrical
• Shank diameter: 10 mm
• Total length: 65 mm
• Number of flutes: 3
• Direction of cut: Right-hand
• Applications: Deburring, chamfering, countersinking
• Recommended materials: Steel, cast iron, non-ferrous metals, plastics
• Manufacturing process: Ground profile
• Packaging unit: 1 piece

Why choose it

The TiAlN coating provides high hardness and thermal stability, allowing higher cutting speeds and longer intervals between regrinds. The three-flute design ensures smooth, chatter-free countersinking, while the cylindrical shank fits standard drill chucks and collet chucks.

Ideal use cases

• Countersinking holes for flat-head screws in machine construction
• Deburring drilled holes in steel and cast iron components
• Chamfering edges on non-ferrous metal parts
• Preparing plastic workpieces for assembly

Good to know

The countersink is manufactured to DIN 335 C, ensuring consistent geometry and compatibility with standard tooling. It is supplied as a single piece.
