RUKO cono portabrocas MT3 a B16 para portabrocas de 16mm

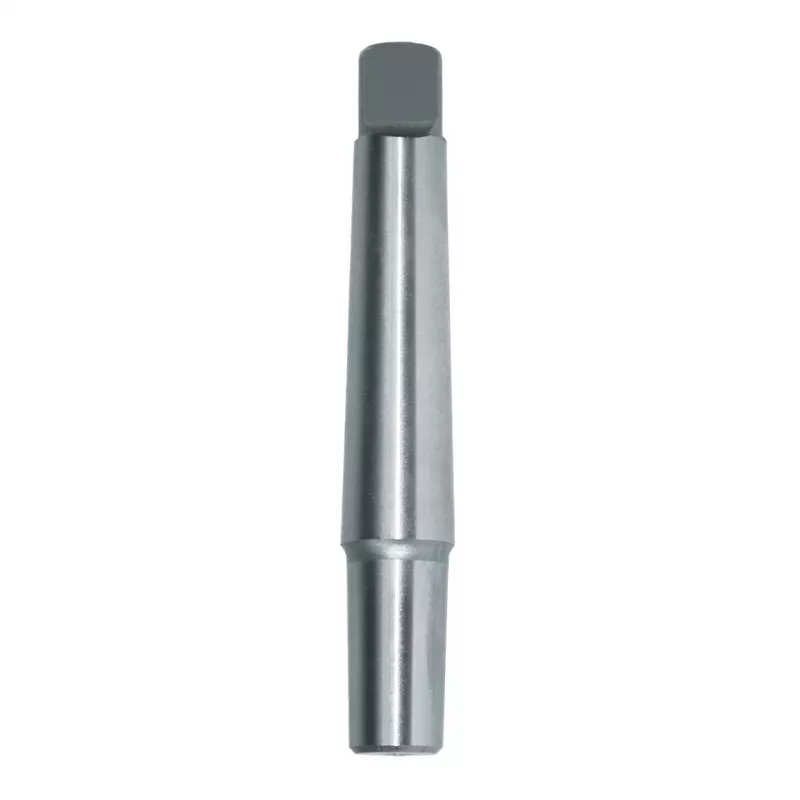

This RUKO GMBH drill chuck arbor provides a rigid, self-holding connection between a Morse Taper MT3 machine spindle and a B16 taper-bore drill chuck. Its hardened and ground tool steel construction delivers the concentricity that professional workshops demand when mounting 16mm drill chucks.

Highlights

• Machine side: Morse Taper MT3 (MK3)
• Chuck side: B16 taper
• High-grade tool steel, hardened and ground
• Self-holding taper with tang drive for secure mounting
• Precision ground surface, lightly oiled for corrosion protection

In daily use

The arbor seats firmly in the spindle taper and the chuck taper, transmitting torque without slippage. The tang engages the spindle slot to prevent rotation during heavy drilling, while the drift slot allows easy removal with a standard drift key.

Full specifications

• Product type: Drill Chuck Arbor
• Machine taper standard: Morse Taper (MT)
• Machine taper size: MT3 (MK3)
• Chuck taper standard: B Taper
• Chuck taper size: B16
• Material: High-grade tool steel
• Manufacturing process: Hardened and ground
• Standard compliance: DIN 238
• Application: Mounting drill chucks
• Compatibility (machine side): Machines with MT3 spindle bore
• Compatibility (chuck side): Drill chucks with B16 taper bore
• Mounting method: Self-holding taper
• Removal feature: Tang drive / drift slot
• Surface finish: Precision ground
• Durability: High
• Corrosion protection: Lightly oiled
• Intended use: Industrial, professional workshops

Final note

A precise, durable arbor for reliable chuck mounting in demanding drilling applications.
