RUKO HGB Juego de 2 piezas DIN 2181 rosca métrica fina Juego de machos de roscar manuales M10 x 1,0 mm HSS-G

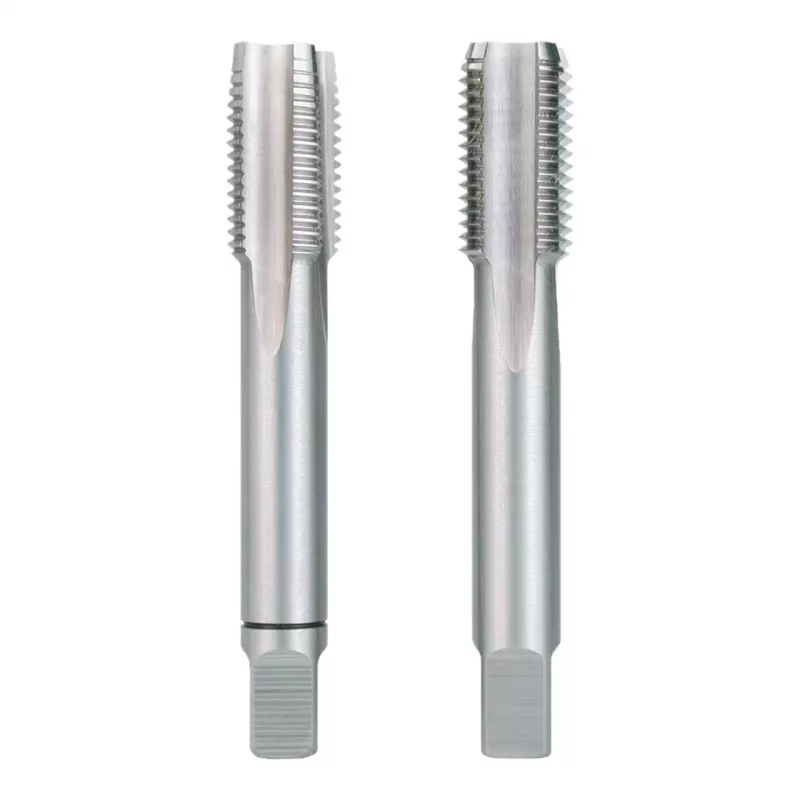

Cutting precise M10 x 1.0 mm metric fine threads by hand in steel, stainless steel, or non-ferrous metals can be challenging without the right tool. This RUKO HGB set solves that problem with two straight-flute hand taps made from high-speed steel (HSS-G), ground to DIN 2181 and ISO 2 (6H) tolerance.

Who is it for

Machinists, metalworkers, and maintenance technicians who need to create or repair fine threads in through and blind holes with manual tapping operations.

Main features

• Set contains taper tap and second tap for progressive thread cutting
• Metric fine thread M10 x 1.0 mm to DIN 2181
• HSS-G bright finish for general purpose use
• Straight flutes suitable for through and blind holes
• Right-hand cutting direction
• Shank diameter 7.0 mm, square drive 5.5 mm
• Overall length 75 mm, thread length 22 mm
• Recommended pre-drill diameter 9.0 mm

Specifications

• Thread type: Metric fine
• Thread size: M10 x 1.0 mm
• Standard: DIN 2181
• Set contents: 2-piece (taper tap, second tap)
• Material: High-speed steel (HSS-G)
• Tolerance class: ISO 2 (6H)
• Surface finish: Bright (uncoated)
• Cutting direction: Right-hand
• Flute type: Straight
• Tool type: Hand tap

Tips

Use a suitable tapping fluid to improve tool life and thread quality. For blind holes, ensure chips are cleared regularly to prevent binding.
