RUKO HGB Set DIN 352 HSS 60° M12 x 1,75 mm juego de machos de roscar manuales, 3 piezas

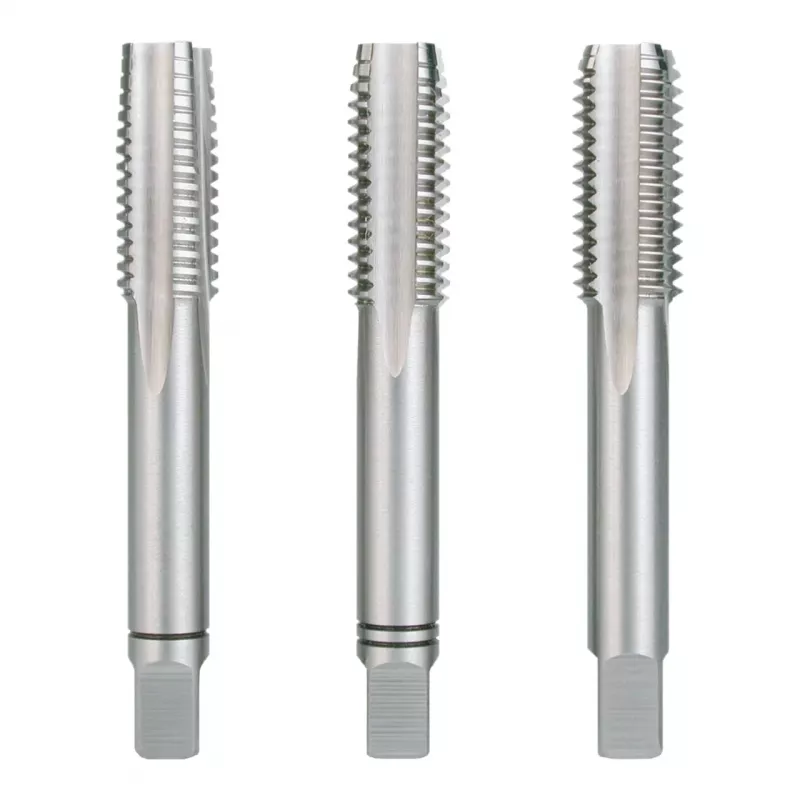

Hand tap set for cutting metric ISO threads with a nominal diameter of 12 mm and a pitch of 1.75 mm. The set contains three taps: taper tap, second tap, and bottoming tap, enabling full thread production in through and blind holes. Manufactured from high-speed steel (HSS) to DIN 352 with a 60° thread flank angle and tolerance class ISO 2 (6H).

Advantages

HSS provides high wear resistance and long tool life. The three-piece set allows progressive cutting: taper tap for starting, second tap for intermediate, and bottoming tap for threads close to the hole bottom. Bright finish reduces friction and improves chip flow.

Suitable for

• Unalloyed and alloyed steels
• Malleable cast iron
• Non-ferrous metals
• Plastics

Key specifications

• Thread standard: Metric (M)
• Nominal diameter: 12 mm
• Pitch: 1.75 mm
• Material: HSS
• Standard: DIN 352
• Number of taps: 3
• Thread flank angle: 60°
• Tolerance class: ISO 2 (6H)
• Cutting direction: right-hand
• Recommended pre-drill diameter: 10.2 mm
• Drive: square drive
• Packaging: plastic case

Recommendations

Use with suitable cutting oil and appropriate tap wrench. Ensure pre-drilled hole diameter of 10.2 mm for optimal thread engagement.
