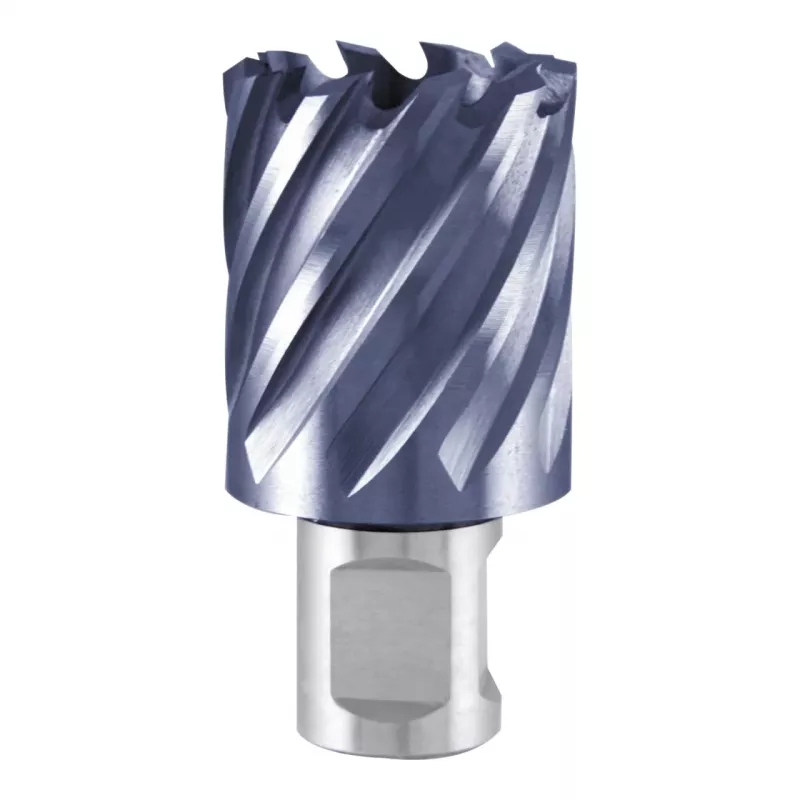

RUKO KEB-HSS-TiAlN broca de corona 43,0 mm de diámetro de corte, 30 mm de profundidad de corte, mango Weldon 19 mm

This RUKO annular cutter stands out with its TiAlN coating, which delivers up to four times the tool life of uncoated HSS cutters. Designed for magnetic drilling machines and pillar drills, it produces precise, burr-free holes in steel, stainless steel, cast iron, and non-ferrous metals.

Highlights

• TiAlN coating for enhanced hardness, wear resistance, and heat resistance
• Hollow design removes a core, reducing cutting force and power consumption
• Optimized geometry ensures efficient chip evacuation
• Weldon shank for secure clamping in standard holders

In daily use

The cutter's 43.0 mm diameter and 30 mm cutting depth handle thick materials in a single pass. External cooling is recommended to maximize tool life. A core ejector pin is required but not included.

Full specifications

• Product type: Annular cutter
• Material: High-speed steel (HSS)
• Coating: Titanium aluminum nitride (TiAlN)
• Cutting diameter: 43.0 mm
• Cutting depth: 30 mm
• Shank type: Weldon shank
• Shank diameter: 19 mm (3/4 inch)
• Total length: 64 mm
• Application materials: Steel, stainless steel, cast iron, non-ferrous metals
• Recommended machines: Magnetic drilling machines, pillar drills
• Tool life improvement: Up to 4x compared to uncoated HSS
• Hole finish: Precise, burr-free holes
• Chip management: Optimized geometry for efficient chip evacuation
• Core ejector pin requirement: Yes (not included)
• Design feature: Hollow drill bit for core removal
• Cooling recommendation: External cooling recommended
• Packaging quantity: 1 piece
• Series/Line: RUKO 108 Series

Final note

Engineered for professional metalworking, this cutter delivers reliable performance and long tool life in demanding applications.
