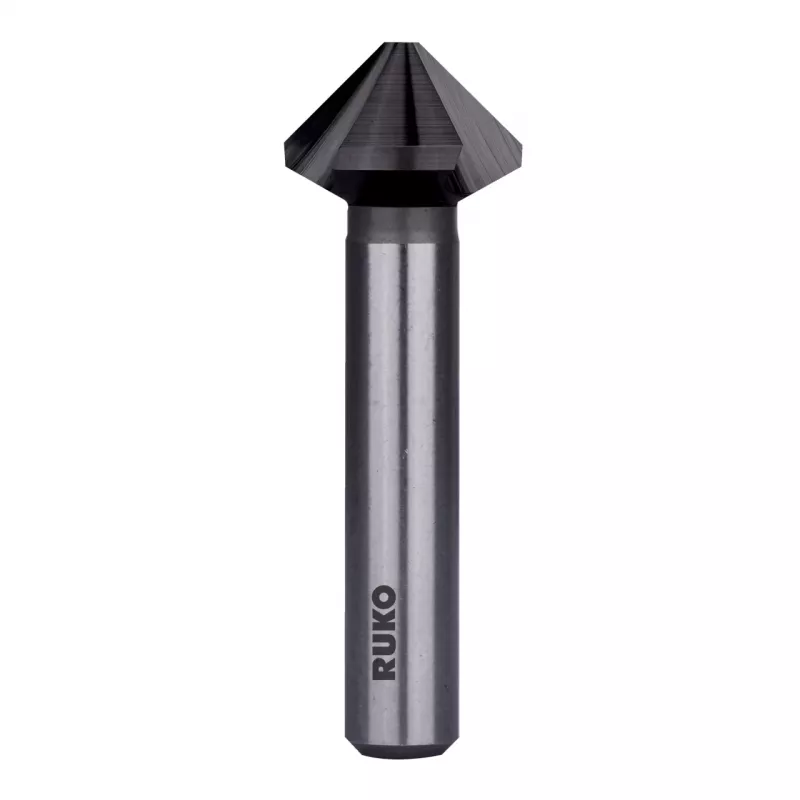

RUKO KES-DIN335-HSS-TiAlN-90°-Ø19,0mm avellanador cónico

Deburring and chamfering holes in metal workpieces can be time-consuming and leave rough edges. This RUKO countersink bit solves that by providing a precise 90° chamfer in a single pass, eliminating sharp burrs and creating a clean, professional finish. It is suitable for use in steel, stainless steel, cast iron, non-ferrous metals, and plastics.

Who is it for

Machinists, metalworkers, and maintenance technicians who need to deburr drilled holes or create countersinks for flat-head screws. It works in drill presses, milling machines, and hand drills with a suitable chuck.

Main features

• 90° countersink angle conforms to DIN 335 C for standard flat-head screw seats.
• TiAlN coating provides high heat and wear resistance, extending tool life.
• Three-flute design ensures smooth cutting and good chip evacuation.
• Ground from solid HSS for consistent geometry and durability.
• Cylindrical shank fits standard drill chucks.

Specifications

• Tool Type: Countersink
• Standard: DIN 335 C
• Material: High-Speed Steel (HSS)
• Coating: TiAlN (Titanium Aluminum Nitride)
• Countersink Angle: 90°
• Cutting Diameter (D1): 19.0 mm
• Shank Type: Cylindrical
• Shank Diameter (D2): 10 mm
• Overall Length (L1): 63 mm
• Number of Flutes: 3
• Cutting Direction: Right-hand
• Recommended Use: Deburring, Chamfering, Countersinking
• Workpiece Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Metals, Plastics

Tips

Use cutting oil or coolant when working with stainless steel to maximize tool life. For best results, run at the recommended speed for the workpiece material and ensure the workpiece is securely clamped.
