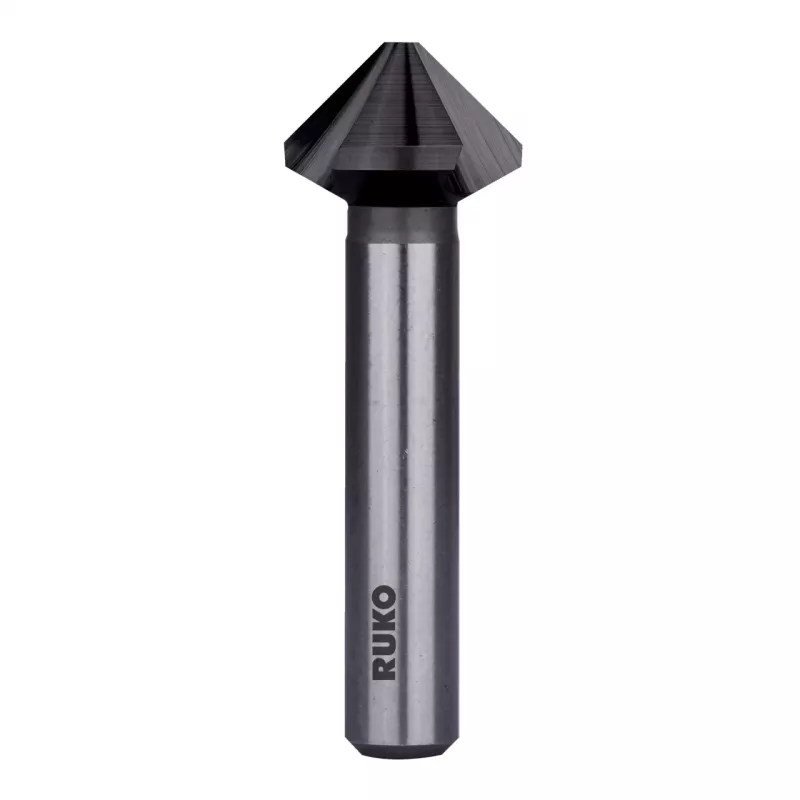

RUKO KES-DIN335-HSS-TiAlN-90°-Ø25,0mm avellanador cónico

The RUKO KES-DIN335-HSS-TiAlN-90°-Ø25.0mm countersink bit stands out with its TiAlN coating, which enables high cutting speeds and dry machining. The 90° angle and three-flute design produce clean, chatter-free chamfers in a wide range of materials.

Highlights

• TiAlN coating for high heat resistance up to 800°C
• Ground profile for precise, smooth countersinking
• Three flutes ensure excellent chip evacuation and surface finish
• HSS base material with high wear resistance

In daily use

This countersink bit is suitable for deburring, chamfering, and countersinking in steel, stainless steel, cast iron, non-ferrous metals, and plastics. The cylindrical shank with h8 tolerance fits standard drill chucks and collets. Its 25.0 mm cutting diameter and 67.0 mm overall length provide a good balance between reach and stability.

Full specifications

• Tool Type: Countersink
• Standard: DIN 335 C
• Material: High-Speed Steel (HSS)
• Coating: Titanium Aluminum Nitride (TiAlN)
• Countersink Angle: 90°
• Cutting Diameter (D1): 25.0 mm
• Shank Type: Cylindrical Shank
• Shank Diameter (D2): 10.0 mm
• Overall Length (L1): 67.0 mm
• Number of Flutes: 3
• Application: Deburring, Chamfering, Countersinking
• Suitable Materials: Steel, Stainless Steel, Cast Iron, Non-Ferrous Metals, Plastics
• Manufacturing Process: Ground Profile
• Direction of Cut: Right-Hand Cut
• Tolerance Class: h8
• Heat Resistance: Up to 800°C
• Wear Resistance: High
• Cooling: External

Final note

A reliable choice for workshops requiring consistent countersink quality across diverse materials.
