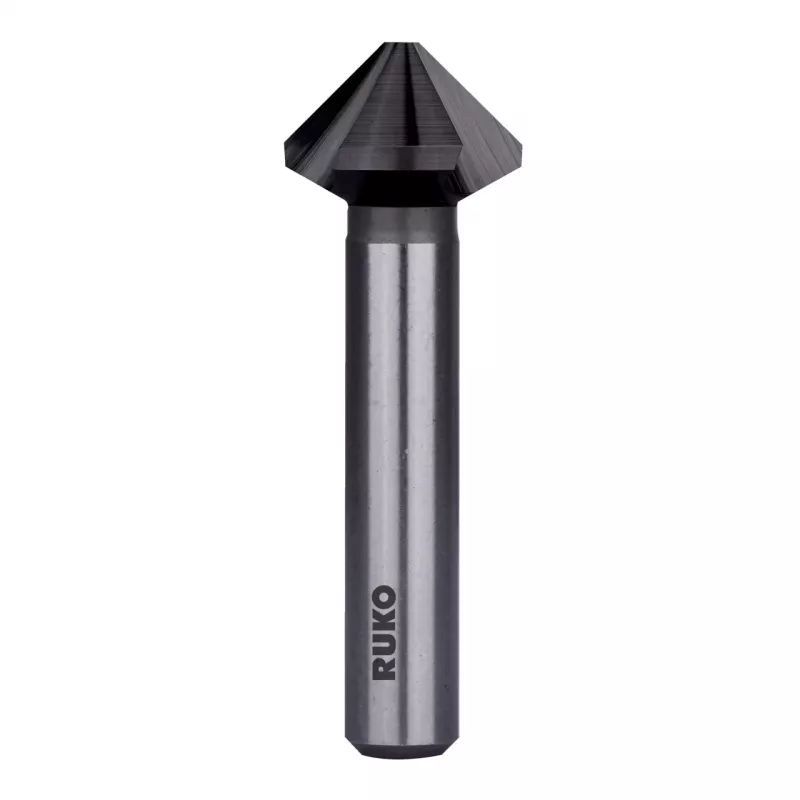

RUKO KES-DIN335-HSS-TiAlN-90°-Ø4,3mm avellanador cónico

Countersinking, deburring, and chamfering in tough materials demand a tool that stays sharp and resists heat. The RUKO KES-DIN335-HSS-TiAlN-90°-Ø4.3mm conical countersink meets that challenge with a TiAlN-coated HSS body and a precise 90° cutting angle.

Who is it for

Machinists, metalworkers, and maintenance technicians who need clean, consistent countersinks in steel, stainless steel, cast iron, non-ferrous metals, and plastics. The TiAlN coating allows dry machining and extends tool life in demanding applications.

Main features

• Conical countersink per DIN 335 Form C
• High-speed steel (HSS) with TiAlN coating for high hardness and wear resistance
• 90° cutting angle for standard countersunk screws
• Nominal diameter 4.3 mm, shank diameter 3 mm, overall length 38 mm
• 3 flutes, right-hand cut, cylindrical shank

Specifications

• Tool type: Conical countersink
• Standard: DIN 335 Form C
• Material: High-speed steel (HSS)
• Coating: TiAlN
• Cutting angle: 90°
• Nominal diameter (D1): 4.3 mm
• Shank diameter (D2): 3 mm
• Overall length (L1): 38 mm
• Number of flutes: 3
• Cutting direction: Right-hand cut
• Shank type: Cylindrical
• Applications: Deburring, chamfering, countersinking
• Suitable materials: Steel, stainless steel, cast iron, non-ferrous metals, plastics

Tips

Use appropriate speeds and feeds for the workpiece material. The TiAlN coating performs best at higher cutting temperatures, making it suitable for dry machining. Ensure the workpiece is securely clamped to prevent vibration and achieve a clean finish.
