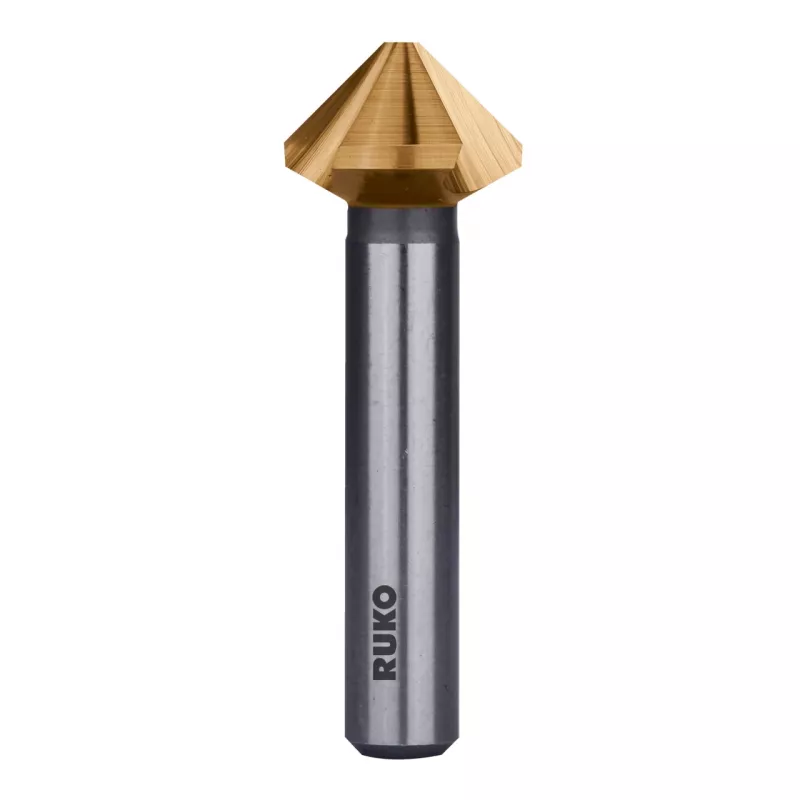

RUKO KES-DIN335-HSS-TiN-90°-Ø10,0mm avellanador cónico

Countersink bit with 90° cutting angle, precision ground from solid high-speed steel and coated with titanium nitride for high wear resistance and heat resistance. Ideal for deburring, chamfering, and countersinking in steel, cast iron, non-ferrous metals, and plastics.

Advantages

TiN coating reduces friction and extends tool life, while the 3-flute design ensures smooth cutting and excellent chip evacuation. The cylindrical shank fits standard drill chucks.

Suitable for

• Deburring drilled holes
• Chamfering edges
• Countersinking flat-head screws
• Working with steel, cast iron, non-ferrous metals, and plastics

Key specifications

• Nominal diameter: 10.0 mm
• Shank diameter: 6.0 mm
• Overall length: 45 mm
• Cutting angle: 90°
• Number of flutes: 3
• Material: High-speed steel (HSS)
• Coating: Titanium nitride (TiN)
• Standard: DIN 335 C

Recommendations

Use with a suitable drill or countersinking machine, ensuring proper speed and feed for the material. Apply cutting fluid for longer tool life when working with steel.
