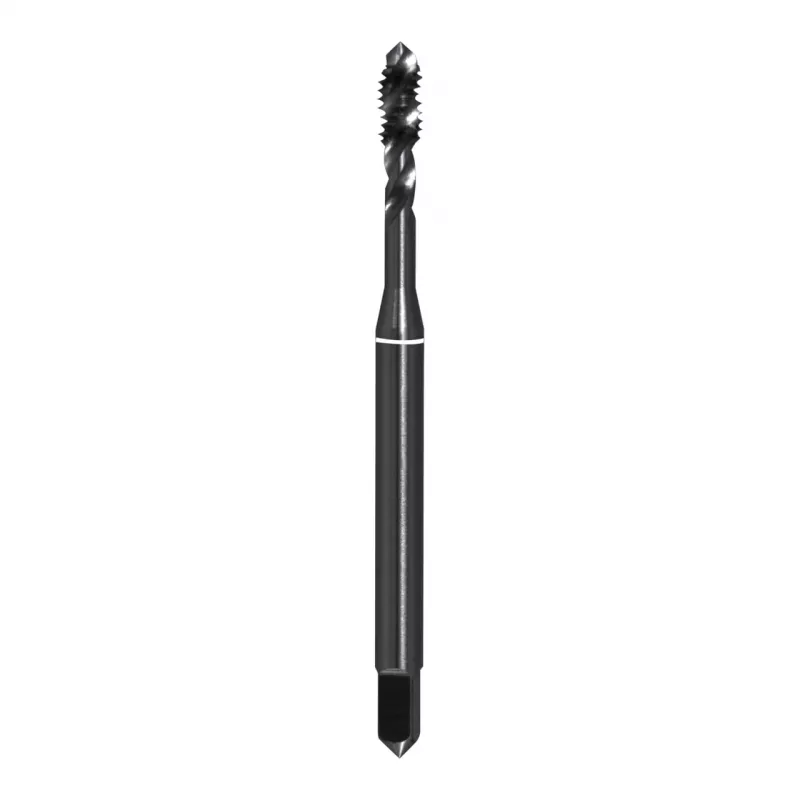

RUKO MGB-DIN371-HSSCo-vap.-M4x0,70mm macho de roscar a máquina, HSS-E Co, VAP, M4 x 0,70 mm, DIN 371

Machine tap for cutting metric coarse threads in through holes, featuring high-speed steel with cobalt (HSS-E Co) and vaporized surface treatment for enhanced durability.

Advantages

HSS-E Co material provides high heat resistance and wear resistance, suitable for machining tough materials. The vaporized (VAP) surface treatment improves chip evacuation and reduces friction, extending tool life. Reinforced shank design offers increased rigidity and stability during tapping operations.

Suitable for

• Through hole threading in steel, stainless steel, and other machinable metals
• Use with tapping machines or CNC machining centers
• Industrial manufacturing and maintenance applications

Key specifications

• Thread type: Metric Coarse
• Nominal thread diameter: M4
• Thread pitch: 0.70 mm
• Standard: DIN 371
• Material: HSS-E Co (High-Speed Steel with Cobalt)
• Surface treatment: VAP (Vaporized / Steam-tempered)
• Application type: Through holes
• Thread tolerance: ISO 2 (6H)
• Shank design: Reinforced shank
• Overall length (L1): 63 mm
• Thread length (L2): 12 mm
• Shank diameter (d2): 4.5 mm
• Square drive size (a): 3.4 mm
• Square drive size (b): 2.7 mm
• Recommended core hole diameter: 3.3 mm
• Cutting direction: Right-hand
• Flute type: Straight flutes
• Number of flutes: 3
• Tool type: Machine tap
• Thread profile: M (Metric)

Recommendations

Use appropriate cutting fluid and ensure correct alignment for optimal thread quality and tool life.
