RUKO SCE-DIN223-3/16x24-BSW Terraja, HSS, BSW 3/16 pulgadas x 24 TPI

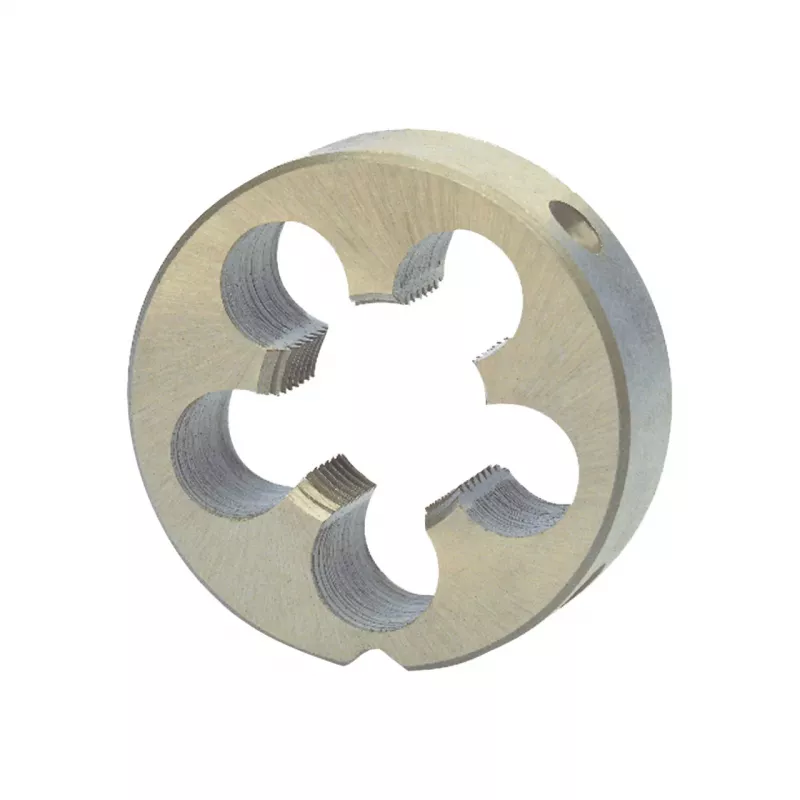

Round die for cutting external BSW threads, size 3/16 inch x 24 TPI, made of high-speed steel (HSS). The die conforms to DIN 223 and is intended for use with a suitable round die stock.

Advantages

HSS construction provides durability and long tool life. The bright finish reduces friction during threading. Three flutes ensure efficient chip removal.

Suitable for

• General purpose steels
• Non-ferrous metals
• Plastics

Key specifications

• Thread type: BSW (British Standard Whitworth)
• Thread size: 3/16 inch x 24 TPI
• Outer diameter: 20 mm
• Thickness: 7 mm
• Cutting direction: Right-hand
• Number of flutes: 3

Recommendations

Use with a suitable round die stock. Apply cutting oil to improve thread quality and tool life.
