RUKO SCE-DIN223-M8x1,25mm Terraja, HSS, rosca métrica normal, 25mm de diámetro exterior

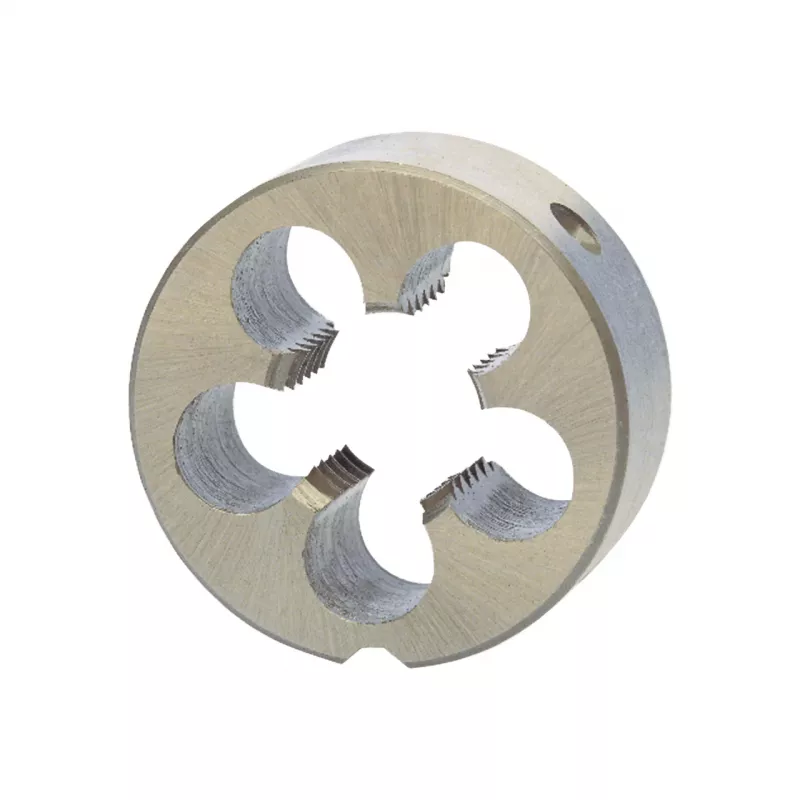

Round die for cutting external metric threads with a nominal diameter of 8 mm and a pitch of 1.25 mm. Manufactured from high speed steel (HSS) with a bright, uncoated finish, this die offers reliable performance in unalloyed and alloyed steels, non-ferrous metals, and plastics. The ground profile ensures accurate thread geometry and long tool life.

Advantages

High speed steel construction provides excellent wear resistance and cutting performance. The ground profile delivers precise threads with a 6g tolerance class. Suitable for a wide range of materials, making it a versatile choice for general purpose threading tasks.

Suitable for

• Cutting external M8 x 1.25 mm metric coarse threads
• Use in unalloyed and alloyed steels
• Threading non-ferrous metals such as aluminium and brass
• Creating threads in plastics

Key specifications

• Thread standard: Metric (M)
• Nominal thread diameter: 8 mm
• Thread pitch: 1.25 mm
• Die standard: DIN 223
• Material: High Speed Steel (HSS)
• Outer diameter: 25 mm
• Thickness: 9 mm
• Cutting direction: Right-hand
• Tolerance class: 6g
• Number of flutes: 3
• Required die stock size: 25 mm

Recommendations

For best results, use with a suitable die stock and cutting fluid. Ensure the workpiece is securely clamped and the die is aligned perpendicular to the workpiece axis.
