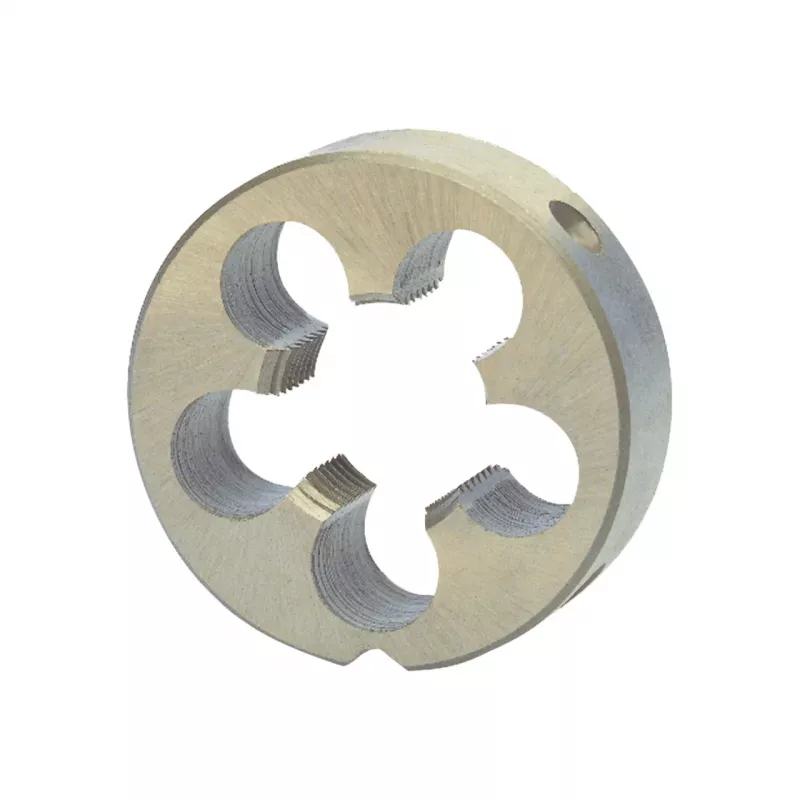

RUKO SCE-DIN223-MF16x1.0mm terraja de rosca métrica fina, HSS, 16 mm x 1,0 mm

Precision-engineered for external threading, this RUKO round die cuts metric fine threads with a 16 mm nominal diameter and 1.0 mm pitch. Manufactured from high-speed steel to DIN 223, it delivers clean, accurate threads in general-purpose steels, non-ferrous metals, and cast iron.

Overview

The SCE-DIN223-MF16x1.0mm is a right-hand cutting round die with an open slot for adjustment, suitable for both manual and machine applications. Its 38 mm outer diameter and 10 mm thickness make it compatible with standard die stocks and holders.

What stands out

• Metric fine thread profile (MF) for precise fastening applications
• High-speed steel construction for durability and long tool life
• Open slot design allows fine adjustment of thread tolerance
• Uncoated bright finish reduces friction and improves chip flow

Technical details

• Thread standard: Metric Fine (MF)
• Nominal thread diameter: 16 mm
• Thread pitch: 1.0 mm
• Die standard: DIN 223
• Tool type: Round die / threading die
• Material: High-speed steel (HSS)
• Cutting direction: Right-hand
• Outer diameter: 38 mm
• Thickness: 10 mm
• Thread tolerance: 6g
• Application: External threading
• Suitable materials: General purpose steels, non-ferrous metals, cast iron
• Finish: Uncoated / bright
• Usage: Manual and machine applications

Our verdict

A reliable choice for professionals needing precise metric fine threads. The adjustable design and HSS construction ensure consistent performance across a range of materials.
