RUKO SCE-DIN22568-HSS-60°-M16x2.00mm-LH Terraja de rosca redonda, HSS-G, métrica ISO, rosca a izquierdas

Precision-ground HSS round threading die for cutting external metric ISO threads, size M16 with 2.00 mm pitch, left-hand direction. Manufactured to DIN 22568 with a 60° flank angle and tolerance class 6g.

Overview

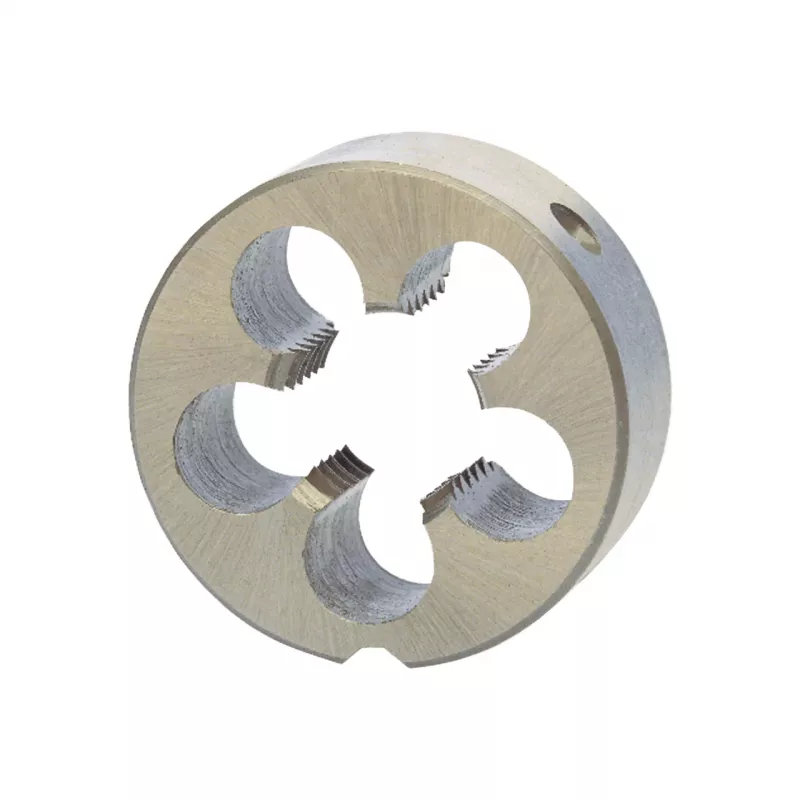

The RUKO SCE-DIN22568-HSS-60°-M16x2.00mm-links is a round threading die made from high-speed steel (HSS-G), designed for cutting external threads on unalloyed and low-alloyed steels, non-ferrous metals, and plastics. It features a left-hand thread direction, making it suitable for applications requiring reverse-threaded fasteners.

What stands out

• Left-hand M16 x 2.00 mm metric ISO thread
• Ground HSS (HSS-G) for durability and clean cuts
• 60° flank angle per DIN 22568
• Tolerance class 6g for standard thread fit
• Requires a die stock for operation

Technical details

• Tool type: Round threading die
• Thread size: M16
• Thread pitch: 2.00 mm
• Thread direction: Left hand (LH)
• Standard: DIN 22568
• Material: High-speed steel (HSS), grade HSS-G (ground)
• Outer diameter: 45 mm
• Thickness: 10 mm
• Flank angle: 60°
• Tolerance class: 6g
• Surface finish: Bright (uncoated)

Our verdict

A precise, left-hand threading die for professional metalworking tasks, built to DIN 22568 and made from ground HSS for reliable thread cutting.
