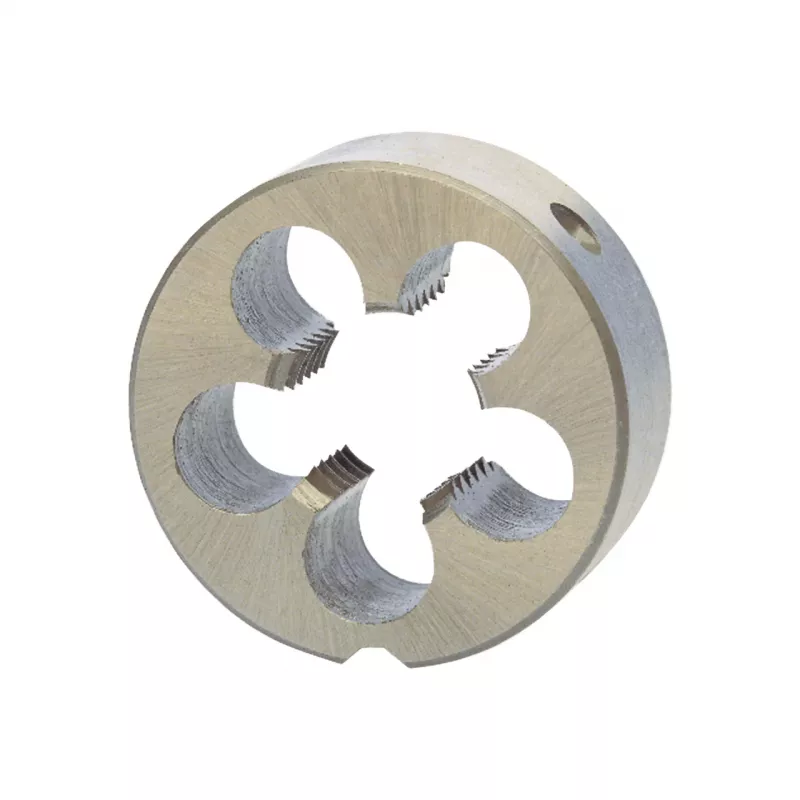

RUKO SCE-DIN22568-HSSCo-60°-M8x1,25mm Terraja de rosca redonda

The RUKO SCE-DIN22568-HSSCo-60°-M8x1.25mm is a precision round threading die crafted from high-speed steel with cobalt (HSSCo), offering enhanced heat and wear resistance for demanding threading tasks. It cuts metric ISO threads with a 60° thread angle, conforming to DIN 22568 standards, and is ground for accuracy, delivering clean external threads in unalloyed and alloyed steels up to 800 N/mm².

Highlights

• Material: HSSCo (High-Speed Steel with Cobalt) for high heat resistance and durability
• Thread standard: Metric ISO, nominal diameter M8, pitch 1.25 mm, right-hand
• Ground threads for precision cutting
• Outer diameter 25 mm, thickness 9 mm
• Tolerance class 6g for standard fits

In daily use

This die is designed for external thread cutting in general purpose applications. Its cobalt alloyed steel maintains hardness at elevated temperatures, making it suitable for threading tough materials. The bright, uncoated surface reduces friction, and the die fits standard die stocks for manual or machine use.

Full specifications

• Tool type: Round threading die
• Thread standard: Metric ISO
• Nominal thread diameter: 8 mm (M8)
• Thread pitch: 1.25 mm
• Thread direction: Right-hand
• Thread angle: 60°
• Material grade: HSSCo
• Standard compliance: DIN 22568
• Outer diameter: 25 mm
• Thickness: 9 mm
• Tolerance class: 6g
• Application: Threading of unalloyed and alloyed steels up to 800 N/mm²
• Cutting method: External thread cutting
• Surface finish: Bright / Uncoated
• Heat resistance: High
• Wear resistance: High
• Manufacturing process: Ground threads for precision

Final note

Precision and durability in one tool – the RUKO HSSCo die ensures reliable thread cutting for professional results.
