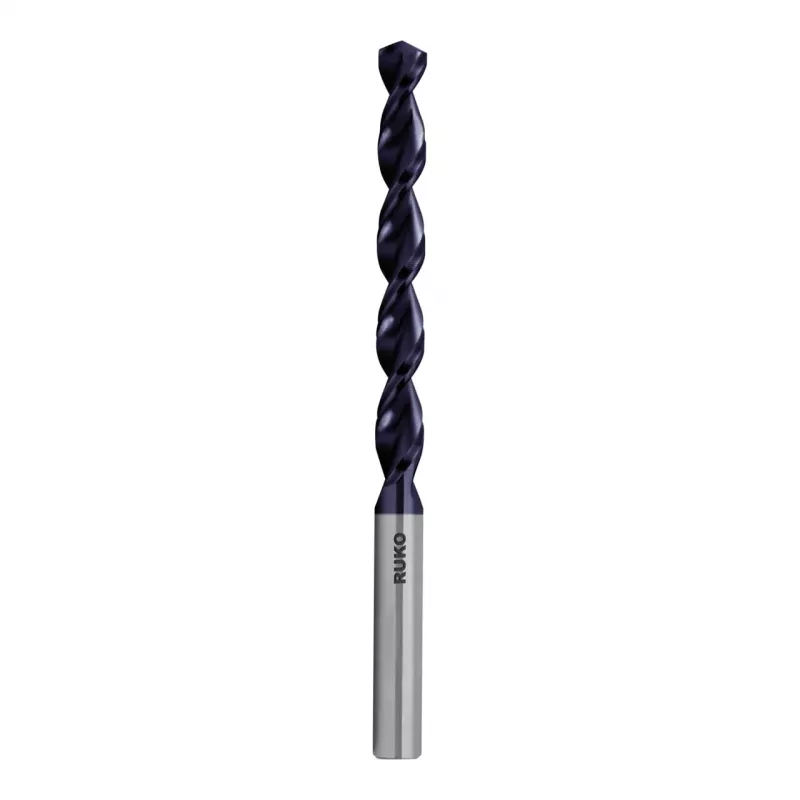

RUKO SPB-DIN338-HSS-TiAlN-Ø14,0mm broca helicoidal

This RUKO twist drill bit stands out with its TiAlN coating, which provides exceptional wear resistance and heat stability, making it a reliable choice for demanding drilling tasks. The split point design ensures precise self-centering, reducing the need for center punching and improving hole accuracy.

Highlights

• TiAlN coating for enhanced wear resistance and high heat stability
• Split point (135°) for self-centering and reduced walking
• Precision ground from solid HSS for durability
• DIN 338 standard for consistent quality
• Suitable for dry machining

In daily use

This drill bit is ideal for general purpose drilling in alloyed and unalloyed steel, cast iron, non-ferrous metals, and plastics. Its right-hand cut and cylindrical shank ensure compatibility with standard drill chucks. The 14.0 mm diameter and 114 mm flute length provide ample reach for various applications.

Full specifications

• Drill Bit Type: Twist Drill Bit
• Standard: DIN 338
• Material: High-Speed Steel (HSS)
• Coating: Titanium Aluminum Nitride (TiAlN)
• Diameter: 14.0 mm
• Shank Type: Cylindrical
• Point Angle: 135°
• Point Type: Split Point
• Flute Type: Right-hand cut
• Overall Length: 169 mm
• Working Length (Flute Length): 114 mm
• Tolerance: h8
• Recommended Materials: Alloyed and unalloyed steel, cast iron, non-ferrous metals, plastics
• Manufacturing Process: Precision ground from solid
• Surface Finish: TiAlN coated (Bronze/Grey appearance)
• Packaging: Single piece

Final note

A professional-grade drill bit that combines precision and longevity for consistent performance.
