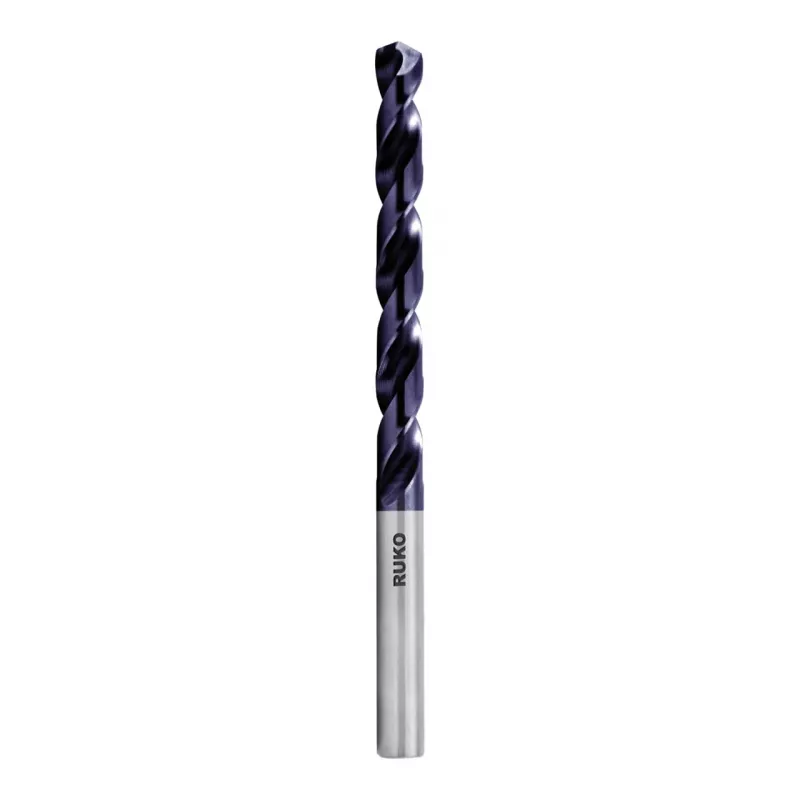

RUKO SPB-DIN338-HSSCo8-TiAlN-Ø7,4mm Broca helicoidal

Twist drill bit with 7.4 mm diameter, manufactured from HSS-Co 8 high-speed steel with TiAlN coating for superior heat and wear resistance. The split point tip provides self-centering for precise drilling without wandering.

Advantages

TiAlN coating reduces friction and heat build-up, extending tool life. Cobalt alloyed steel maintains hardness at elevated temperatures. Split point geometry eliminates the need for center punching and reduces thrust requirements.

Suitable for

• Alloyed and unalloyed steel
• Stainless steel
• Cast iron
• Non-ferrous metals

Key specifications

• Drill bit type: Twist drill bit (jobber drill)
• Standard: DIN 338
• Material: HSS-Co 8
• Coating: TiAlN
• Diameter: 7.4 mm
• Total length: 109 mm
• Working length: 69 mm
• Shank type: Cylindrical
• Point angle: 130°
• Point grind: Split point
• Tolerance class: h8
• Manufacturing process: Ground from solid
• Cutting direction: Right-hand cut

Recommendations

Use coolant for optimal performance and tool life.
