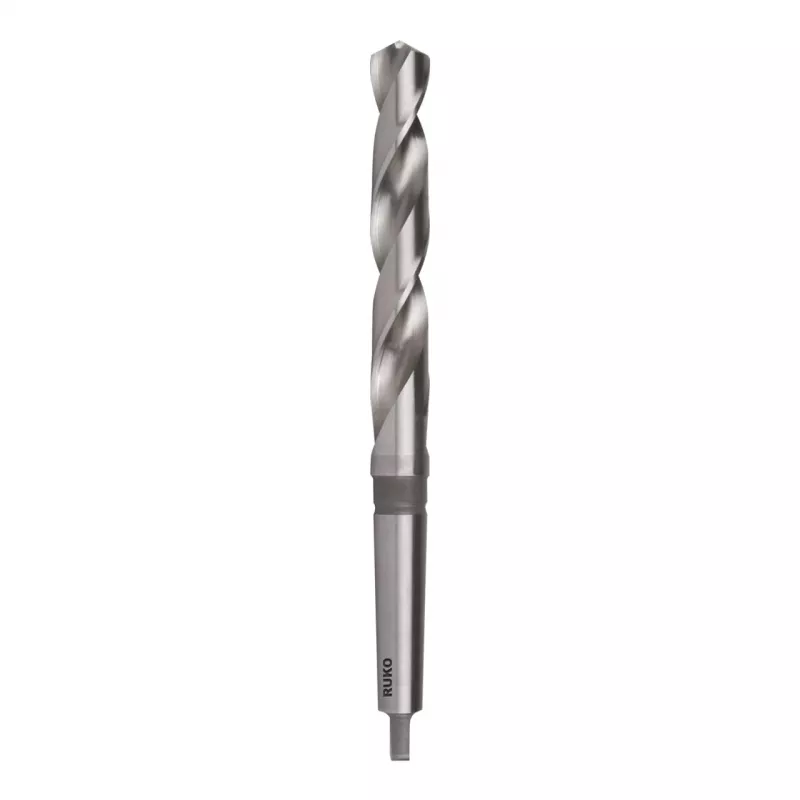

RUKO SPB-DIN345-HSSCo-Ø20,0mm Broca helicoidal con mango cónico Morse

Drilling tough and abrasive materials demands a drill bit that stays sharp and precise under stress. The RUKO SPB-DIN345-HSSCo-Ø20.0mm twist drill bit solves this problem by combining a cobalt-alloyed high-speed steel body with a Morse taper shank, delivering reliable performance in steel, cast iron, stainless steel, and acid-resistant steel.

Who is it for

This drill bit is built for machinists, metalworkers, and maintenance professionals who need a durable, general-purpose tool for demanding drilling tasks. Its 20.0 mm cutting diameter and MT2 shank make it suitable for use in stationary drilling machines and lathes with a matching Morse taper socket.

Main features

• Precision-ground from solid HSS-Co for high heat resistance and long tool life.
• Morse taper shank (MT2) ensures secure, centered mounting and efficient power transmission.
• Spiral flute design with a 118° point angle for excellent chip removal and accurate hole starting.
• Bright surface finish reduces friction and improves corrosion resistance.
• Conforms to DIN 345, guaranteeing consistent geometry and interchangeability.

Specifications

• Product type: Twist drill bit
• Standard: DIN 345
• Material: HSS-Co (high-speed steel with cobalt)
• Cutting diameter: 20.0 mm
• Shank type: Morse taper shank, size MT2
• Overall length: 224 mm
• Cutting length: 125 mm
• Point angle: 118°
• Flute type: Spiral flute
• Tolerance: h8
• Surface finish: Bright
• Direction of cut: Right-hand
• Recommended materials: Steel, cast iron, non-ferrous metals, stainless steel, acid-resistant steel
• Manufacturing process: Ground from solid

Tips

Use a suitable cutting fluid when drilling stainless or acid-resistant steel to extend tool life. Ensure the Morse taper socket is clean and free of burrs before mounting to maintain concentricity.
