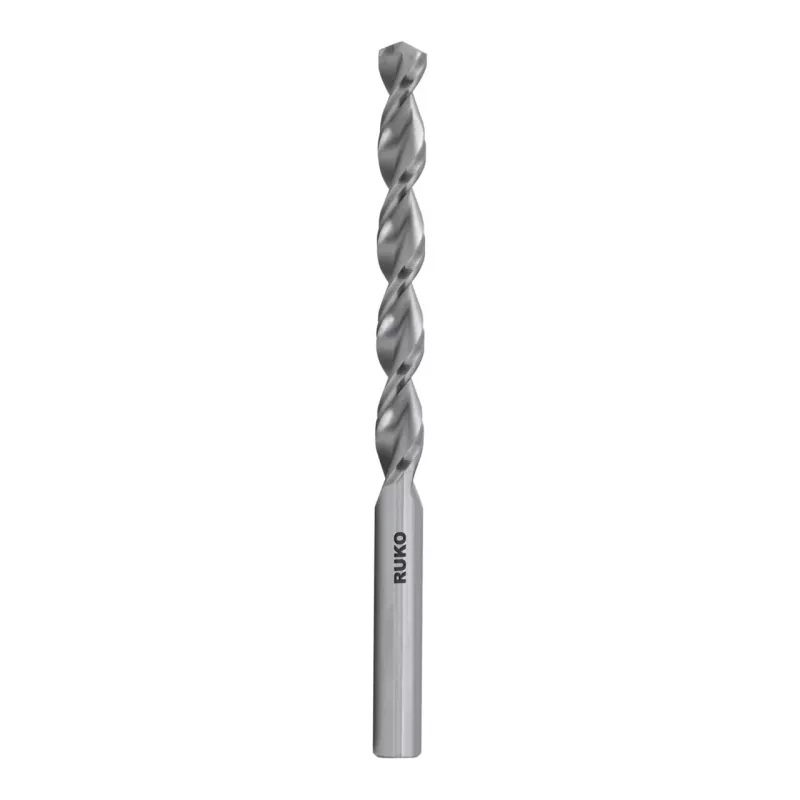

RUKO SPB-TL3000 12,5mm DIN 338 broca helicoidal HSS-G

Precision-ground HSS-G twist drill bit with 12.5 mm diameter, DIN 338 standard, and 118° point angle for reliable metal drilling.

Highlights

• HSS-G ground high-speed steel for durability and heat resistance
• Bright uncoated finish for clean chip removal
• Right-hand cutting with cylindrical shank
• Excellent for steel, cast iron, non-ferrous metals, and plastics

In daily use

The 151 mm total length and 101 mm flute length provide deep reach and stable guidance. The h8 tolerance ensures accurate holes, while the precision-ground flutes reduce friction and improve chip evacuation.

Full specifications

• Drill Bit Type: Twist Drill Bit
• Material: HSS-G (High-Speed Steel, Ground)
• Standard: DIN 338
• Drill Diameter: 12.5 mm
• Total Length: 151 mm
• Working Length (Flute Length): 101 mm
• Shank Type: Cylindrical
• Point Angle: 118°
• Cutting Direction: Right-hand cutting
• Surface Finish: Bright (Uncoated)
• Manufacturing Process: Precision Ground
• Recommended Application: Metal, Steel, Cast Iron, Non-Ferrous Metals, Plastics
• Tolerance: h8
• Chip Removal: Excellent
• Durability: High
• Heat Resistance: Good

Final note

Engineered for consistent performance in demanding drilling tasks.
