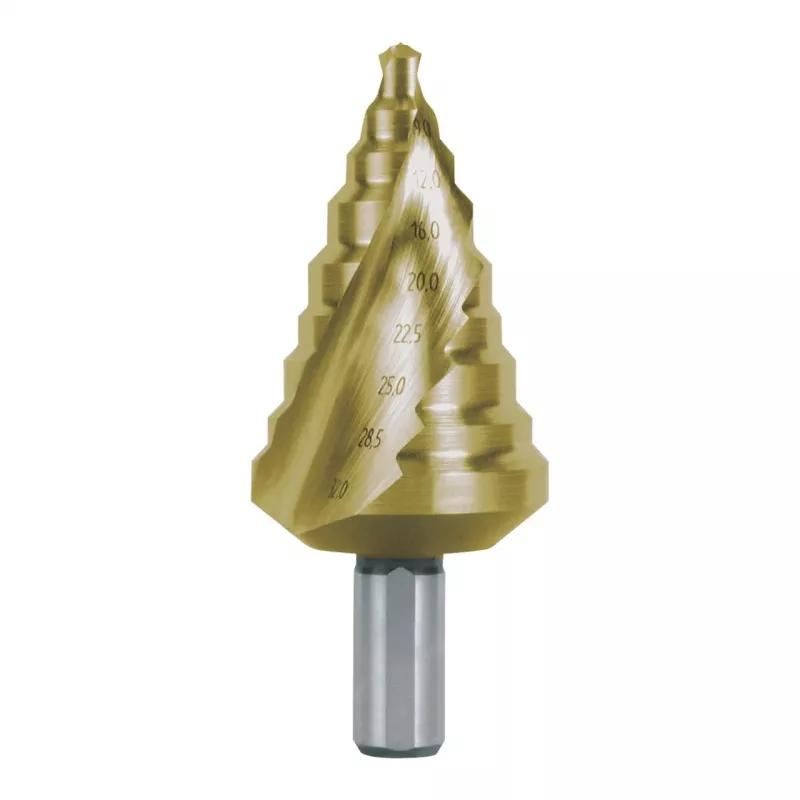

RUKO STB-HSS-TiN-SP broca escalonada 6,0-32,0 mm, 14 escalones, HSS recubierto de nitruro de titanio

Step drill bit made of high-speed steel with titanium nitride coating, covering diameters from 6.0 to 32.0 mm in 14 steps of 2 mm increments. The TiN coating provides high heat resistance up to 600°C and reduces friction for longer tool life.

Advantages

Spiral flute design with split point geometry ensures precise centering and smooth chip evacuation. The 3-flat shank prevents slipping in the drill chuck. Suitable for drilling, deburring, and reaming in thin materials up to 4 mm thick.

Suitable for

• Sheet metal
• Non-ferrous metals
• Plastics
• Thin steel sheets

Key specifications

• Material: High-Speed Steel (HSS)
• Coating: Titanium Nitride (TiN)
• Drilling diameter range: 6.0 - 32.0 mm
• Number of steps: 14
• Step increments: 2 mm
• Maximum material thickness: 4 mm
• Overall length: 104 mm
• Shank diameter: 10 mm
• Shank type: 3-flat shank
• Flute type: Spiral flute
• Point geometry: Split point
• Cutting direction: Right-hand cutting
• Form standard: Form C (DIN 1412 C)

Recommendations

Use with cutting oil on metals for best results. Ideal for electricians and sheet metal workers needing clean, burr-free holes in one operation.
