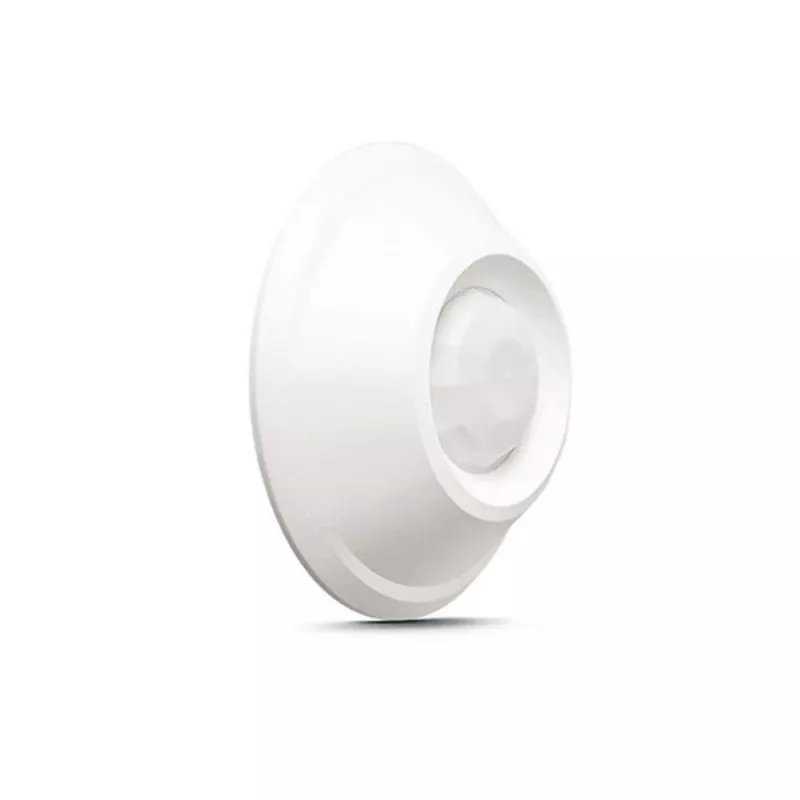

SATEL AQUA Ring S detector de movimiento PIR de techo, 12V DC, 360°, blanco

The SATEL AQUA Ring S is a digital passive infrared (PIR) ceiling motion sensor designed for indoor security applications. It features a 360° detection angle and a range of up to 10 meters in diameter, making it ideal for rooms with complex layouts. The detector is powered by 12V DC and includes a NC relay alarm output. Its compact, white ABS housing blends seamlessly with modern interiors.

Advantages

Full 360° coverage eliminates blind spots. Digital signal processing reduces false alarms. Easy surface mounting on ceilings. Compatible with most alarm control panels.

Suitable for

• Indoor security systems in residential and commercial buildings
• Rooms requiring wide-area detection (offices, living rooms, warehouses)
• Ceiling-mount installations where wall sensors are impractical

Key specifications

• Detector type: Passive Infrared (PIR)
• Mounting: Ceiling (surface)
• Detection angle: 360°
• Detection range: up to 10 m diameter (at 2.4 m height)
• Recommended installation height: 2.4 - 4 m
• Power supply: 12V DC
• Current consumption: 10 mA (standby), 12 mA (max)
• Alarm output: NC relay, 40 mA / 16V DC
• Tamper output: NC
• Operating temperature: -10°C to +55°C
• IP rating: IP20
• Security grade: Grade 2 (EN 50131-2-2)
• Housing material: ABS plastic
• Colour: White

Recommendations

For optimal performance, install at the recommended height and avoid placing near heat sources or direct sunlight. Test sensitivity after installation.
