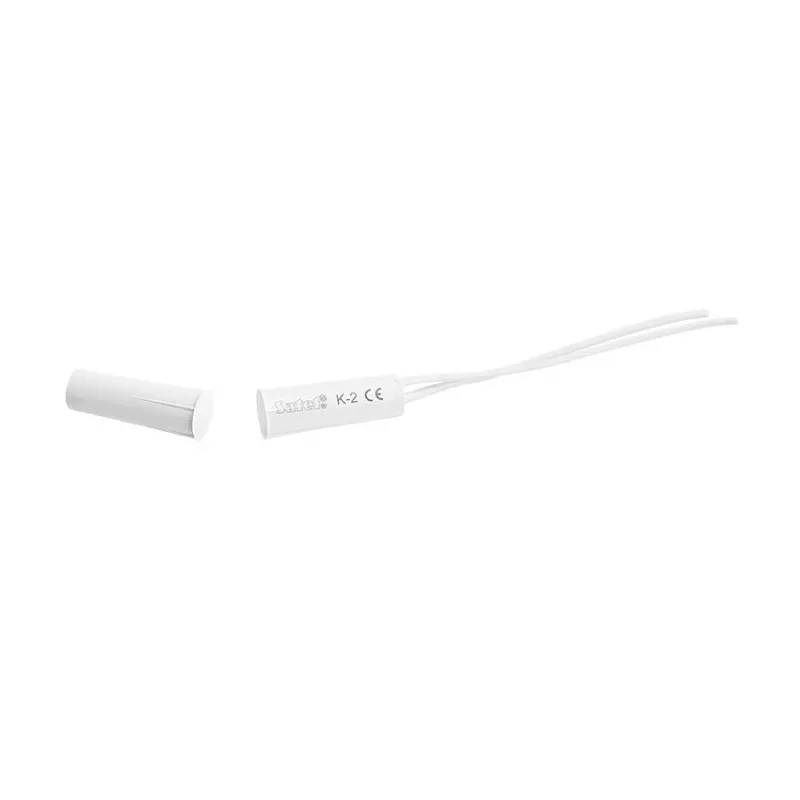

SATEL K-2 Contacto magnético de superficie (NC) Blanco

The SATEL K-2 is a high-quality surface-mounted magnetic contact designed for reliable detection of door, window, and gate openings. Engineered for security systems, this NC (Normally Closed) contact ensures fail-safe operation in alarm and access control applications.

Advantages

Compact and discreet design with durable ABS plastic housing. Easy screw-mounted installation with 0.5 m cable. Wide operating gap of 18 mm ensures consistent performance. Suitable for indoor use with a broad temperature range from -10°C to +55°C.

Suitable for

• Alarm control panels
• Access control systems
• Door and window monitoring
• Gate position detection

Key specifications

• Sensor Type: Magnetic Contact
• Mounting: Surface-mounted
• Contact Configuration: NC (Normally Closed)
• Max Switching Voltage: 20 V DC
• Max Switching Current: 20 mA
• Max Switching Power: 3 W
• Operating Gap: 18 mm
• Housing Material: ABS Plastic
• Color: White
• Cable Length: 0.5 m
• Number of Wires: 2
• Operating Temperature: -10°C to +55°C
• Sensor Dimensions (L x W x H): 33 x 14 x 7 mm
• Magnet Dimensions (L x W x H): 33 x 14 x 7 mm

Recommendations

For optimal performance, ensure proper alignment between sensor and magnet. Use with compatible alarm panels or access control systems. Indoor installation only.
