SATRA S-ABJ5 Gato neumático de elevación de triple bolsa 5.0T 145-400 mm

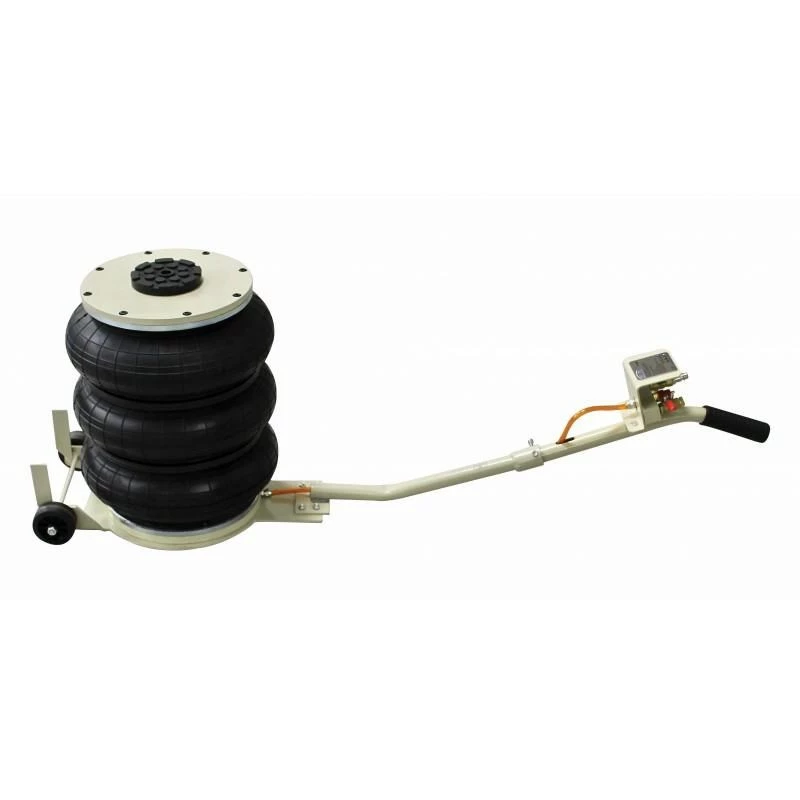

The SATRA S-ABJ5 is a professional-grade pneumatic lifting jack designed for heavy-duty industrial applications. With a lifting capacity of 5.0 tons and a triple-bag bellows system, it provides safe and efficient lifting for trucks, trailers, and heavy machinery. The robust steel frame and reinforced rubber bellows ensure durability and long service life.

Advantages

High lifting capacity of 5000 kg, wide lifting range from 145 mm to 400 mm, and triple-stage bellows for stable lifting. Equipped with an integrated safety valve and non-slip rubber pad for secure operation. Easy mobility with two durable wheels and manual lever control for precise positioning.

Suitable for

• Lifting heavy vehicles and trailers in workshops and garages
• Industrial maintenance and repair tasks
• Emergency roadside assistance

Key specifications

• Lifting Capacity: 5000 kg (5.0 Ton)
• Min. Lifting Height: 145 mm
• Max. Lifting Height: 400 mm
• Operating Pressure: 6 - 12 bar
• Air Inlet: 1/4" NPT
• Number of Bellows: 3-stage (Triple Bag)
• Handle Length: 780 mm
• Base Diameter: 250 mm
• Color: Red and Black

Recommendations

For optimal performance, use with a compressed air system capable of delivering 6-12 bar. Always follow safety guidelines and inspect the jack before each use.
