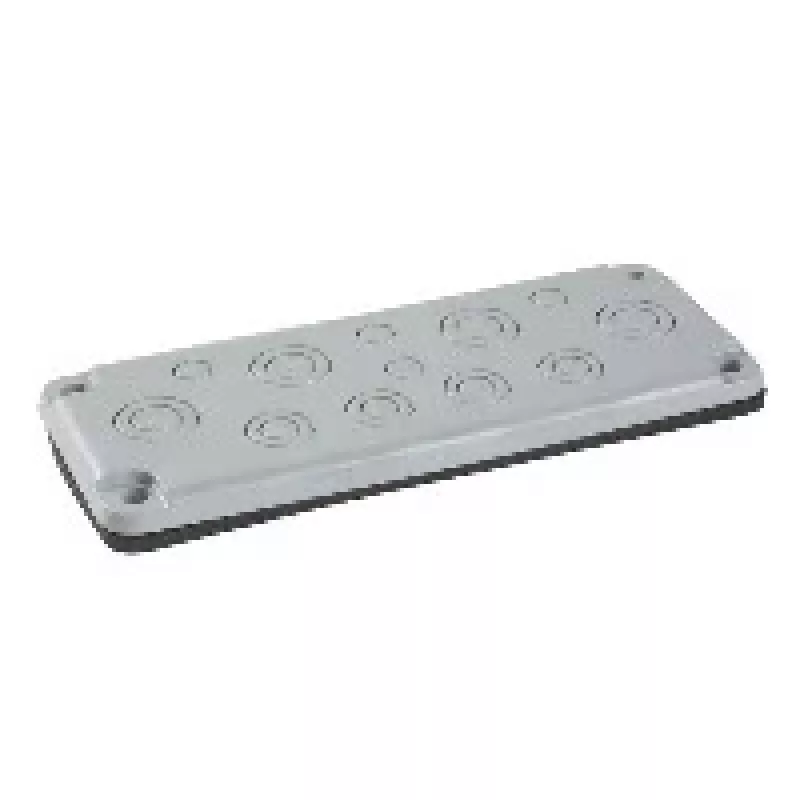

Schneider Electric Placa de Prensacables Aislante FL21 para Carcasa Spacial S3D, 200x150 mm, Gris RAL 7035

The Schneider Electric Insulating Cable Gland Plate FL21 is a high-quality accessory designed for use with Spacial S3D enclosures. Manufactured from thermosetting composite material, this plate provides excellent electrical insulation and mechanical strength. It is specifically sized to fit enclosures with a width of 200 mm, offering a plate dimension of 200 x 150 mm and a thickness of 10 mm. The smooth grey finish (RAL 7035) ensures a professional appearance while contributing to the enclosure's IP55/IP66 protection rating when installed with appropriate cable glands. With an IK10 impact resistance and fire resistance up to 960°C, this cable gland plate is built for demanding industrial environments.

Advantages

This cable gland plate offers superior insulation properties, reducing the risk of electrical faults. Its robust construction ensures long-term durability, and the easy installation at the bottom of the enclosure simplifies cable management. The plate's compatibility with Spacial S3D enclosures guarantees a perfect fit and maintains the enclosure's protective integrity.

Suitable for

• Industrial control panels
• Electrical distribution systems
• Automation and process control enclosures
• Any application requiring secure cable entry with high insulation

Key specifications

• Product Type: Cable Gland Plate
• Material: Thermosetting Composite
• Compatibility: Spacial S3D Enclosures
• Enclosure Width Compatibility: 200 mm
• Plate Dimensions (L x W): 200 x 150 mm
• Thickness: 10 mm
• Colour: Grey (RAL 7035)
• IP Protection Level: Contributes to IP55/IP66 (when installed with appropriate glands)
• IK Protection Level: IK10
• Fire Resistance: 960 °C (conforming to IEC 60695-2-11)
• Mounting Location: Bottom of Enclosure
• Surface Finish: Smooth
• Standards: IEC 62208

Recommendations

For optimal performance, use with compatible cable glands and ensure proper installation to maintain the enclosure's IP rating. This plate is an ideal choice for new installations or retrofitting existing Spacial S3D enclosures.
