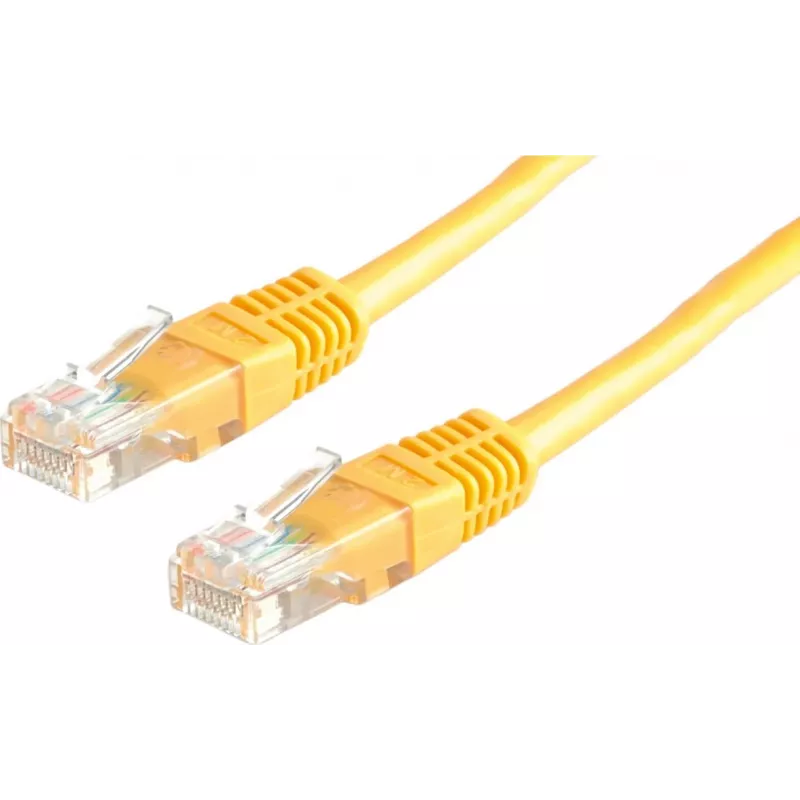

SECOMP Cable de red UTP Cat.6 (Class E) estándar, amarillo, 0,5 m (S1730)

Experience reliable Gigabit Ethernet connectivity with the SECOMP STANDARD UTP Patch Cable, engineered to meet Cat.6 (Class E) specifications and support data rates up to 1 Gbps over a 250 MHz bandwidth. This 0.5-meter yellow cable is ideal for high-density patching in data centers, office networks, and home setups where space is limited but performance cannot be compromised.

Overview

The SECOMP S1730 is a pre-assembled, unshielded twisted pair (U/UTP) patch cable featuring four stranded copper pairs (AWG 24/7) and snagless RJ45 connectors on both ends. Its LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces by reducing toxic smoke and corrosive gases in the event of fire, complying with IEC 60332-1 flame retardancy standards. The cable is wired to TIA/EIA-568B and is backward compatible with Cat5e and Cat5 networks.

What stands out

• Cat.6 performance with 250 MHz bandwidth for stable 1000BASE-T Gigabit Ethernet.
• Compact 0.5 m length reduces cable clutter and improves airflow in racks.
• LSZH jacket for enhanced fire safety in public and residential buildings.
• Snagless boot design protects connector locking tabs during installation.
• Stranded copper conductors for flexibility and durability in frequent moves.
• RoHS and REACH compliant, ensuring environmental responsibility.

Technical details

• Cable type: UTP patch cable, Cat.6 (Class E)
• Length: 0.5 m
• Colour: Yellow
• Connectors: RJ45 male to RJ45 male
• Shielding: U/UTP (unshielded)
• Conductor: Copper, AWG 24/7 stranded
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Wiring standard: TIA/EIA-568B
• Boot type: Snagless
• Max data rate: 1 Gbps (1000BASE-T)
• Frequency: 250 MHz
• Number of pairs: 4
• Outer diameter: ~5.9 mm
• Operating temperature: -20°C to +60°C
• Fire performance: IEC 60332-1
• Compliance: RoHS, REACH

Our verdict

A dependable and compact Cat.6 patch cable that delivers full Gigabit speed with a safety-focused LSZH jacket—perfect for short, high-density connections in any modern network environment.
