Servidor HPE ProLiant MicroServer Gen10+ v2 1 TB Intel Xeon E-2314 16 GB DDR4

The HPE ProLiant MicroServer Gen10+ v2 server 1 TB Intel Xeon E-2314 16 GB DDR4 is a compact entry-level server designed for small offices, home offices and branch locations that need reliable on-premises compute in a small footprint. It is equipped with an Intel Xeon E-2314 processor (2.8 GHz), 16 GB DDR4 memory and 1 TB internal storage inside an ultra micro tower chassis that can be positioned horizontally or vertically to fit limited workspace. The system supports up to four 3.5" drives and up to 64 GB of ECC UDIMM memory, offers RAID support and four onboard 1GbE network ports for common small-business networking requirements.

Advantages

This MicroServer balances compact size and server-grade features: Intel Xeon processing, ECC-capable DDR4 memory and hardware RAID support for data protection. The small chassis (ultra micro tower) provides flexible placement while still supporting up to four 3.5" drives and optional network expansion. Firmware security features such as Silicon Root of Trust and Secure Recovery reduce firmware-level risk, and optional TPM support adds platform authentication. Integrated remote management options and compatibility with HPE services simplify deployment and ongoing maintenance.

Suitable for

• Small office file and print server
• Branch office infrastructure and local backup
• Lightweight virtualization for a few VMs or containers
• Local application hosting (email, directory, small databases)
• Edge computing and on-premises hybrid-cloud gateway

Key specifications

• Processor family: Intel Xeon (Intel Xeon E-2314, 2.8 GHz)

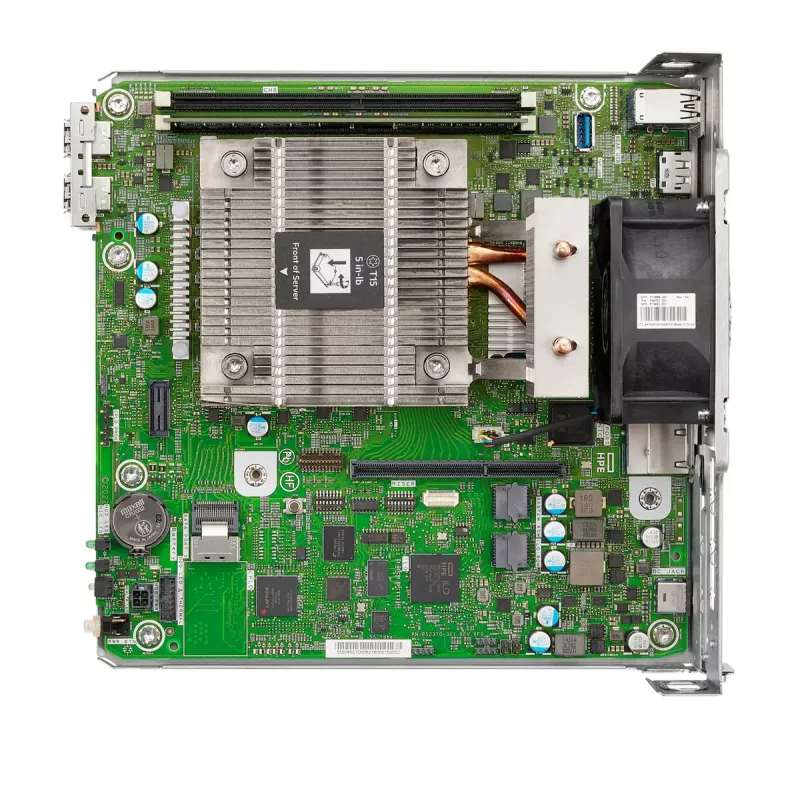

• Internal memory: 16 GB DDR4 (supports up to 64 GB, 2x DIMM slots)

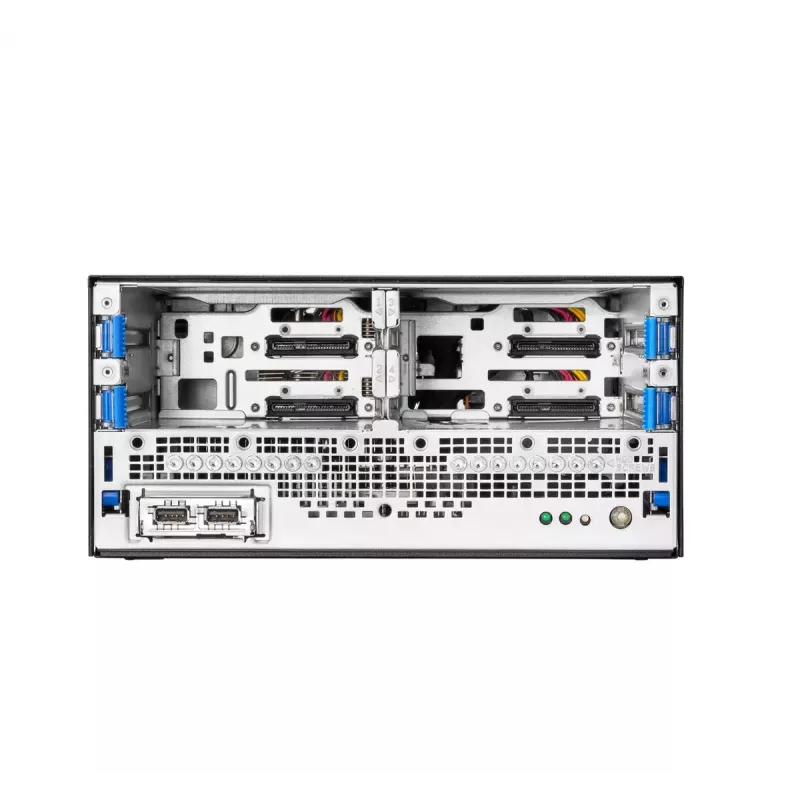

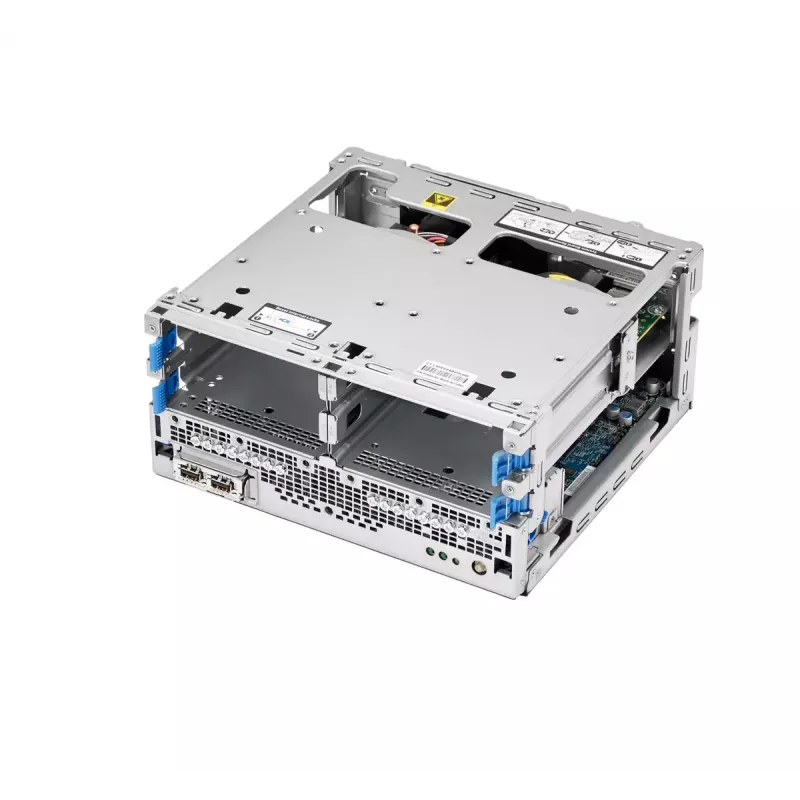

• Total storage capacity: 1 TB (1 x 3.5" drive installed; supports up to 4 drives)
• RAID support: Hardware RAID support available

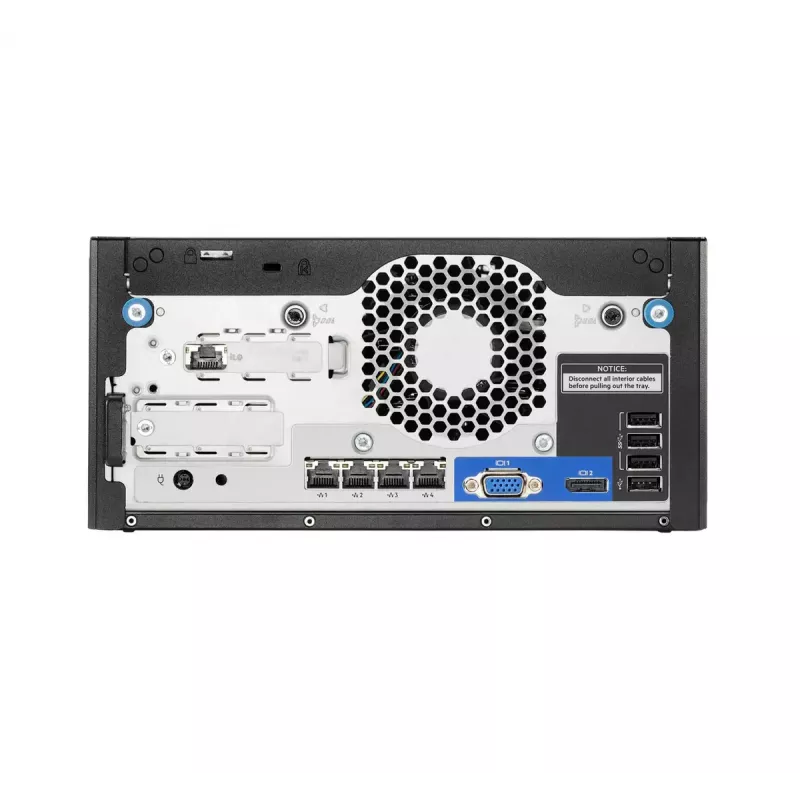

• Network: 4 x 1 GbE onboard NICs (additional NIC options supported)
• Power supply: 180 W

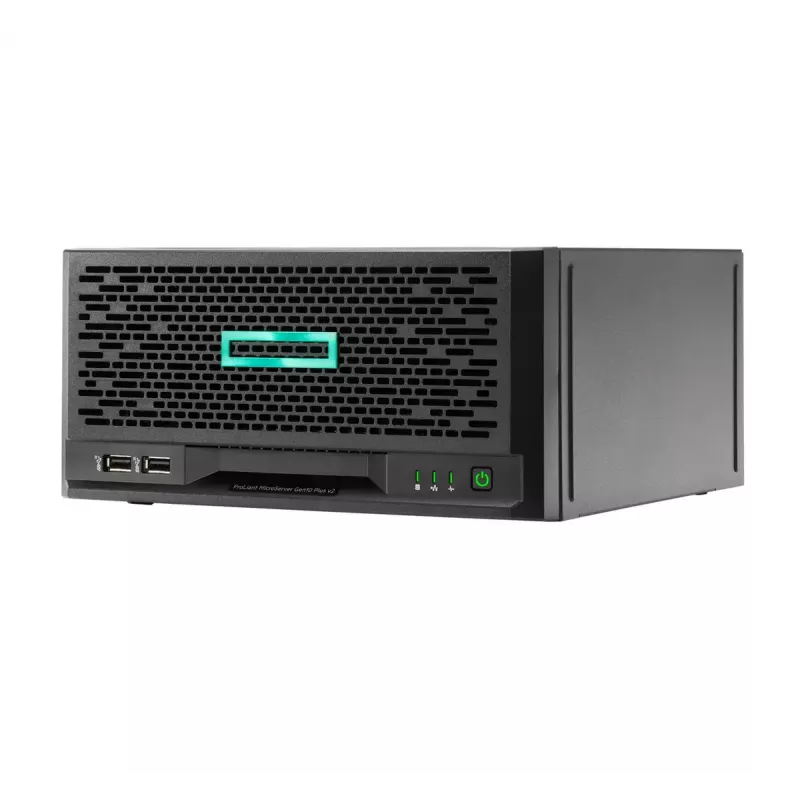

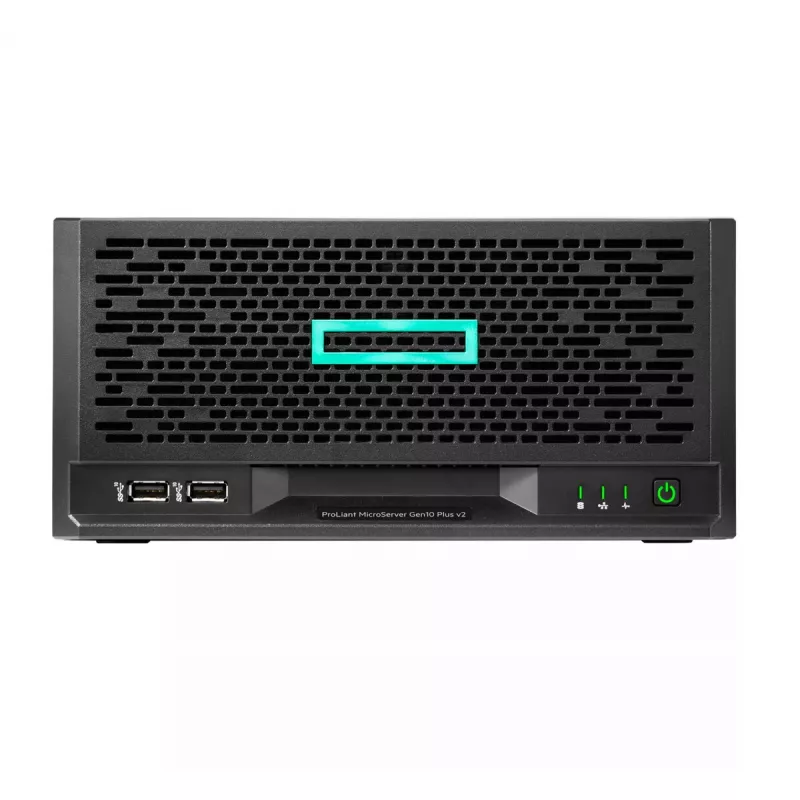

• Chassis: Ultra Micro Tower, can be placed horizontally or vertically
• Supported drive size: 3.5" HDDs
• Weight: approximately 4.23 kg

How to use

Install the server in a suitable, ventilated location either standing vertically or lying flat depending on space. Populate memory modules in the two DIMM slots to meet capacity requirements (up to 64 GB) and install additional 3.5" drives if more storage or RAID arrays are required. Configure RAID and provisioning using HPE Intelligent Provisioning or your preferred server management tools. Connect network cables to the onboard 1GbE ports or install optional network adapters for higher bandwidth. Enable iLO management or install the iLO enablement kit if remote dedicated management is required.

Recommendations

For small-business deployments, use ECC memory and configure RAID to protect critical data. Keep firmware and iLO up to date and enable Secure Recovery to reduce risk from compromised firmware. Consider HPE Pointnext services for professional deployment and ongoing support, and assess network and storage expansion options if you anticipate growth beyond the current 1 TB configuration.
