SHIVERPEAKS Cable de alimentación fotovoltaica BC01 a CEE 7/7 Schuko, 5 m, 16 A, 250 V, IP67, negro BS02-40055

With a robust 16 A current rating and 250 V AC voltage capacity, this SHIVERPEAKS power feed-in cable safely delivers up to 3680 W from your balcony power plant to the grid. The 5-metre length offers flexible placement, while the IP67-rated BC01 connector ensures reliable outdoor performance.

Overview

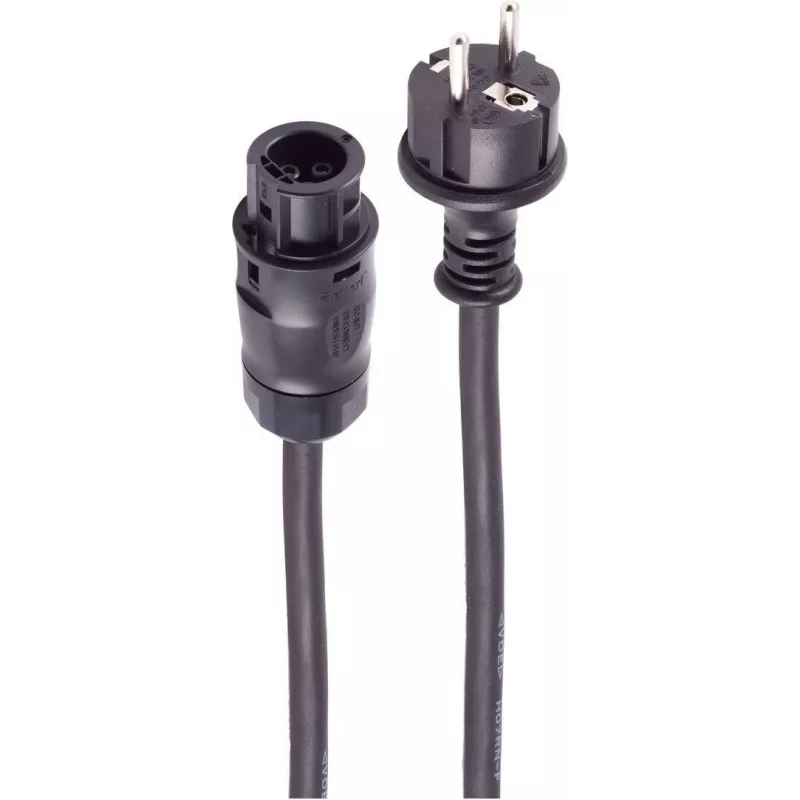

Engineered for balcony power plants and micro-inverter systems, this cable bridges the gap between your solar setup and a standard household socket. The BC01 female connector plugs directly into compatible micro-inverters, while the CEE 7/7 Schuko male connector fits any standard European wall outlet. The 3 x 1.5 mm² copper conductors minimise resistance and heat build-up, ensuring stable power transmission even under full load.

What stands out

• High current capacity: 16 A continuous rating supports up to 3680 W at 230 V.
• Weatherproof design: IP67 connector and UV-resistant jacket withstand outdoor conditions.
• Flexible installation: 5 m length gives you freedom to position your inverter optimally.
• Safety certified: CE and RoHS compliance, plus oil-resistant insulation for added durability.

Technical details

• Connector 1: Betteri BC01 (female)
• Connector 2: CEE 7/7 Schuko (male)
• Cable length: 5 m
• Conductor cross-section: 3 x 1.5 mm²
• Conductor material: Copper
• Jacket material: Robust PVC / Rubber (outdoor rated)
• Ingress protection: IP67 (BC01), IP20 (Schuko)
• Operating temperature: -20°C to +70°C
• Certifications: CE, RoHS

Our verdict

A reliable and safe choice for connecting your balcony solar system. The combination of high power handling, weather resistance, and standard connectors makes it a practical solution for most micro-inverter setups.
