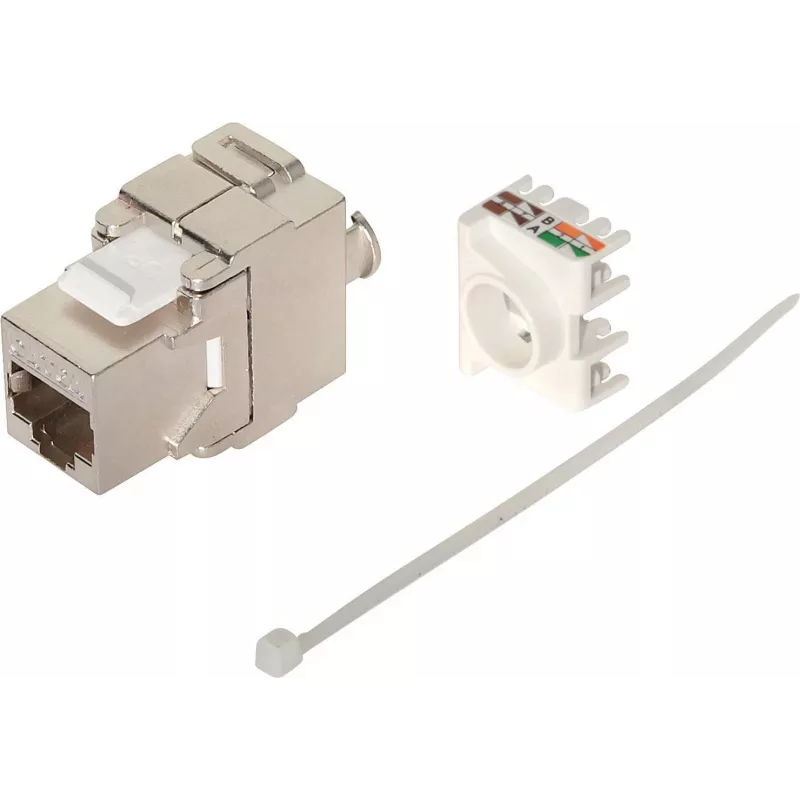

SHIVERPEAKS S/CONN maximum connectivity 10x Keystone Cat.6A certificado, 500 MHz, carcasa de fundición inyectada, totalmente apantallado – pack de 10 (75004-10SET)

Network installers and IT technicians working in high-density patch panels or wall outlets will appreciate the SHIVERPEAKS S/CONN maximum connectivity Keystone Cat.6A modules. This pack of 10 fully shielded jacks delivers certified performance up to 500 MHz, ensuring reliable 10-Gigabit Ethernet links in demanding environments. Each module features a robust die-cast metal housing that provides excellent EMI protection and durability, making it suitable for both commercial and industrial installations.

Key specifications

• Category: Cat.6A (500 MHz bandwidth)
• Shielding: Fully shielded (FTP/STP) with die-cast metal housing
• Connector type: RJ45 female to IDC (tool-free termination)
• Wiring scheme: TIA/EIA 568A/B compatible
• Contact plating: Gold-plated for reliable connections
• Wire gauge support: 22-24 AWG solid or stranded
• Pack size: 10 modules
• Certification: Cat.6A certified

Why choose it

These keystone jacks are engineered for high-performance networking where signal integrity is critical. The full metal shielding and die-cast housing minimize alien crosstalk and electromagnetic interference, ensuring stable 10GBase-T transmission. The gold-plated contacts resist corrosion and maintain low contact resistance over thousands of mating cycles. The tool-free IDC termination speeds up installation while providing a secure, gas-tight connection for both solid and stranded conductors.

Ideal use cases

• Data centers and server rooms requiring Cat.6A structured cabling
• Office networks with high bandwidth demands (video conferencing, large file transfers)
• Industrial environments with high EMI (near motors, welding equipment)
• Retrofit projects where existing keystone panels need upgrading to Cat.6A

Good to know

The modules fit standard keystone openings (19.2 x 14.9 mm) and are compatible with most patch panels, wall plates, and surface-mount boxes. The die-cast housing provides superior mechanical stability and grounding. For best performance, use Cat.6A shielded cable and shielded RJ45 plugs. The pack of 10 is ideal for small to medium installations or as spare stock for maintenance teams.
