Shuttle PE90 - fuente de alimentación, 90 vatios, salida: 19V DC, máx. 4,74 A, refrigeración: pasiva, sin ventilador

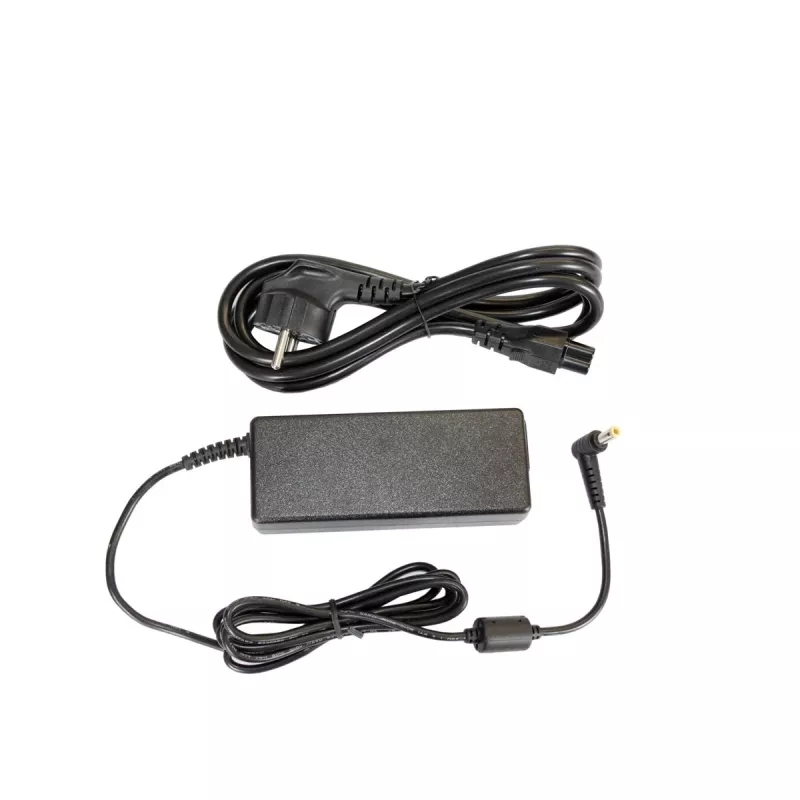

The Shuttle Accessory PE90 is an external AC-to-DC power adapter designed as a replacement or spare for compatible Shuttle products. It delivers up to 90 W with a 19 V DC output and a maximum current of 4.74 A. The compact black adapter is intended for indoor use and includes an AC cable; it meets CE and WEEE certifications.

Advantages

The Shuttle PE90 offers passive cooling for silent operation without a fan and supports a wide input voltage range of 100–240 V, allowing use in various regions. Its compact form factor and included AC cable simplify replacement and installation while providing the required 90 W power for compatible Shuttle devices.

Suitable for

• Replacing a lost or faulty Shuttle power adapter
• Powering compatible Shuttle mini PCs and small form-factor devices requiring 19 V DC, 4.74 A
• Indoor use where a compact, quiet adapter is needed

Key specifications

• Output: 19 V DC, max. 4.74 A (90 W)
• Input voltage: 100–240 V AC
• Cooling: Passive (fanless)
• Colour: Black
• Dimensions: 127 x 51 x 3.05 mm
• Weight: 0.31 kg
• Includes: AC cable
• Certifications: CE, WEEE

How to use

Connect the AC cable to the adapter and plug it into a suitable mains outlet within the specified input range (100–240 V). Attach the adapter's DC plug to the compatible Shuttle device's power input. Verify that the device accepts 19 V DC and that the adapter's 90 W power rating meets the device's requirements before continuous use.

Recommendations

Use the adapter only indoors and in dry environments. Avoid covering the adapter during operation to maintain passive cooling efficiency. If the adapter shows signs of damage, discontinue use and replace it with a certified unit.
