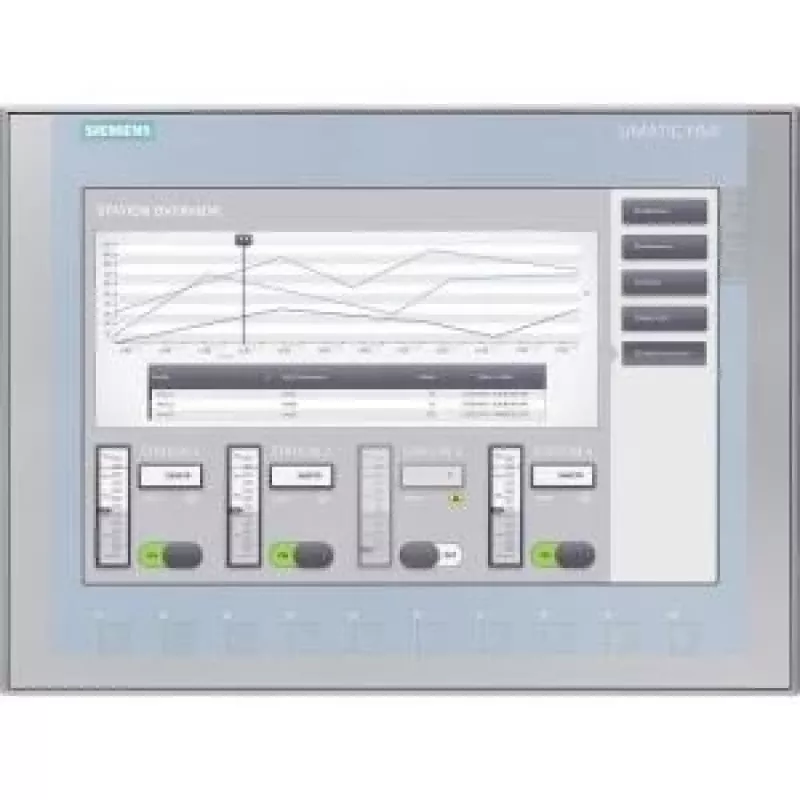

Siemens SIMATIC HMI KTP1200 Basic panel táctil, 12,1" TFT, 1280x800, PROFINET, 24V DC, 6AV2123-2MB03-0AX0

The KTP1200 Basic stands out for its large 12.1-inch widescreen TFT display with 16.7 million colors, delivering sharp visuals for complex machine visualizations. Unlike smaller panels, it offers ample screen real estate for detailed process screens, while the resistive touch and 10 function keys provide flexible operation even with gloves.

Highlights

• 12.1" TFT widescreen display, 1280 x 800 pixels, 16.7 million colors
• Resistive touch screen plus 10 tactile function keys
• Integrated PROFINET (RJ45) and MPI/PROFIBUS DP (RS485/RS422) interfaces
• 10 MB user memory for HMI projects
• Panel mounting, IP65 front protection for harsh industrial environments

In daily use

Configured with TIA Portal WinCC Basic V13 SP1 or higher, the KTP1200 Basic simplifies commissioning and diagnostics. Its 24 V DC supply (19.2–28.8 V) and low 15 W consumption fit standard control cabinets. The USB host port allows direct connection of peripherals, while the robust plastic enclosure withstands temperatures from 0 to 50 °C.

Full specifications

• Display: 12.1" TFT widescreen, 1280 x 800 pixels, 16.7 million colors
• Control elements: Resistive touch screen, 10 function keys
• Processor: ARM
• User memory: 10 MB
• Interfaces: 1x RJ45 (PROFINET), 1x RS485/RS422 (MPI/PROFIBUS DP), 1x USB Host Type A
• Power supply: 24 V DC (19.2–28.8 V), max 15 W
• Configuration software: TIA Portal WinCC Basic V13 SP1 or higher
• Protection: Front IP65 (NEMA 4X indoor), rear IP20
• Mounting: Panel mounting
• Enclosure material: Plastic
• Operating temperature: 0 to 50 °C

Final note

For machine-level visualization requiring a large, clear display and reliable touch operation, the KTP1200 Basic delivers Siemens quality and seamless integration into SIMATIC automation systems.
