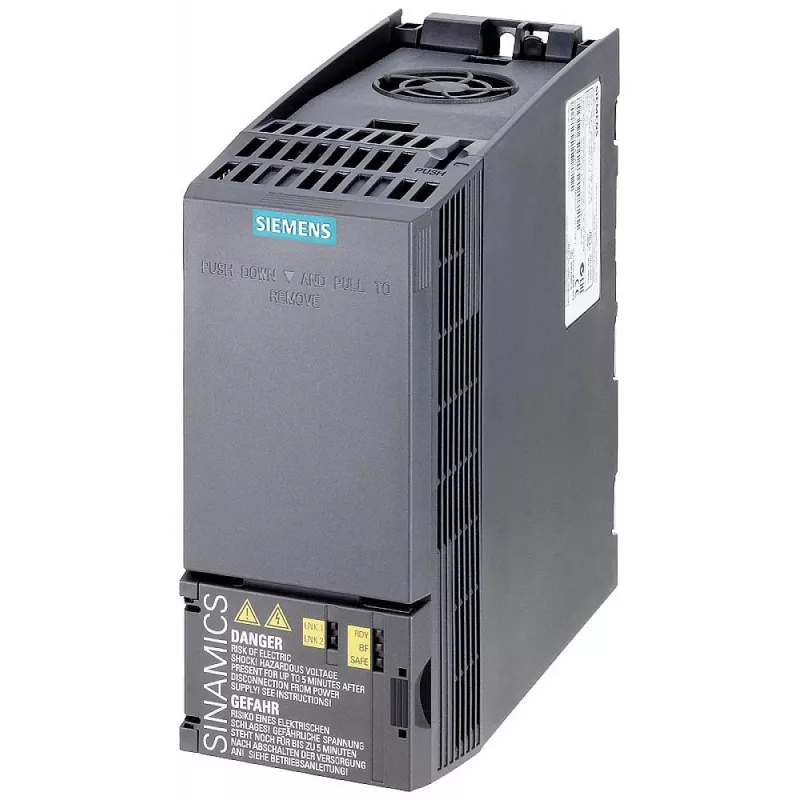

Siemens SINAMICS G120 PM240-2 módulo de potencia 6SL3210-1KE15-8AF2, 5,5 kW Heavy Duty, 380-480 V 3 fases, IP20

The Siemens 6SL3210-1KE15-8AF2 is a PM240-2 power module from the SINAMICS G120 series, engineered for demanding variable frequency drive applications. Unlike modular solutions that require separate braking hardware, this unit integrates a braking chopper and a Class A filter, reducing panel space and wiring effort. It delivers 5.5 kW in heavy duty or 7.5 kW in light duty, with a wide 380–480 V three-phase input range and output frequencies up to 550 Hz for precise motor control.

Highlights

• Integrated braking chopper for dynamic braking without external components
• Class A integrated filter for compliance in industrial environments
• Dual duty ratings: 5.5 kW heavy duty / 7.5 kW light duty
• High efficiency of 97.5% reduces energy losses
• Wall mounting for straightforward installation

In daily use

The PM240-2 handles continuous operation up to 50 °C in heavy duty and 40 °C in light duty, with internal air cooling and IP20 protection for cabinet installation. Its 12.5 A rated output current (heavy duty) supports a wide range of motors, while the 25 A maximum current provides short-term overload capability. The module operates from 47 to 63 Hz input frequency, making it suitable for global industrial power networks.

Full specifications

• Input voltage: 380 - 480 V AC, 3-phase
• Input frequency: 47 - 63 Hz
• Rated power: 5.5 kW (heavy duty), 7.5 kW (light duty)
• Rated output current: 12.5 A (heavy duty), 16.5 A (light duty)
• Maximum output current: 25.0 A
• Output frequency: 0 - 550 Hz
• Integrated filter: Class A
• Integrated braking chopper: Yes
• Protection class: IP20
• Cooling method: Internal air cooling
• Efficiency: 97.5%
• Operating temperature: -10 to +50 °C (heavy duty), -10 to +40 °C (light duty)
• Relative humidity: < 95% (non-condensing)
• Mounting type: Wall mounting

Final note

This power module is a core component for building a complete SINAMICS G120 drive system; it requires a Control Unit (CU) for operation.
