Sistema de alimentación ininterrumpida SAI Armac R/1000I/PF1 1 kVA 1000 W 8 salidas AC

Armac R/1000I/PF1 is an online rackmount UPS designed to provide reliable power protection for equipment in 19" rack cabinets and other installations. With a 1 kVA (1000 W) output and a power factor of 1.0, this UPS delivers a full sine wave output and double-conversion topology for ideal electrical parameters and zero transfer time between mains and battery operation. The unit includes eight IEC C13 outlets, a USB Type-B communication port, and a 9 Ah lead‑acid battery in a 2U form factor.

Advantages

The UPS maintains a high power factor of 1.0, ensuring that nearly all input power is available as output power and enabling up to 1000 W of connected load. Continuous double-conversion operation provides immediate reaction to mains disturbances without switching delay, reducing the risk of damage to sensitive equipment. The device offers extended battery life through an adjustable cut-off voltage accessible from the LCD panel and an automatic battery discharge test every 60 days. Built-in processor control, automatic battery charging and auto-restart on mains return increase operational reliability, while integrated overload protection safeguards connected devices.

Suitable for

• Server rooms and network cabinets (19" racks)
• High‑power workstations and desktop computers
• Sensitive equipment requiring pure sine wave output (laser printers, scanners)
• Motor- or heater-driven devices such as gates, shutters or heating controllers
• Environments where multiple devices need centralized backup (up to 8 outlets)

Key specifications

• Model: Armac R/1000I/PF1
• Output power: 1000 W
• Apparent power: 1 kVA
• Power factor: 1.0
• Battery: 9 Ah lead‑acid

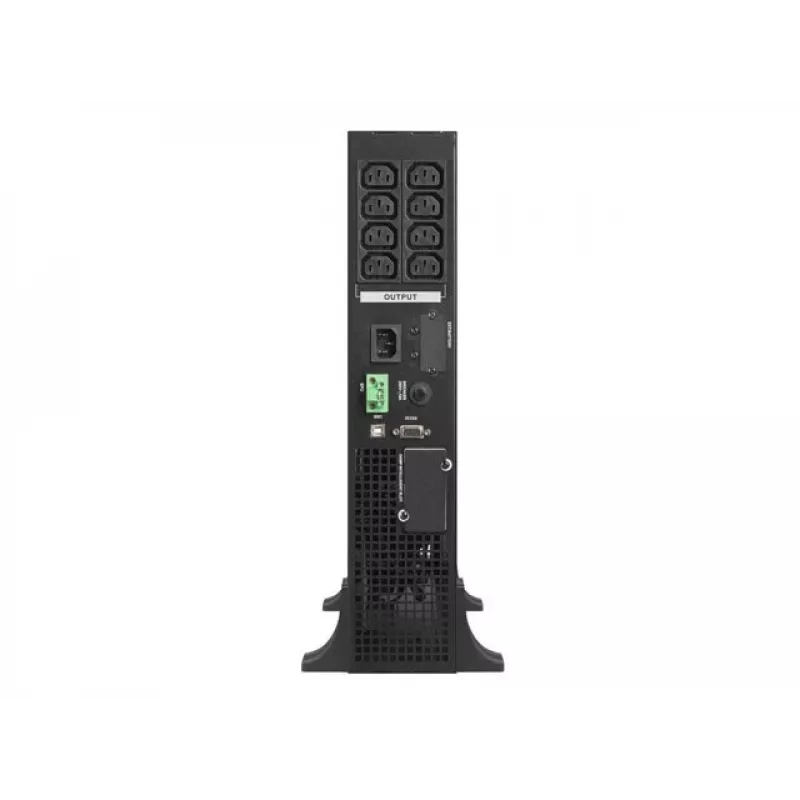

• Output sockets: 8 × IEC 320 C13

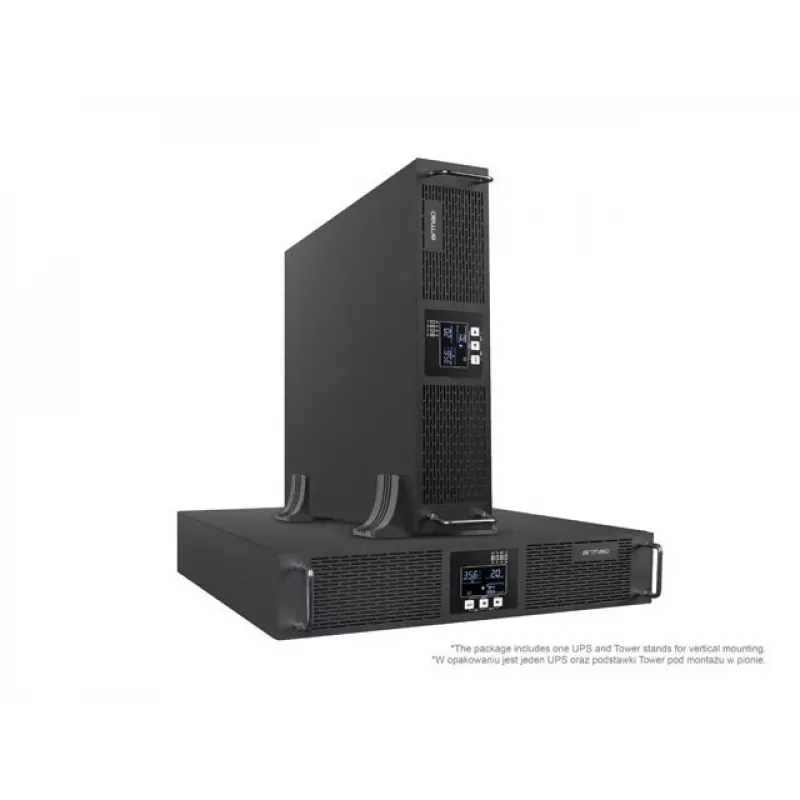

• Form factor: 2U rackmount (mounting ears and vertical stands included)
• Communication: USB Type‑B, RS‑232 support for PowerManager II
• Weight: 13.5 kg
• Colour: Black

How to use

Install the UPS in a 19" rack using the supplied mounting ears or optionally with the R/0019 rail set for improved stability; vertical installation is possible using the included stands and leg extensions. Connect important devices to the IEC C13 outlets, attach the USB Type‑B or RS‑232 cable to a computer and run PowerManager II for monitoring and controlled shutdowns. Configure the cut‑off voltage and other settings from the front LCD panel as needed. The UPS charges its battery automatically and performs an automatic battery discharge test every 60 days.

Recommendations

For stable operation, mount the UPS securely in the rack or use the recommended rail set when installing additional battery packs. Use the PowerManager II software for monitoring and graceful shutdown procedures, and review the LCD settings to set the preferred cut‑off voltage to balance runtime and battery longevity.
