Sistema de videoconferencia Viewsonic TeamJoin TRS10 Ethernet LAN Bluetooth 10,1" IPS

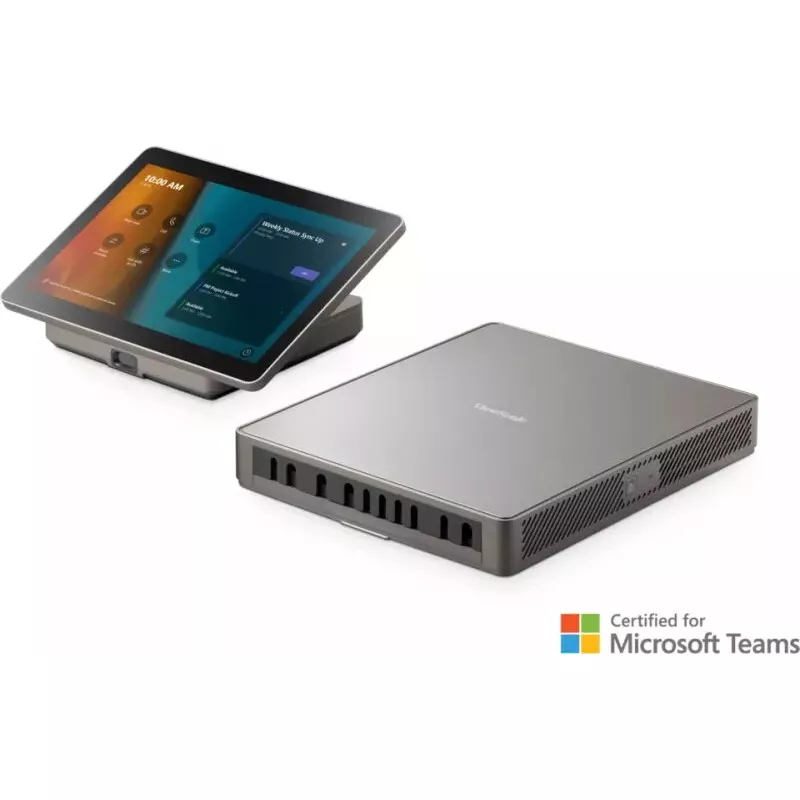

The ViewSonic TeamJoin TRS10 is a Microsoft Teams Rooms video conferencing system that combines a Computing Engine (MPC310-W31-TU) and a 10.1" Touch Console (MRC1010-TN) to provide a ready-to-deploy solution for meeting rooms. Equipped with a 12th Gen Intel processor, Windows 11 IoT Enterprise, Ethernet LAN and Bluetooth connectivity, and a 10.1" Full HD IPS anti-glare touch display (1920 x 1200), the TRS10 bundle is designed to simplify hybrid collaboration and scale to different room sizes.

Advantages

The TRS10 bundle offers an integrated Microsoft Teams Rooms experience with built-in Teams software and streamlined cable management for easier installation and maintenance. Enterprise-grade security is provided by TPM 2.0, 12th Gen Intel security features and Windows 11 IoT Enterprise with Smart App Control. The touch console supports Direct HDMI Ingest for BYOD presentations, while presence detection automatically activates the system when people arrive.

Suitable for

• Small and medium meeting rooms
• Hybrid meetings and remote collaboration
• Boardrooms and huddle spaces requiring quick deployment
• Rooms where simple BYOD presentation and centralized control are needed

Key specifications

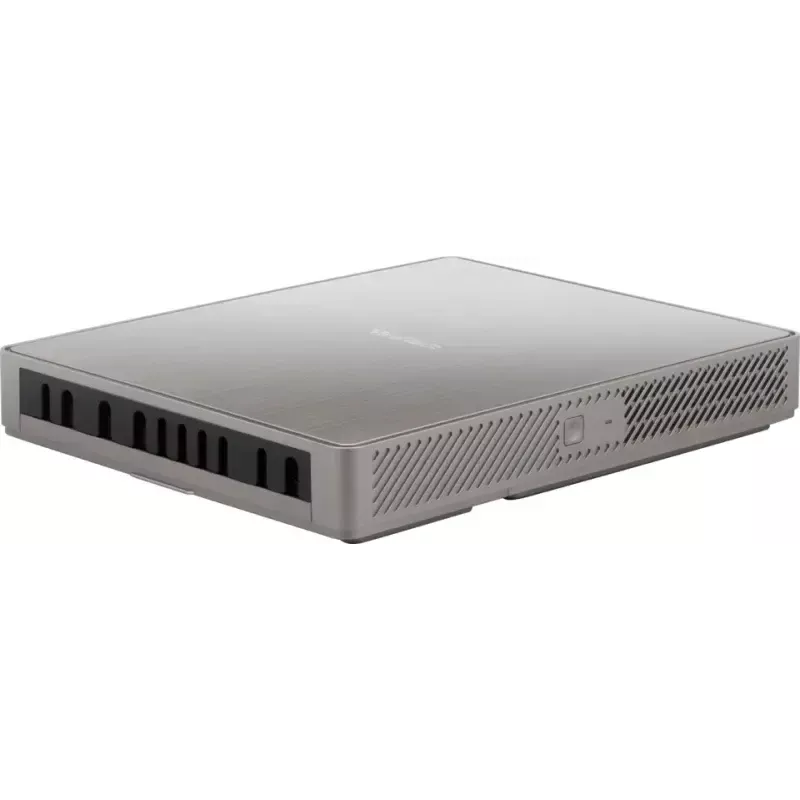

• Bundle components: Computing Engine (MPC310-W31-TU) + Touch Console (MRC1010-TN)

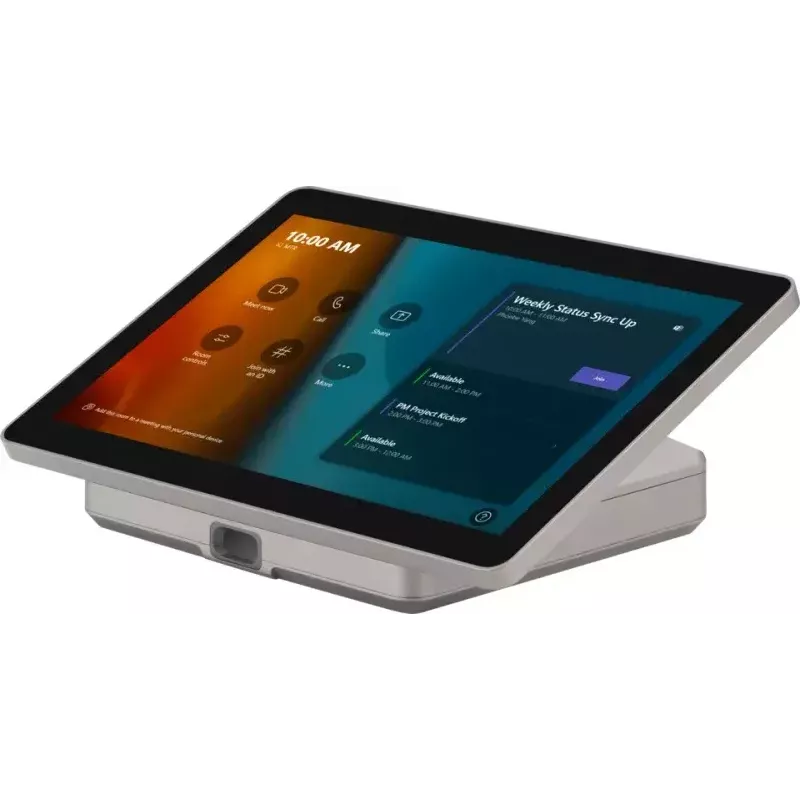

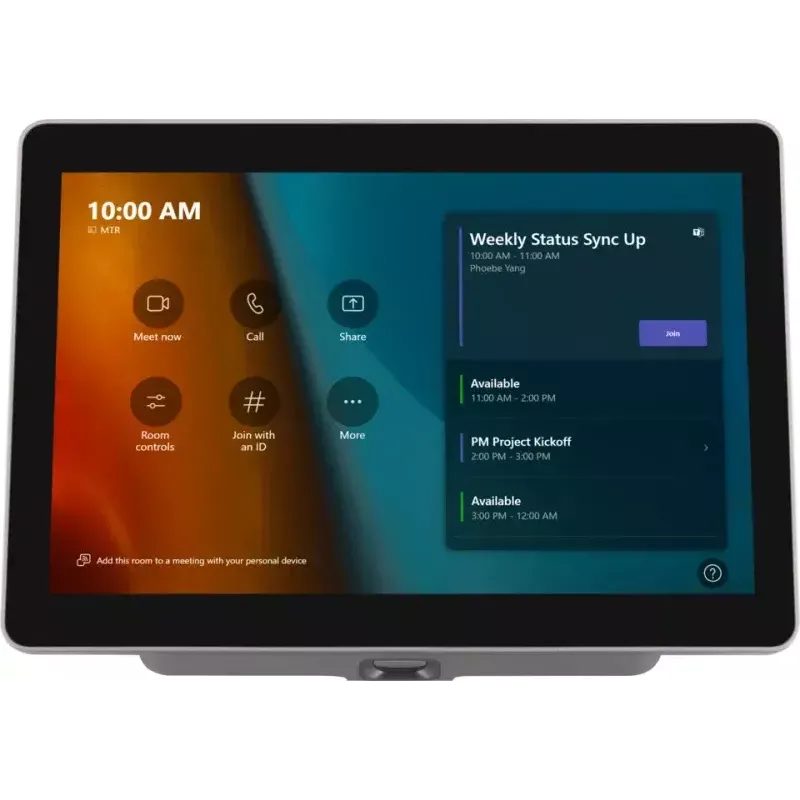

• Display: 10.1" Full HD IPS anti-glare touch panel, 1920 x 1200
• Processor: 12th Gen Intel (integrated in MPC310-W31-TU)
• Operating system: Windows 11 IoT Enterprise with Smart App Control
• Security: TPM 2.0, Intel security features (Threat Detection Technology, Control-Flow Enforcement)
• Connectivity: Ethernet LAN, Bluetooth; Direct HDMI Ingest on touch console
• Colours: Black, Grey
• MPN / EAN: TRS10 / 766907027761

How to use

Install the Computing Engine in the meeting room and connect it to your display and network using the integrated cable-management provisions. Mount or place the MRC1010-TN 10.1" touch console where meeting participants can reach it, and connect its HDMI input for BYOD presentations as needed. The built-in Microsoft Teams Rooms software on Windows 11 IoT Enterprise handles meeting scheduling, joining and content sharing through the touch console interface. Presence detection will wake the system automatically when someone enters the room.

Recommendations

For reliable operation, keep Windows 11 IoT Enterprise and Teams Rooms software up to date, secure network access with standard IT policies, and install the computing engine and touch console in locations that allow easy cable routing and user access. Use the Direct HDMI Ingest for quick BYOD presentations and enable presence detection for faster meeting starts.
