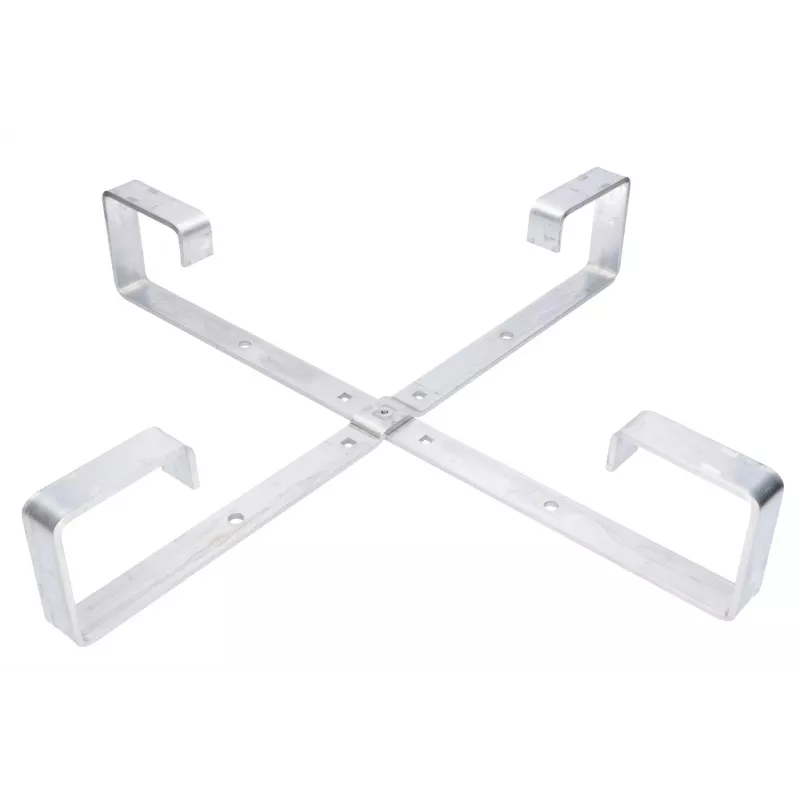

Soporte para cables Extralink marco de cuatro brazos para almacenamiento de cables 600x600x100mm

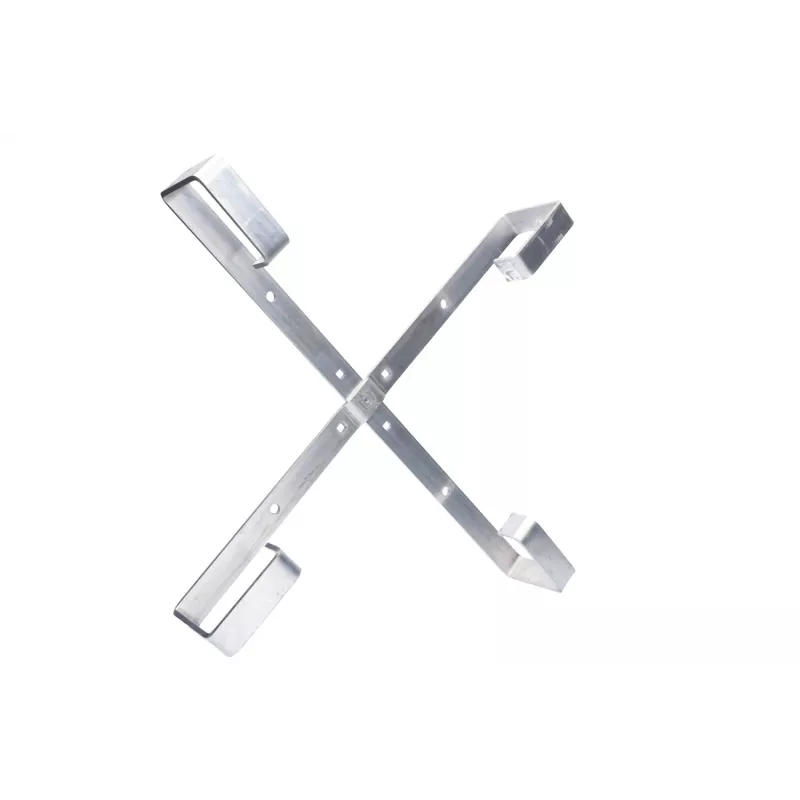

The Extralink Four arms frame for cable storage is an aluminium rack designed to store excess fibre optic and other cables on poles or walls while maintaining the correct cable bending radius. Constructed from 30 mm x 5 mm aluminium flat bars, the frame measures 600 x 600 x 100 mm and provides a durable, lightweight solution for organised cable storage.

Advantages

The aluminium construction ensures corrosion resistance and low weight while preserving mechanical strength. The 600 x 600 x 100 mm dimensions offer sufficient space for coiling excess cable without compromising the required bending radius. The flat-bar design enables straightforward mounting and stable cable support.

Suitable for

• Storage of excess fibre optic cable on electrical poles
• Wall-mounted cable organisation in telecom and network installations
• Temporary or permanent cable coiling where maintaining bending radius is required

Key specifications

• Model: Extralink Four arms frame for cable storage (EX.2473)
• Dimensions: 600 x 600 x 100 mm
• Material: 30 mm x 5 mm aluminium flat bars
• Mounting: Wall or pole mounting
• EAN: 5902560362473

How to use

Mount the frame securely to a wall or pole using appropriate fixings for the installation surface. Coil the excess cable around the arms or inside the frame so that the cable follows a gentle curve, preserving the manufacturer's specified minimum bending radius. Ensure that cables are arranged neatly and fixed if necessary to prevent slippage or wind-induced movement.

Recommendations

Check the fibre optic cable manufacturer's minimum bending radius and do not exceed it when coiling. Use corrosion-resistant fasteners for outdoor pole installations and inspect the mounting and cable routing periodically for mechanical integrity.
