StarTech Cable adaptador de alimentación LP4 a SATA 15 cm (6") - conector hembra a conector macho

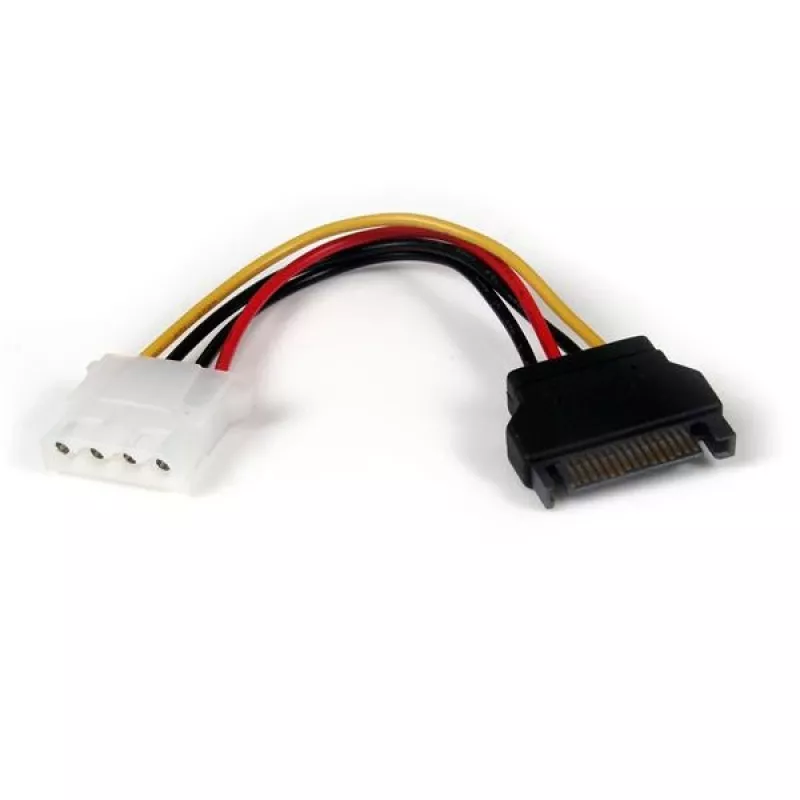

This StarTech LP4 to SATA Power Adapter Cable allows you to power SATA hard drives, solid state drives, or optical drives from an LP4 (Molex 4-pin) power supply. With a length of 6 inches (15.24 cm), it provides a convenient solution for connecting SATA devices in tight spaces. The cable features a SATA Power (15-pin) female connector on one end and an LP4 (Molex 4-pin) male connector on the other, ensuring reliable power delivery.

Advantages

Easily power SATA devices from older LP4 power supplies without the need for additional adapters. The compact 6-inch length reduces cable clutter and improves airflow inside your computer case. Built with 18 AWG wires and nickel-plated connectors for dependable performance and durability.

Suitable for

• Powering SATA hard drives, SSDs, and optical drives from LP4 power connectors
• Upgrading or building PCs with legacy power supplies
• Data center and server applications requiring reliable power connections

Key specifications

• Cable Type: SATA Power Adapter Cable
• Connector A: SATA Power (15-pin) Female
• Connector B: LP4 (Molex 4-pin) Male
• Cable Length: 6 inches (15.24 cm)
• Wire Gauge: 18 AWG
• Jacket Material: PVC
• Color: Multi-color
• Connector Plating: Nickel
• Max Voltage Rating: 12V
• Power Delivery: 5V, 12V
• Number of Conductors: 4
• RoHS Compliant: Yes
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -20°C to 80°C (-4°F to 176°F)
• Humidity: 20-80% RH (non-condensing)

Recommendations

For best performance, ensure your power supply can deliver sufficient current on the 5V and 12V rails. This adapter is ideal for connecting SATA devices in systems with limited space.
