STASIŃSKI SP. Z O.O. ZKL-18 Conector angular para tubo rígido, 18 mm, 90°, Blanco (1 ud.)

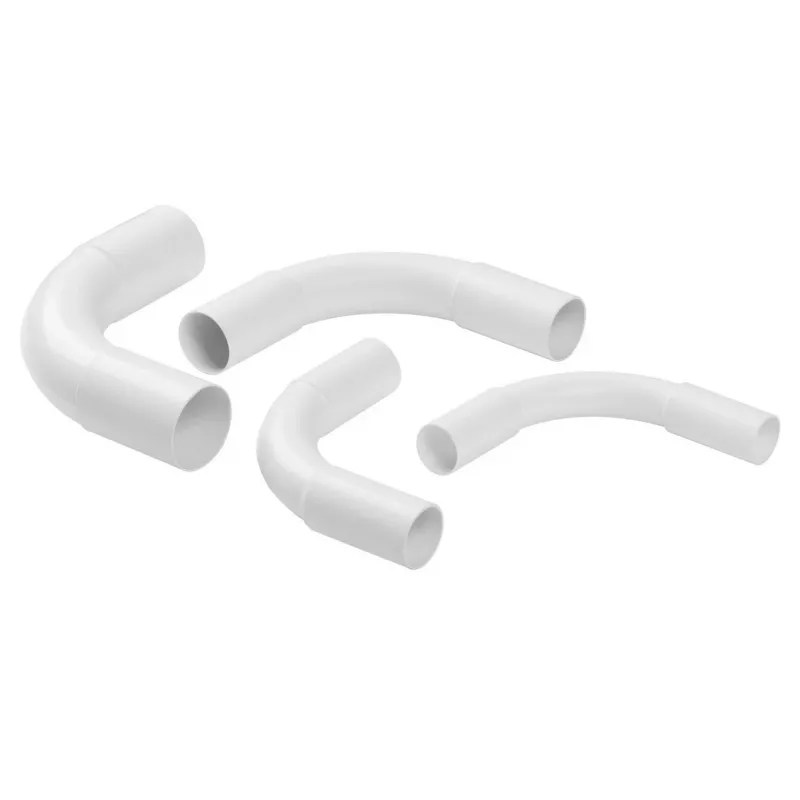

Routing rigid electrical conduits around corners often requires makeshift bends that compromise protection and slow down installation. The STASIŃSKI SP. Z O.O. ZKL-18 eliminates that hassle with a factory-molded 90° angle connector made for 18 mm rigid conduits. Its push-fit design snaps securely onto conduit ends, creating a clean, professional turn without heat bending or extra fittings.

Who is it for

Electricians and installers working on surface or recessed wiring in residential, commercial, or light industrial settings. If you use 18 mm rigid PVC conduits and need reliable, code-compliant corners, this connector is a direct fit.

Main features

• 90° angled body for neat directional changes in conduit runs
• Compatible with 18 mm nominal diameter rigid electrical conduits
• Durable PVC construction with self-extinguishing properties
• Push-fit/snap-on mounting – no glue or tools required
• White finish blends with standard white conduit systems
• Complies with PN-EN 61386-21 for conduit systems

Specifications

• Product type: Angled conduit connector
• Nominal conduit diameter: 18 mm
• Angle: 90°
• Material: PVC (Polyvinyl Chloride)
• Colour: White
• Application: Electrical installations (surface & recessed)
• Compression resistance: 750 N
• Impact resistance: Light
• Operating temperature range: -5°C to +60°C
• Flammability rating: Self-extinguishing
• IP rating: IP40
• Halogen-free: No
• Standard compliance: PN-EN 61386-21
• Mounting method: Push-fit / Snap-on
• Quantity per pack: 1 piece

Tips

For a secure connection, ensure the conduit end is cut square and free of burrs before snapping the connector on. When planning conduit runs, account for the connector's outer dimensions to maintain proper spacing from walls and other services.
