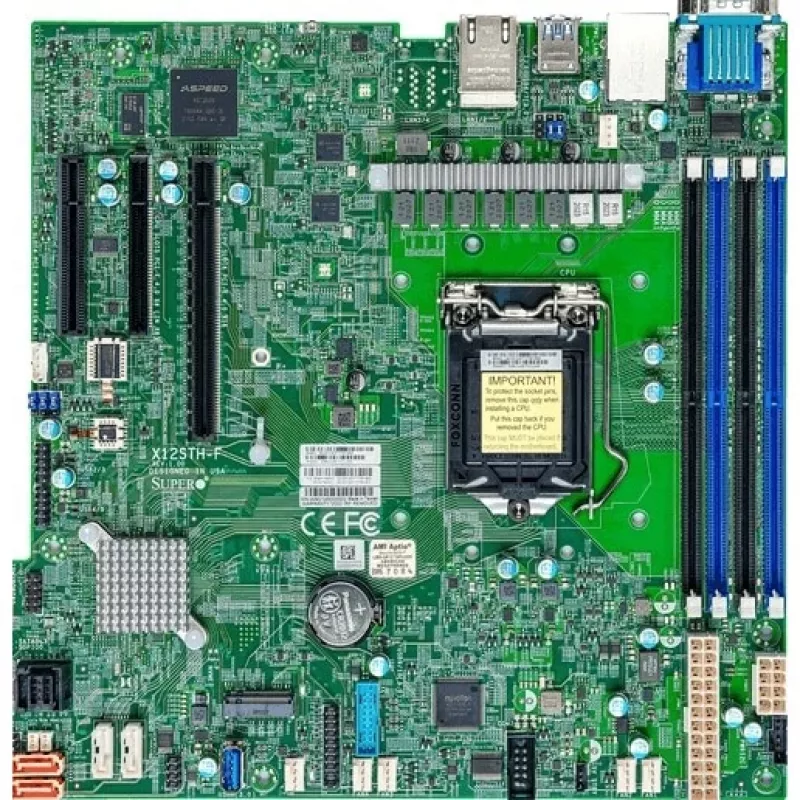

Supermicro X12STH-F-O placa base - Micro-ATX - LGA 1200 - Intel C252 - DDR4 - doble 1GbE - IPMI

The Supermicro X12STH-F-O is a high-performance Micro-ATX motherboard designed for Intel Xeon E-2300 and 10th/11th Gen Core processors. Featuring the Intel C252 chipset, it delivers robust reliability and advanced management capabilities for entry-level servers and workstations.

Advantages

Equipped with IPMI 2.0 and ASPEED AST2600 BMC, the X12STH-F-O provides remote KVM over IP for efficient server management. Dual Intel i210-AT 1GbE LAN ports ensure reliable network connectivity, while support for ECC and non-ECC DDR4 memory up to 128GB offers flexibility and data integrity.

Suitable for

• Small business servers
• Entry-level workstations
• Network attached storage (NAS) builds
• Virtualization environments

Key specifications

• CPU Socket: LGA 1200
• Supported CPUs: Intel Xeon E-2300, 11th/10th Gen Core i9/i7/i5/i3, Pentium, Celeron
• Chipset: Intel C252
• Form Factor: Micro-ATX
• Memory: 4x DDR4 DIMM slots, up to 128GB DDR4-3200 ECC/non-ECC UDIMM
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x4 (in x8), 1x PCIe 3.0 x4
• Storage: 8x SATA3 (6Gbps), 1x M.2 PCIe 4.0 x4 (2280/22110)
• LAN: Dual 1GbE (Intel i210-AT)
• Management: IPMI 2.0 with KVM over IP (ASPEED AST2600)
• Video: DisplayPort via BMC
• USB: 2x USB 3.2 Gen1 (rear), 2x USB 3.2 Gen1 (header), 4x USB 2.0 (header)
• RAID: Intel RSTe (RAID 0,1,5,10)
• TPM Header: Yes (TPM 2.0)
• Power: 24-pin ATX, 8-pin EPS 12V

Recommendations

Ideal for building a cost-effective server or workstation with remote management capabilities. Pair with Intel Xeon E-2300 processors and ECC memory for maximum stability.
