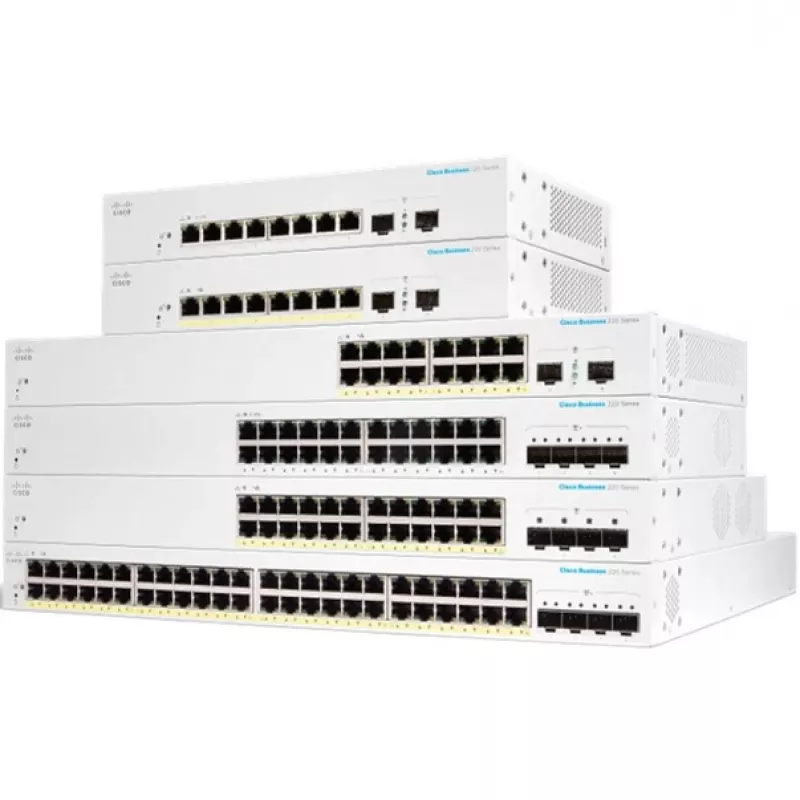

Switch Gigabit Ethernet L2 gestionado Cisco CBS220-48FP-4X-EU

The Cisco Business 220 Series Managed L2 Gigabit Ethernet Switch CBS220-48FP-4X-EU is a 48-port managed switch that supports Gigabit RJ-45 connections and Power over Ethernet (PoE) to power connected devices. With a switching capacity of 176 Gbit/s, an 8192-entry MAC address table and compliance with common IEEE networking standards, this white Cisco switch is designed to provide reliable, business-class network performance and efficient power management for voice, data and video services.

Advantages

The switch combines managed Layer 2 capabilities with PoE support and 10G uplink options to simplify network operations, increase uptime and centralize device power. Its intuitive dashboard and customizable features allow basic management and monitoring while maintaining compatibility with IEEE standards for predictable interoperability and performance.

Suitable for (tasks / use cases)

• Small and medium business LANs requiring managed switching
• Deployments needing PoE for IP phones, wireless access points and cameras
• Converged networks delivering data, voice and video
• Edge switching with 10G uplinks to aggregation or core

Key specifications

• Model: Cisco CBS220-48FP-4X-EU
• Switch type: Managed L2
• Ports: 48 × Gigabit Ethernet (10/100/1000) RJ-45
• Uplinks: 10G support (4× 10G SFP+ typically)
• Switching capacity: 176 Gbit/s
• MAC address table: 8192 entries
• PoE: Supported (IEEE 802.3af/at)
• Standards: IEEE 802.3x, 802.3u, 802.3af, 802.3ad, 802.3ab, 802.3at, 802.3z, 802.1D, 802.1w, 802.1x
• Colour: White
• Weight: 5.65 kg

How to use

Install the switch in a rack or on a stable surface and connect power. Use the Gigabit RJ-45 ports to connect endpoints such as workstations, IP phones and access points; connect uplink ports to the aggregation layer or core using 10G SFP+ modules where required. Configure basic Layer 2 settings and PoE allocation through the device dashboard or management interface according to your network plan, and verify VLANs, port settings and security policies before putting devices into production.

Recommendations

Place the switch in a temperature-controlled environment with adequate ventilation, use recommended SFP+ modules for 10G links, monitor PoE budget to avoid over-allocation, and keep firmware updated to maintain security and interoperability.
