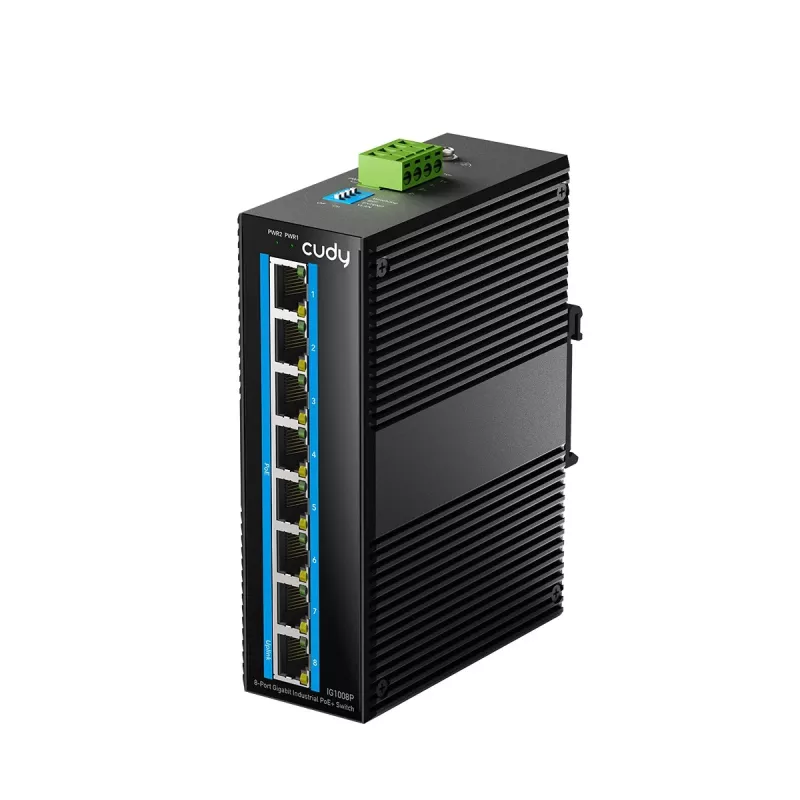

Switch Gigabit Ethernet PoE no gestionado Cudy IG1008P — 8× Gigabit (10/100/1000), PoE, 48–57V, 20 Gbit/s, 8000 MAC, montaje en pared, negro

Description: Industrial 8GbE PoE switch for harsh environments such as manufacturing, transportation, marine, oil and gas, and mining.Resistant to high and low temperatures, surges, and electrostatic discharge (ESD)Built with industrial-grade design and components, the device meets EMC Level 4 standards, providing immunity to surges and electrostatic discharge (ESD) from the power and Ethernet ports. Industrial-grade integrated circuits, along with an additional heatsink, enable stable operation in extreme temperatures and ensure long-term durability.Dual DC inputs. 4457V voltage range.The switch supports two DC inputs (4457V) for additional redundant protection. It also includes reverse polarity and short circuit protection to ensure stable operation in complex power environments.Automatic PoE RecoveryEnable the watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, Watchdog will automatically restart the corresponding PoE port.Broadcast Storm MitigationProtect network bandwidth from unusual broadcast activity, such as ARP attacks. When broadcast packets arrive from a port, the port will automatically shut down.VLAN Isolates Downlink Ports for Enhanced SecurityEnable VLAN mode to prevent client-side intrusions and the leakage of sensitive data. Downlink clients will only be able to communicate with uplink devices. | Switch class: Unmanaged | Application: Home and small office | Network architecture: GigabitEthernet | Number of 10/100 Mbps ports: None | Number of 10/100/1000 Mbps ports: 8 | 10/100/1000/2500 Mbps ports: None | Number of 10Gb ports: None | Number of ports 25Gb: None | Number of PoE ports (PoE & PoE+): None | Number of PoE+ ports: None | Number of COMBO ports: None | Number of SFP ports: None | Number of SFP+ ports: None | Number of SFP56 ports: None | Number of QSFP+ ports: None | Console port: No | Throughput: 16 | Forwarding rate: 11.904 | Memory buffer: 1.5 | MAC address table size: 4096 | Support for Jumbo frames: Yes | Jumbo frame size: 9 | Supported protocols and standards: 802.3at PoE 802.3af PoE 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T 802.3x Flow Control | Chassis type: Rack | Fan: No | Power supply: Internal | Power consumption: 240 | Environment requirements: Operating temperature: -40 - 75°C Storage temperature: -40 - 85°C Operating humidity: 5% - 95% non-condensing Storage humidity: 5% - 95% non-condensing | Power supply: Power Method: DC Power Redundancy: Dual Inputs DC: 44-57V Maximum Power Without PoE: 2.75W Idle Power Consumption: 2.2W Reverse Polarity Protection: Yes Short Circuit Protection: Yes | Dimensions: Device: 47.5 x 103 x 144 mm Mounting space: 47.5 x 147 x 165 mm | Weight: 537 | Data Act: Link

How to use

Mount the switch on a wall or place it in a ventilated location. Connect DC power to the provided power inputs (48–57 V DC); if using redundant supplies, connect both. Plug Ethernet cables into the Gigabit RJ-45 ports; the device will auto-negotiate speed and PoE requirements and supply power to compatible devices automatically. No configuration is required for basic switching and PoE operation.

Recommendations

Use the switch with IEEE 802.3af/at-compatible devices and ensure total PoE draw does not exceed the 240 W budget. For deployments in harsh environments, verify mounting and cabling provide adequate protection and cooling despite the fanless design.
