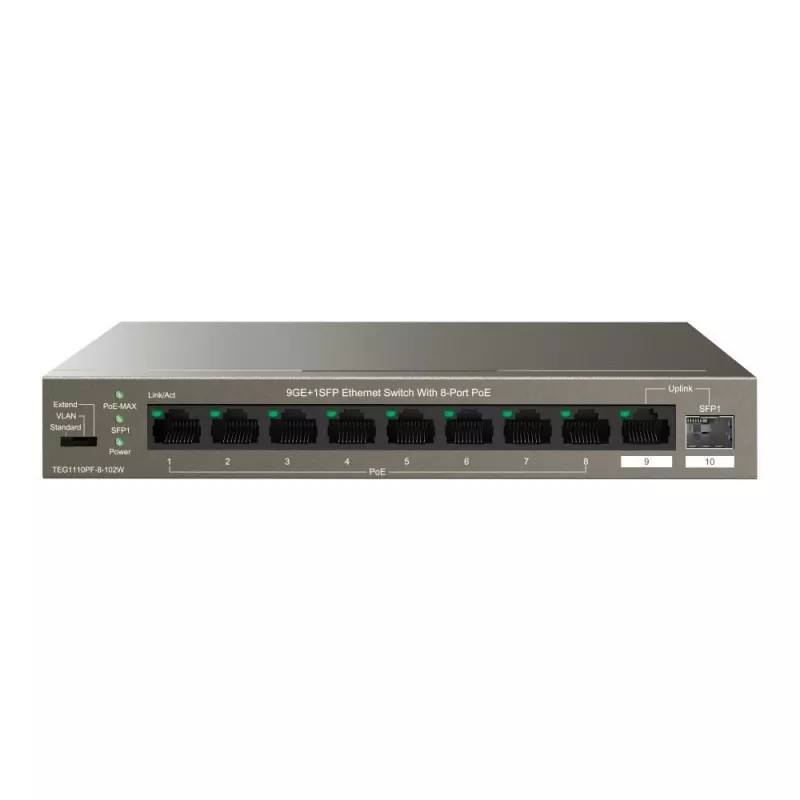

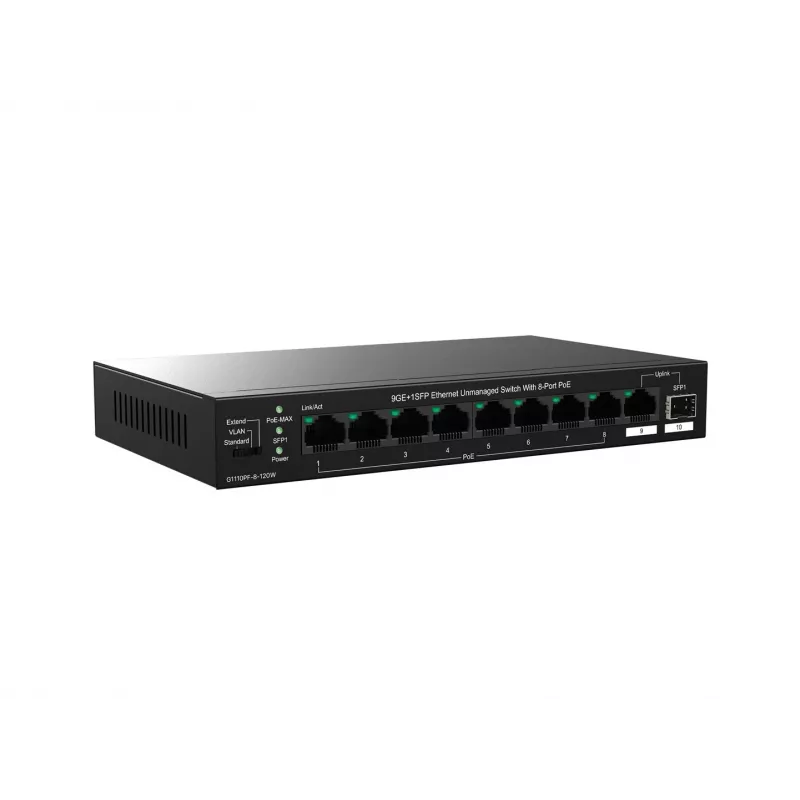

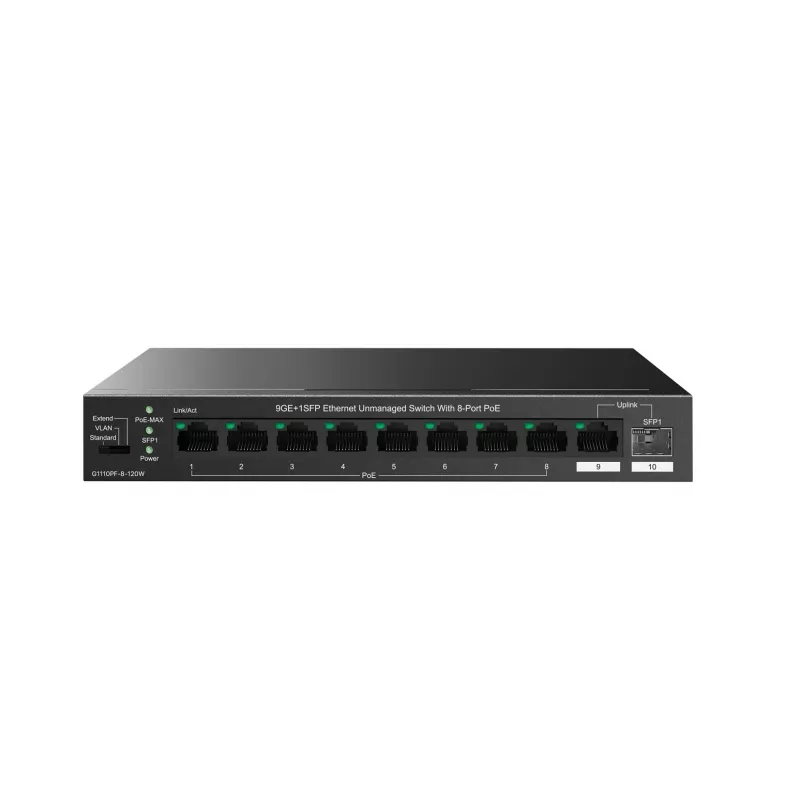

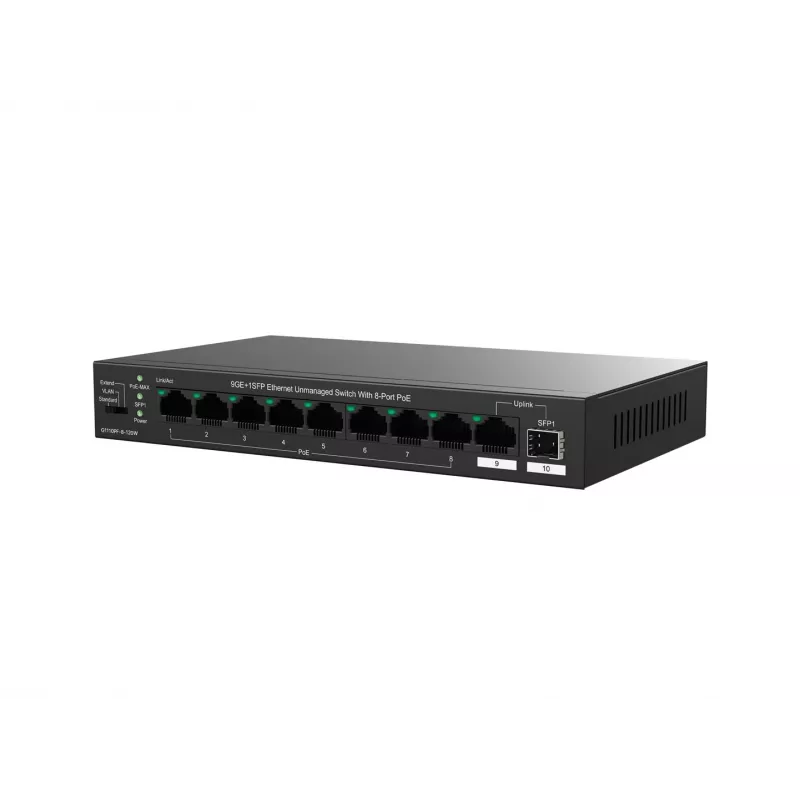

Switch no gestionado Tenda TEG1110PF-8-120W Gigabit Ethernet PoE 9 puertos

TEG1110PF-8-120W is an unmanaged Gigabit Ethernet PoE switch from TENDA with 9 RJ-45 Gigabit ports and a total PoE budget of 120 W. It supports IEEE 802.3af/at PoE standards and can deliver up to 30 W on a single port. The switch has a switching capacity of 20 Gbit/s, an 8000-entry MAC address table, and a compact black metal design suitable for wall mounting.

Advantages

The Tenda TEG1110PF-8-120W provides simultaneous data transmission and power delivery over Ethernet for up to 8 PoE devices, compatible with IEEE 802.3af and 802.3at. With a per-port maximum PoE output of 30 W and a 120 W total power budget, it supports connection of HD PoE cameras and gigabit access points. As an unmanaged switch, it requires no configuration and offers plug-and-play installation, while the 20 Gbit/s switching capacity and 8000 MAC entries ensure stable performance for small and medium networks.

Suitable for (tasks / use cases)

• Video surveillance systems with multiple HD PoE cameras
• Deployment of gigabit wireless access points in small to medium locations
• Small offices, hotels, schools and residential networking
• Wall-mounted installations where compact PoE switching is required

Key specifications

• Ports: 9 x Gigabit RJ-45
• PoE standard: IEEE 802.3af / IEEE 802.3at
• Maximum PoE power per port: 30 W
• Total PoE budget: 120 W
• Switching capacity: 20 Gbit/s
• MAC address table: 8000 entries
• Switch type: Unmanaged
• Product colour: Black
• Mounting: Wall-mountable

How to use

Place the TEG1110PF-8-120W on a stable surface or fix it to a wall using compatible screws and anchors. Connect the switch to your network router or upstream switch using a Gigabit Ethernet cable. Plug PoE-enabled devices (cameras, APs) into the PoE ports; the switch will automatically detect and supply power according to IEEE 802.3af/at standards. No software configuration is required for basic operation—devices should obtain network access and power after connection.

Recommendations

For reliable operation, distribute connected PoE devices so the combined power draw does not exceed the 120 W total budget. When using devices that require up to 30 W per port, limit the number of simultaneously powered ports accordingly. Ensure adequate ventilation and avoid mounting in high-temperature or humid environments to maintain performance and longevity.
